30" x 10' Silverplate w/Raised Flue Pan Set, Same Side Reverse – Bundle

5

30" x 10' Silverplate w/Raised Flue Pan Set, Same Side Reverse – Bundle

SKU: SL-SPRFSSR30120-BUNDLE
PRICE

Original price was: $16,312.00.Current price is: $15,750.45.
AVG. LEAD TIME
This is the estimated/average time required to get this product ready and/or shipped. Please note that timing may be faster when picked up at our Hilbert showroom.

Unparalleled Support

See our Knowledge Base

Distributed by Smoky Lake

Your Partner in Maple

Tested and Approved

Premium Maple Equipment

Tutorials and Tips
5

30" x 10' Silverplate w/Raised Flue Pan Set, Same Side Reverse – Bundle

SKU: SL-SPRFSSR30120-BUNDLE
PRICE

Original price was: $16,312.00.Current price is: $15,750.45.
AVG. LEAD TIME
This is the estimated/average time required to get this product ready and/or shipped. Please note that timing may be faster when picked up at our Hilbert showroom.

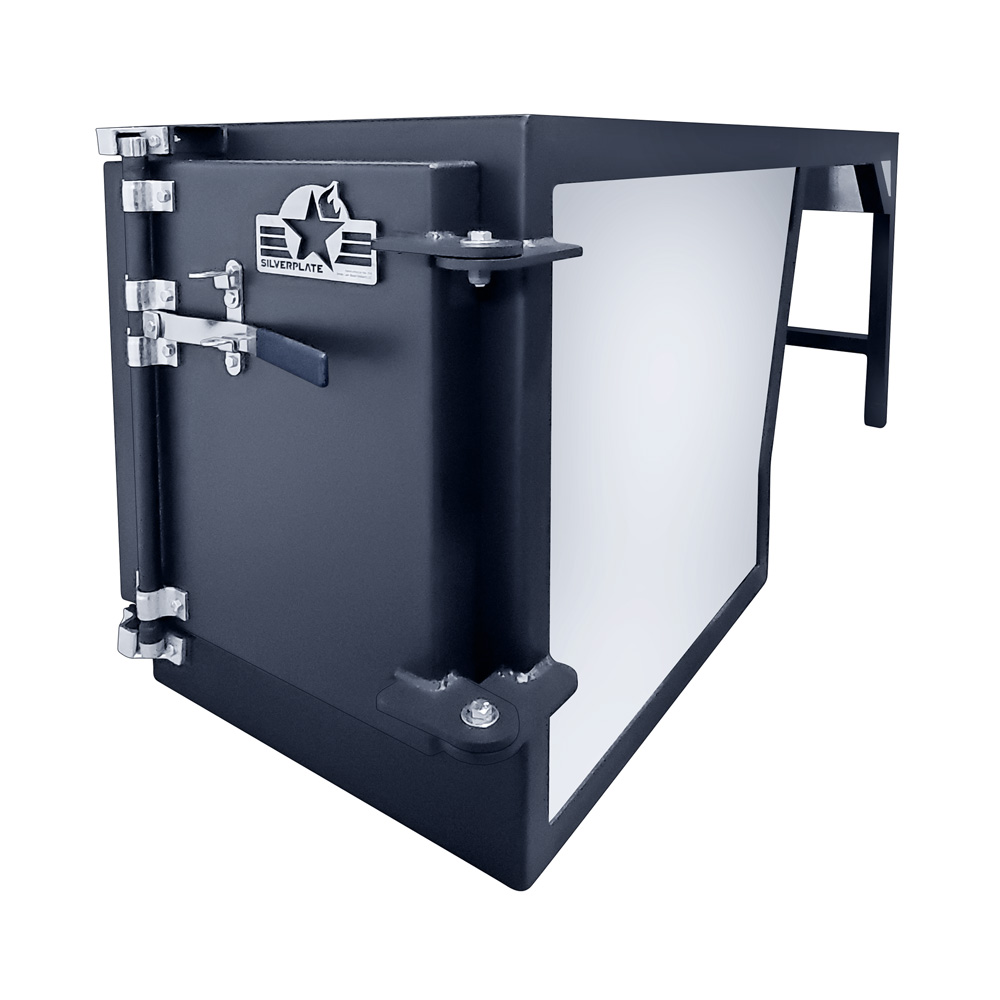

Silverplate Arch SL-SPARCH2472RF

30" x 10' Silverplate Arch (Optimized for Raised Flue)

Arch Specs

    • Footprint = 31-1/2" x 11' 5"
    • Height = 34"
    • Size of Firebox = 30" x 36"
Raised Flue Pan Set with SSR Configuration

Raised Flue Pan Set with SSR, 30" x 10'

Path of Sap

Same Side Reverse System on a Raised Flue Pan Set

Pan Specs

  • Estimated Evaporation Rate = 150+ GPH
  • Flues = Qty 14, 7" tall
  • Front Pan = approx. 30"w x 30"l

Same Side Reverse System

This system enables you to easily reverse the flow in the front pan without ever moving the pan or dealing with plugs. Reversing flow is as simple as swinging the handles of two stainless steel ball valves. Our SSR System is the best in the industry. It is fully cross flow and has only one syrup outlet regardless of flow direction. The Same Side Reverse System (SSR) also works beautifully with the Smoky Lake Auto-Draw-off Systems.

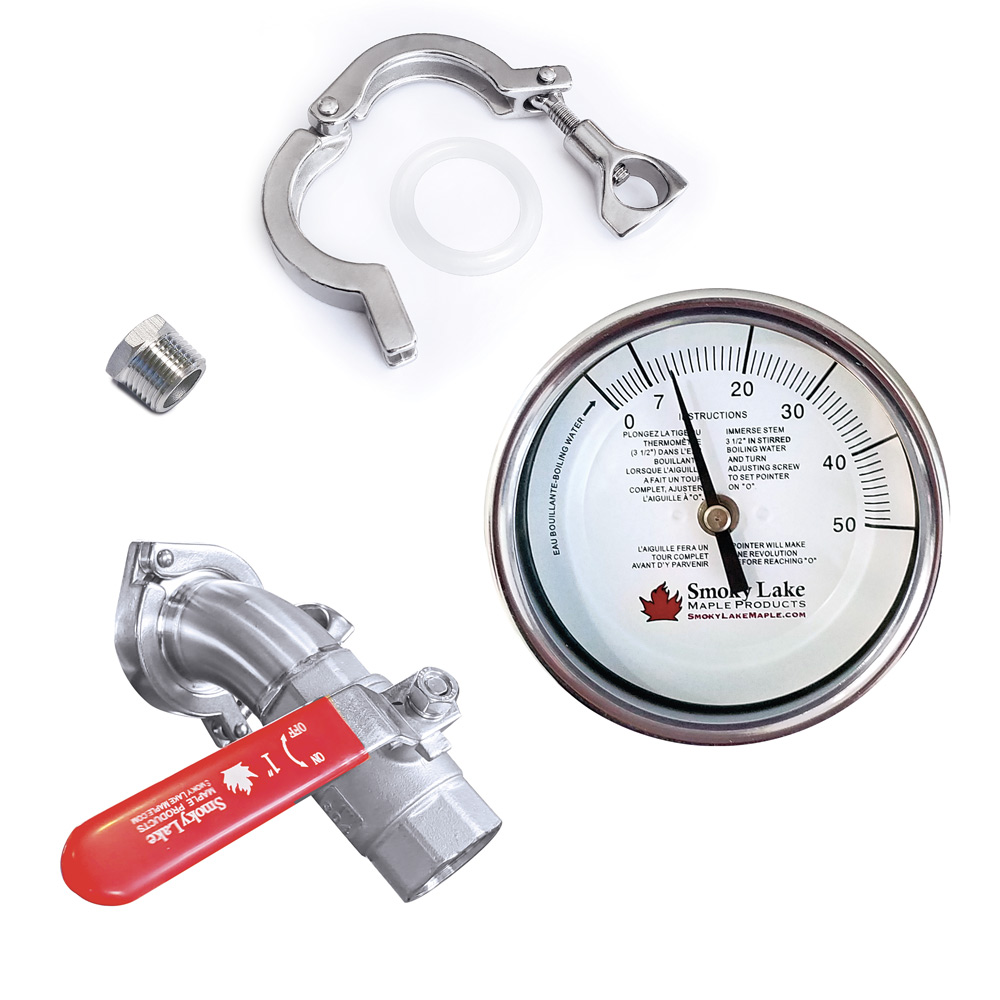

Accessory Kit for a Raised Flue Pan Set with Standard Configuration

Pan Kit (Therm, Draw-Off Valve, 10 Clamps, 12 Clamp Gaskets, 3 Plugs, 2 Transfer Pipes, SSR Manifold & Brace)

Included with the Pan Set.

Inlet Float Box, Dual Compartment (For 30"-Wide Pan Sets, SSR)

Included with every Pan Set.

Regulates sap depth in the Flue Pan.

Select options for the drain port below.

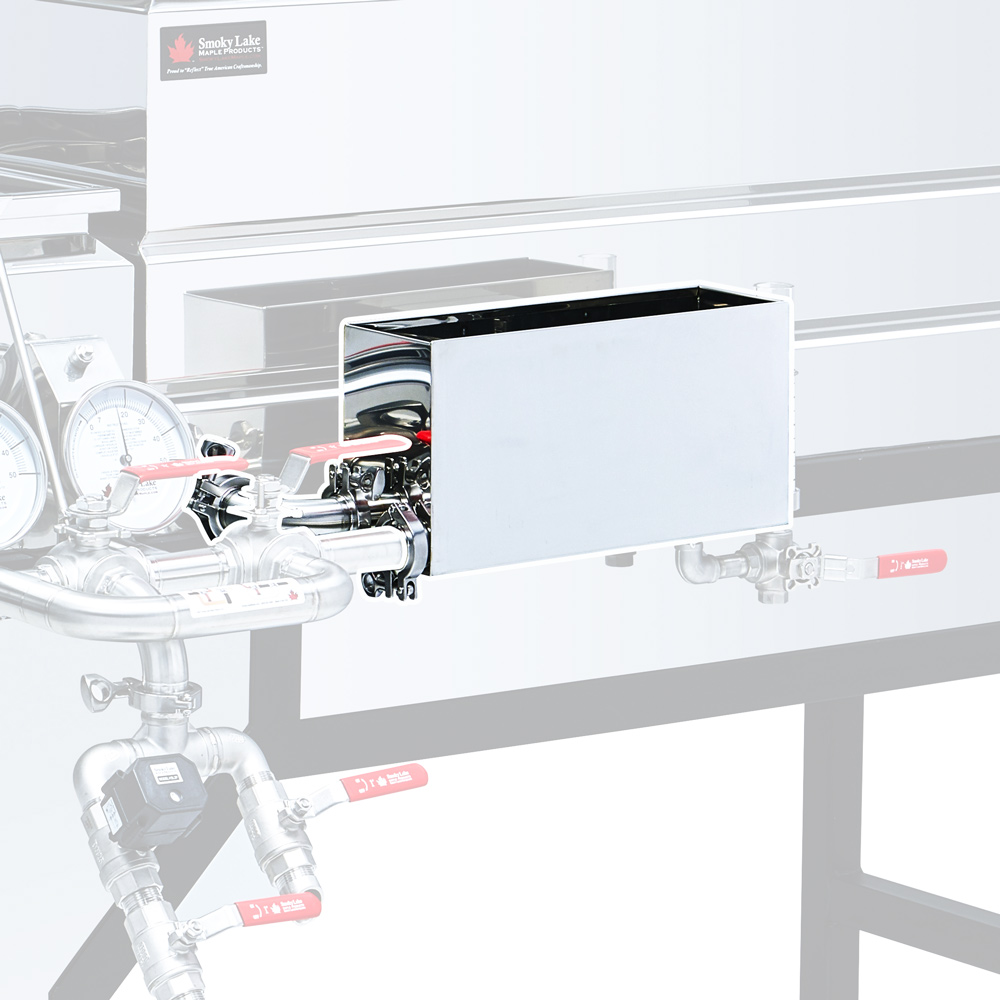

Transfer Float Box for a Raised Flue Pan Set with SSR

Transfer Float Box (For a Raised Flue Pan Set, SSR Config)

Included with every Pan Set.

Regulates sap depth in the Front Pan.

Select options for the drain port below.

The blower gets mounted on the back of the firebox

Forced Draft Kit: FIVE Domed Cast Iron Grates (31-1/2" Length Each) + Professional Blower + Hardware

This kit will create about 20% greater fuel efficiency and up to 50% more productivity compared to natural draft.

INCLUDES

  • FIVE Domed Cast Iron Grates, 31-1/2" length
    (Enhances air turbulence and combustion)
  • Professional, Dual-Speed Blower
    (Cord not included)
Base Stack

Stainless Steel Base Stack, 12" Diameter

Stainless Steel Stack Pipe, 2-Ft Section, Various Diameters

Stack Pipe, Stainless Steel, 2' length, 12" diameter × 5

Precut Brick Kit

Silverplate Brick Kit (Precut Bricks)

Protects the ceramic blanket insulation in your firebox. Precut and ready to go. Installation guide included.

High Temperature Mortar

Brick Batter (High Temp Arch Mortar) × 2

Included FREE with purchase of this evaporator.

50 square feet of ceramic blanket insulation

Ceramic Blanket Insulation (10' Length)

Ceramic Blanket protects your evaporator from extreme heat.

The belly and the door of your Silverplate will be factory insulated. This additional insulation is provided for the side walls and can be installed on-site.

Stiffened Gasket

Stiffened Gasket, 30 Inch × 2

Included with every Pan Set.

Increases efficiency by sealing any air gap behind each pan.

Rail Gasket - 50 feet long x 2 inches wide

Precut Rail Gasket Set, 30" x 10'

FREE Bonus Accessory Included with Purchase of the Full Evaporator.

Increases efficiency by sealing any air gap between the top of the Arch and the bottom of the Pan.
