Silverplate Arch (Without Pan) – Customize It!

FROM $5,650.00

5

Silverplate Arch (Without Pan) – Customize It!

SKU: SL-SPARCH

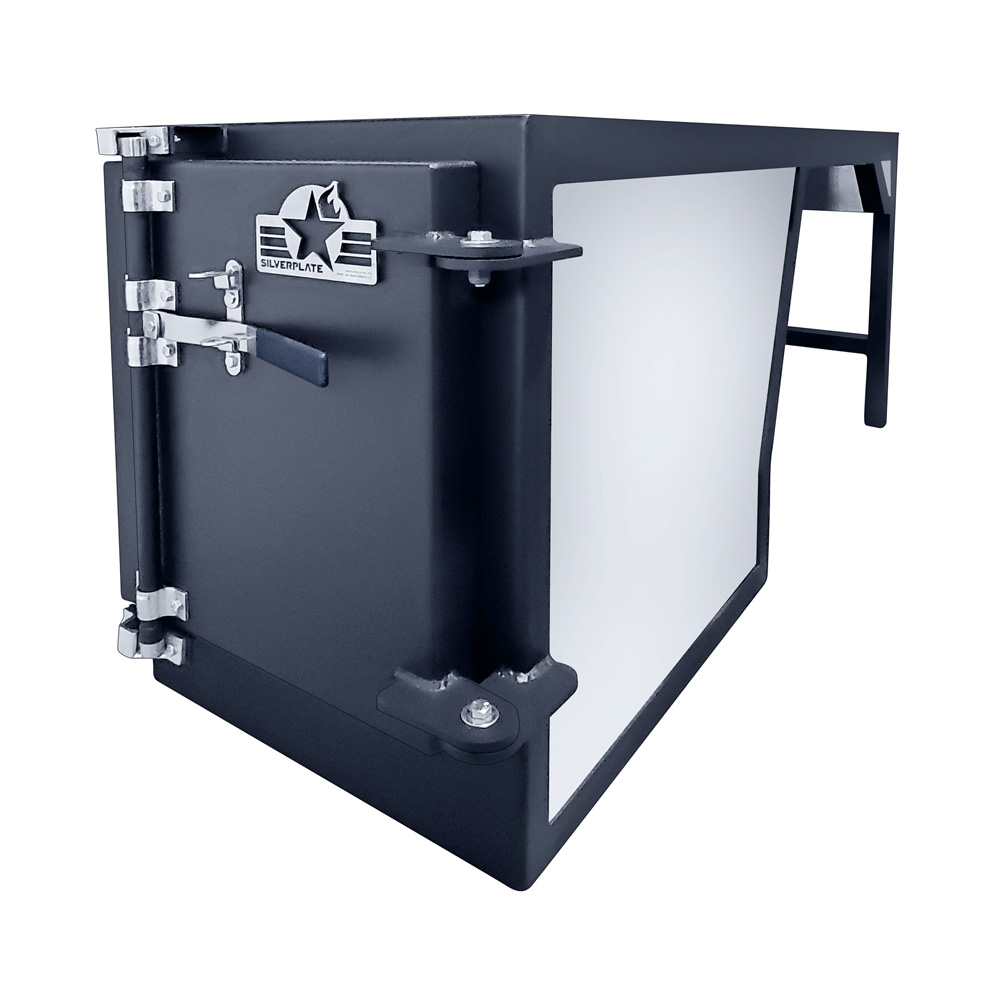

Silverplate Arch SL-SPARCH2472RF

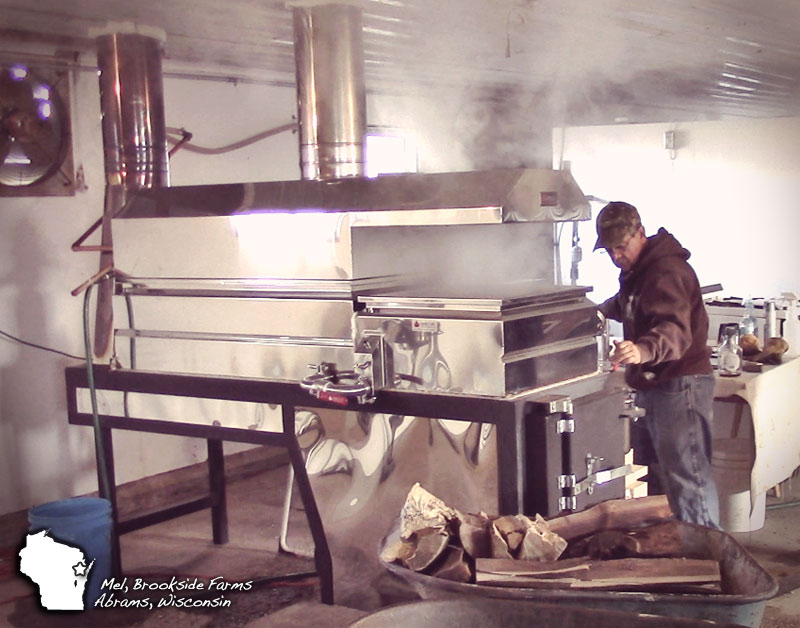

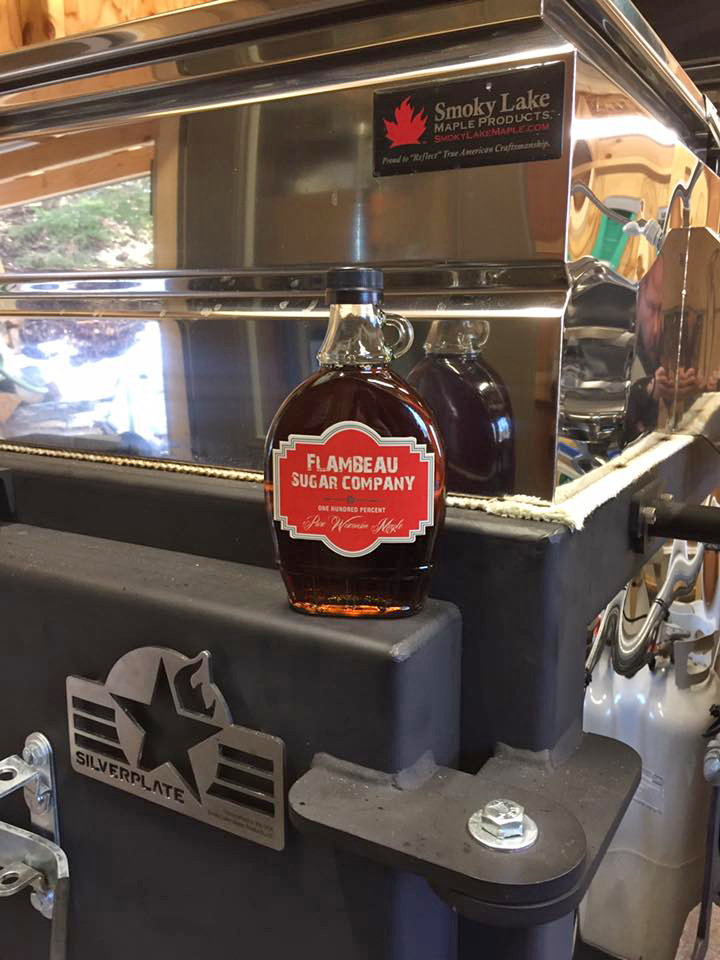

Silverplate Arch SL-SPARCH2472RF Mel from Brookside Farms Rob Forrest, Rockford, Michigan Maple Syrup by Flambeau made on a Silverplate Evaporator After running the evaporator hard for 3 hours, there were very few ashes left in the firebox. The 'holes' in the ashes indicate locations where air had been injected by the blowers.
STARTING AT

From: $5,650.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Shopping for your first evaporator?

Unparalleled Support

Distributed by Smoky Lake

Your Partner in Maple

Tested and Approved

Premium Maple Equipment

Description

The Silverplate Evaporator is a tested and proven design built by Smoky Lake Maple Products, LLC of Hilbert, Wisconsin. The fully insulated, airtight, stainless steel arch makes good use of the high efficiency pans that Smoky Lake is known for.

Why an airtight arch?

An airtight door with dual-point latch system ensures that no cold air will be pulled into the arch, which would then be pulled across the floor of the pans, negatively affecting evaporation rates. Also, with the amount of air being forced into the combustion chamber from the built-in blowers, the airtight door keeps the operator safe from sparks and embers.

Why stainless steel arch sides?

Stainless steel adds both beauty and longevity to your investment. Stainless steel is resistant to rust and can withstand extreme heat far better than any galvanized steel.

Why domed cast iron grates?

All Silverplate evaporators include high performance blowers and therefore they are equipped with specialized cast iron grates to optimize the air flow. Cast iron, as a material, does not have a fiber body. Therefore when heated it has no tendency to warp. The perforations are placed in a way to create the most turbulence within the firebox. Remember the 3 “T”s of combustion: Time, Temperature and TURBULENCE.

SIZING

Popular SizesActual FootprintSize of Firebox
2′ x 6′25-1/2″ x 7′ 5″2′ x 30″
2′ x 8′25-1/2″ x 9′ 5″2′ x 30″
30″ x 8′31-1/2″ x 9′ 5″30″ x 36″
30″ x 10′31-1/2″ x 11′ 5″30″ x 36″

NOTE: The “Popular Sizes” listed above refer to the pan size that each arch is designed for. For example, our 2′ x 6′ Silverplate Arch accommodates a 2′ x 6′ pan, but its actual width x length (footprint) is 25-1/2″ x 7’5″. All Silverplate arches stand 34″ tall.



Discounts

A Full Silverplate Evaporator is discounted for bundling a pan and arch together. Full Silverplate Evaporators also receive a Free Rail Gasket and Stiffened Gasket(s) at no extra charge. Bundling discounts on accessories are available as advertised on this page.

Value-Added Details

Silverplate Evaporator Arch

  • Stainless Steel Arch Sides, Base Stack and Stack Pipe
  • Leg Leveling Bolts
  • Fully insulated door with two-point closure system
  • Forced Draft System with upgraded blower and domed grates
  • Precut Brick Kit included
  • Premixed High Temp Mortar included
  • Factory insulated belly with additional insulation provided for sides
  • Rectangular base stack hub optimizes flow of heat

Handcrafted by Artisans in Wisconsin

Shipping Details

Free Shipping in the Continental USA

This is a freight item. Most often this will travel with a white glove carrier.

Tutorials and Tips

5

Silverplate Arch (Without Pan) – Customize It!

SKU: SL-SPARCH
STARTING AT

From: $5,650.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Shopping for your first evaporator?


This beautiful, mirror finish evaporator boasts superior fuel efficiency and unrivaled evaporation rates. Handcrafted by the Smoky Lake team in Northeastern Wisconsin.

Description

The Silverplate Evaporator is a tested and proven design built by Smoky Lake Maple Products, LLC of Hilbert, Wisconsin. The fully insulated, airtight, stainless steel arch makes good use of the high efficiency pans that Smoky Lake is known for.

Why an airtight arch?

An airtight door with dual-point latch system ensures that no cold air will be pulled into the arch, which would then be pulled across the floor of the pans, negatively affecting evaporation rates. Also, with the amount of air being forced into the combustion chamber from the built-in blowers, the airtight door keeps the operator safe from sparks and embers.

Why stainless steel arch sides?

Stainless steel adds both beauty and longevity to your investment. Stainless steel is resistant to rust and can withstand extreme heat far better than any galvanized steel.

Why domed cast iron grates?

All Silverplate evaporators include high performance blowers and therefore they are equipped with specialized cast iron grates to optimize the air flow. Cast iron, as a material, does not have a fiber body. Therefore when heated it has no tendency to warp. The perforations are placed in a way to create the most turbulence within the firebox. Remember the 3 “T”s of combustion: Time, Temperature and TURBULENCE.

SIZING

Popular SizesActual FootprintSize of Firebox
2′ x 6′25-1/2″ x 7′ 5″2′ x 30″
2′ x 8′25-1/2″ x 9′ 5″2′ x 30″
30″ x 8′31-1/2″ x 9′ 5″30″ x 36″
30″ x 10′31-1/2″ x 11′ 5″30″ x 36″

NOTE: The “Popular Sizes” listed above refer to the pan size that each arch is designed for. For example, our 2′ x 6′ Silverplate Arch accommodates a 2′ x 6′ pan, but its actual width x length (footprint) is 25-1/2″ x 7’5″. All Silverplate arches stand 34″ tall.



Discounts

A Full Silverplate Evaporator is discounted for bundling a pan and arch together. Full Silverplate Evaporators also receive a Free Rail Gasket and Stiffened Gasket(s) at no extra charge. Bundling discounts on accessories are available as advertised on this page.

Value-Added Details

Silverplate Evaporator Arch

  • Stainless Steel Arch Sides, Base Stack and Stack Pipe
  • Leg Leveling Bolts
  • Fully insulated door with two-point closure system
  • Forced Draft System with upgraded blower and domed grates
  • Precut Brick Kit included
  • Premixed High Temp Mortar included
  • Factory insulated belly with additional insulation provided for sides
  • Rectangular base stack hub optimizes flow of heat

Handcrafted by Artisans in Wisconsin

Shipping Details

Free Shipping in the Continental USA

This is a freight item. Most often this will travel with a white glove carrier.

Tutorials and Tips
