Divide and Conquer – Divided Pan by Smoky Lake

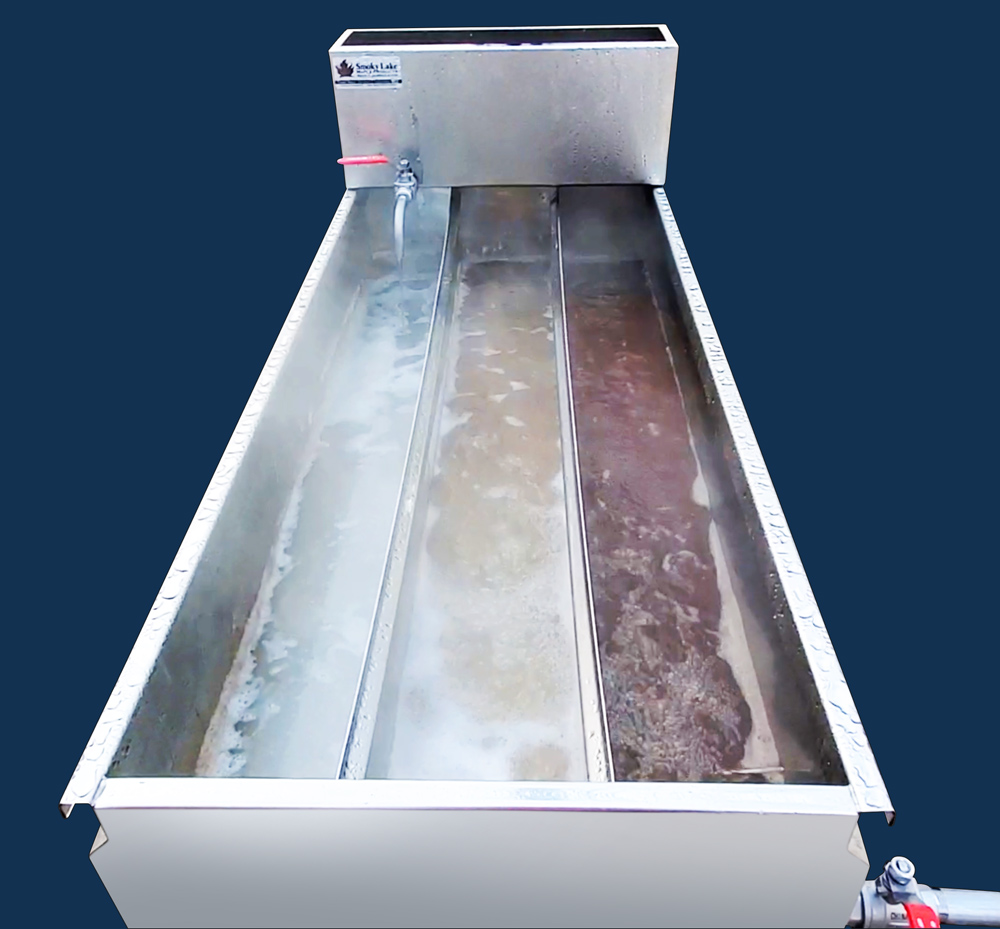

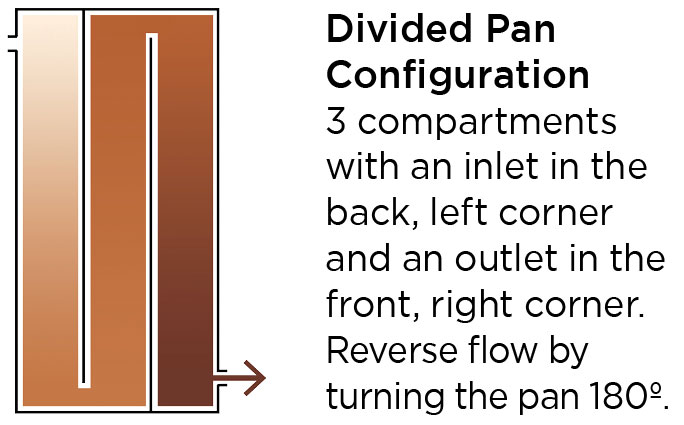

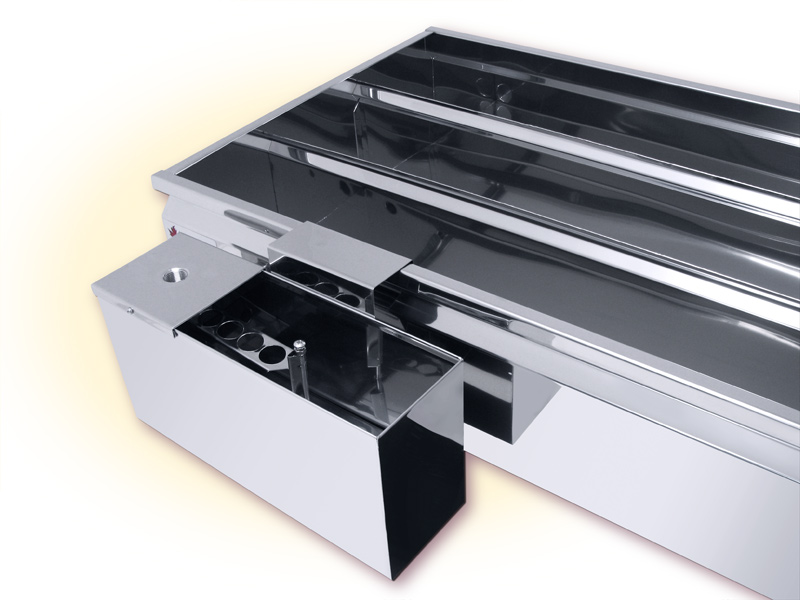

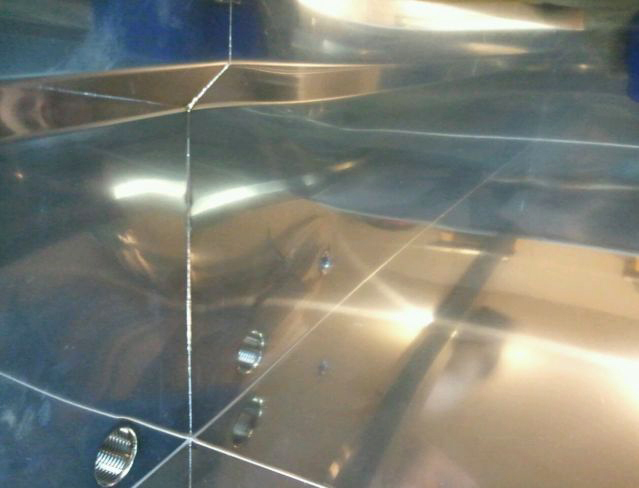

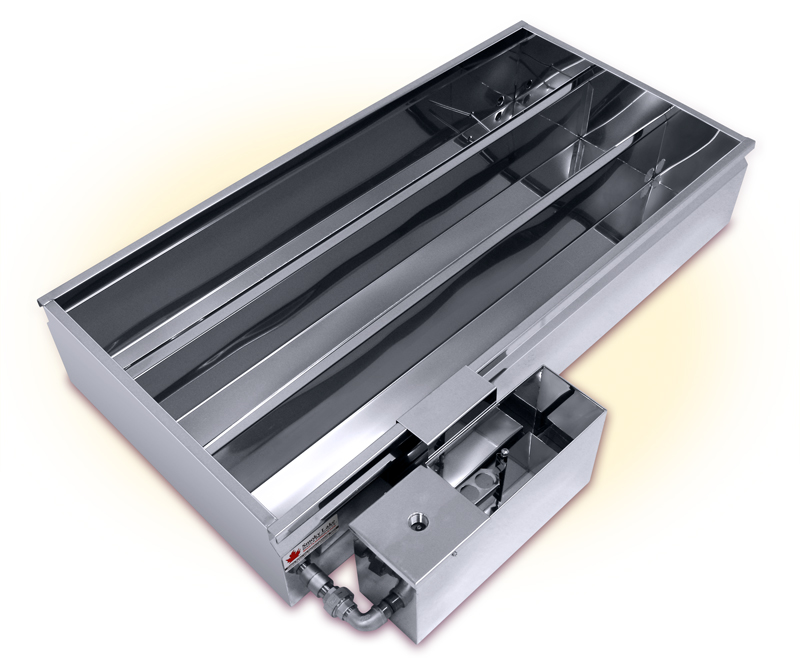

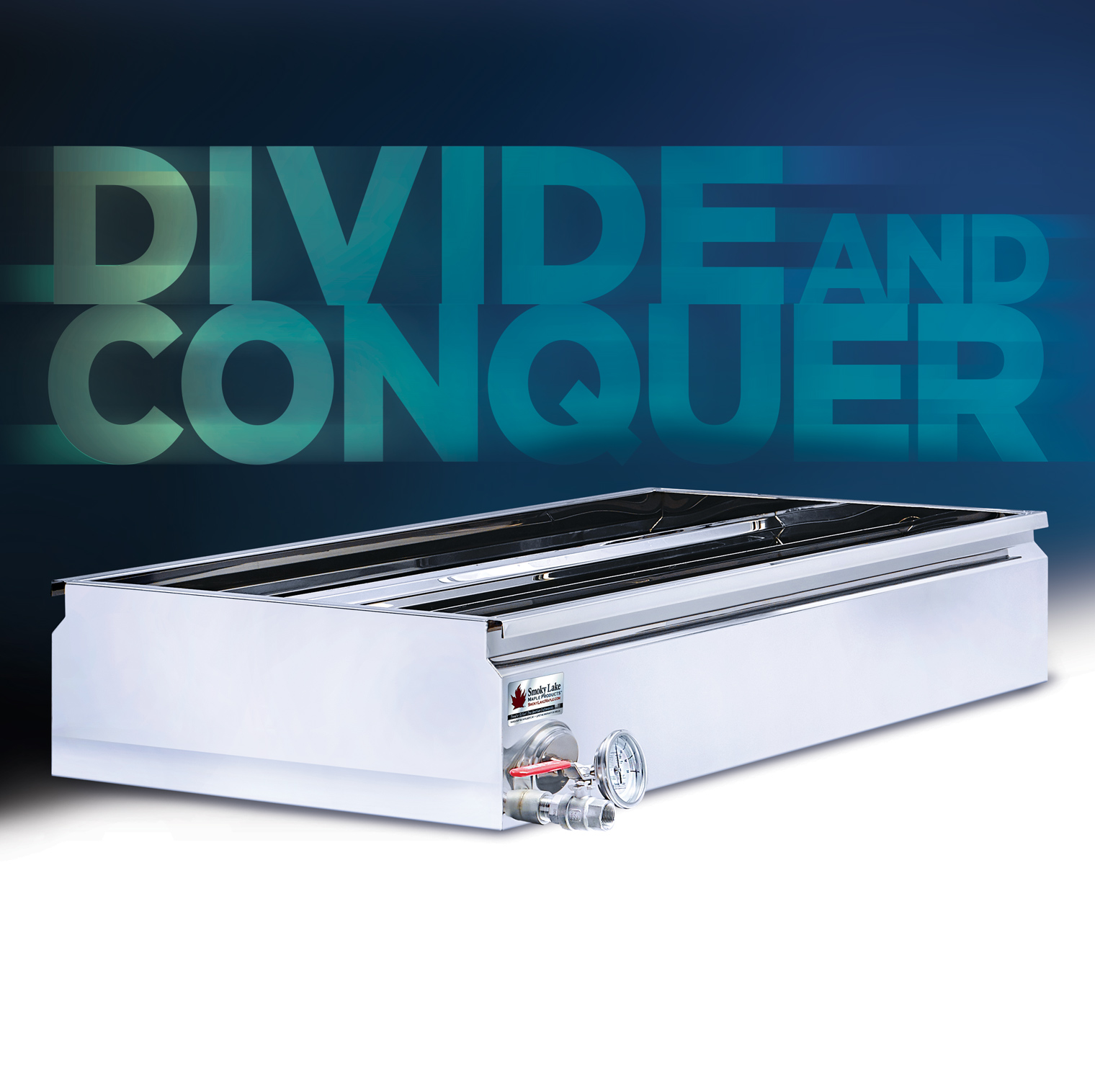

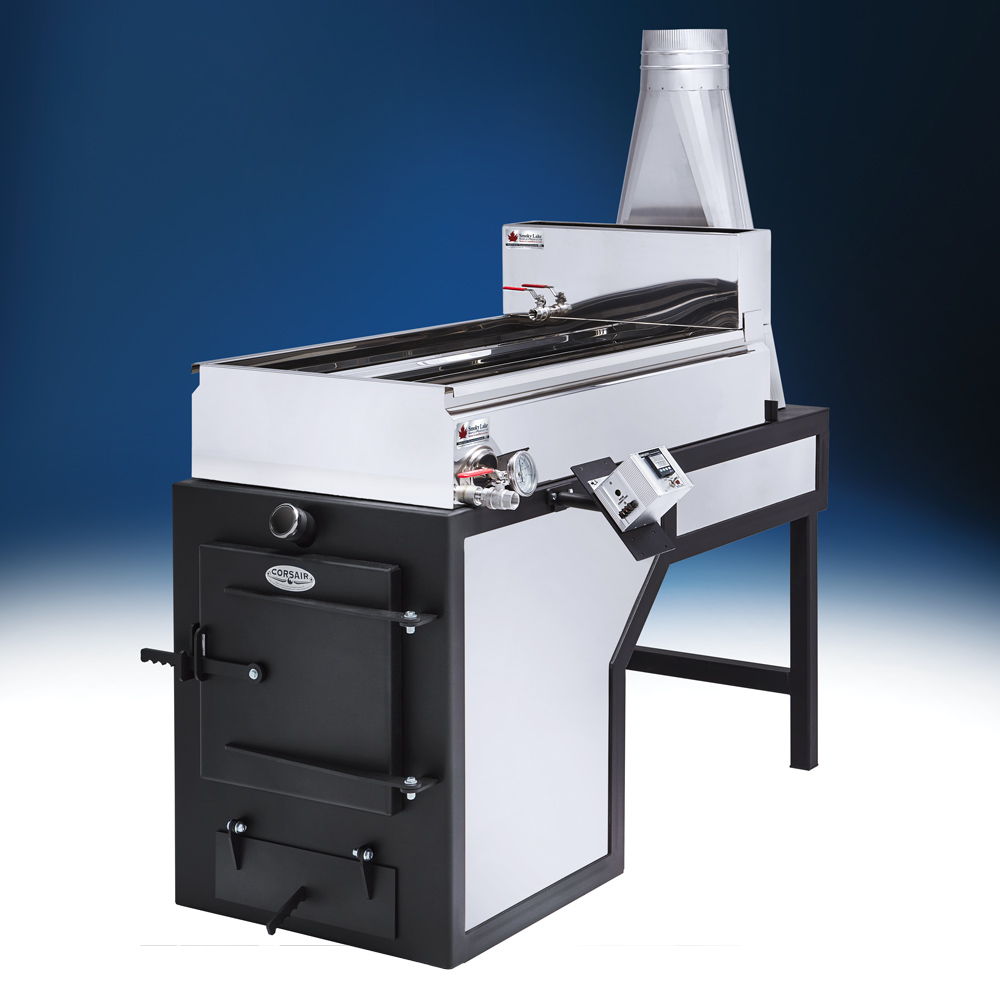

360 Divide and Conquer – Divided Pan by Smoky Lake Path of Sap Flow in a Divided Pan Welds inside of the Flat Pan Divided Flat Pan Divided Flat Pan with Optional Float Box Divided Flat Pan with Optional Float Box Corsair Evaporator with Divided Pan, Feed Pan and Auto Draw Off System Great example of a "gradient" in a continuous flow pan. The sap closest to the draw off is the most condensed. Jim Schumacher with a Dauntless Evaporator with Divided Pan

Divided Pan – Customize It!

(5 customer reviews)

From: $565.00

Free Shipping in USA. Contact us for discounted Canada Shipping.

Bundle Pricing Available. See Discounts Below.

This is a handcrafted item made just for you!

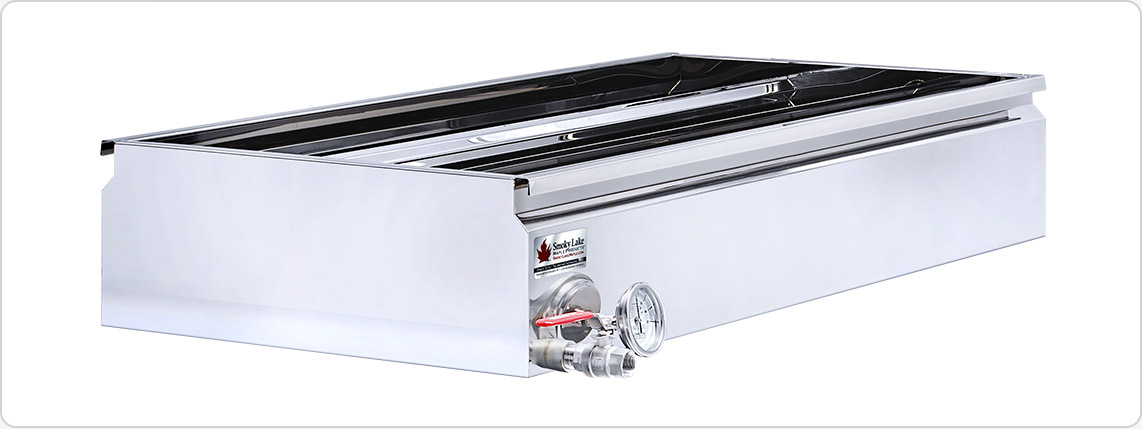

Smoky Lake offers many standard sizes of premium grade, mirror finish stainless steel divided flat pans (also known as “Continuous Flow” Pans). We also offer a 2′ x 33″ size which fits a Leader Half Pint Arch.

Divided Pan with Call Outs

Every Smoky Lake Divided Pan Includes

    • Stainless Steel Ball Valve w/Nipple
      (Food Grade. Easy-grip handle. NEVER nickel plated.)

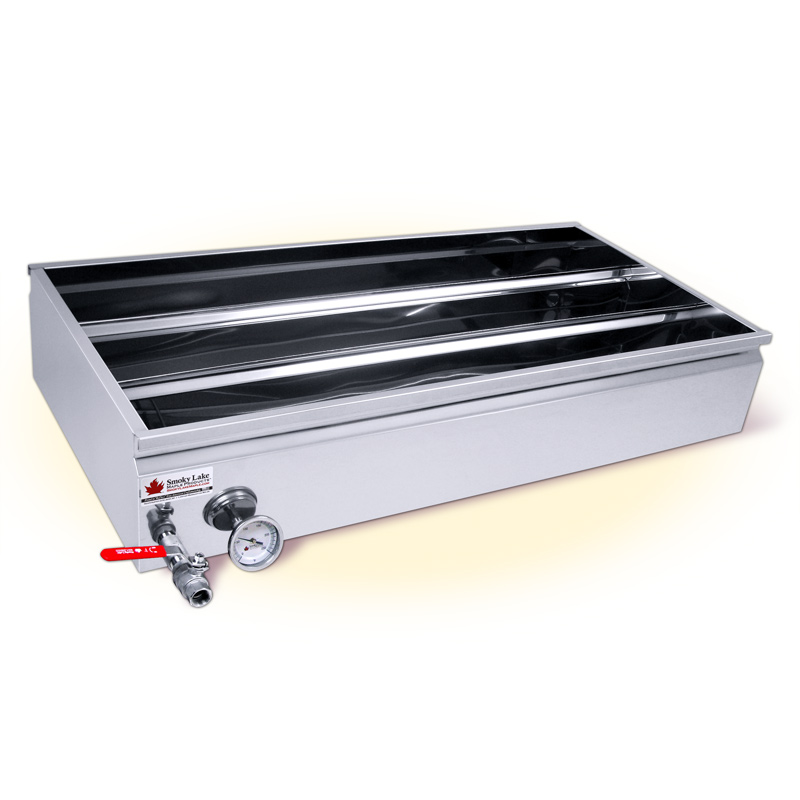

    • Angled Port w/Maple Thermometer
      (3″ dial, 6″ stem, 0–50 Scale)
    • Level Assist Feature
      Available exclusively from Smoky Lake Maple Products. This 2″ fill line helps you level the pan before boiling.
    • Built-in, Full Length Handles
      Smooth, hemmed Edges
    • Structurally Formed-In Dividers
      Never tacked to the bottom of the pan
    • Plugs for Open Ports
      Not visible in this photo. Plugs are used for the Sap Inlet Port and the second Thermometer Port.
    • Instruction guide for using a Divided Evaporator Pan
    • Lifetime Limited Warranty on TIG Welds
    • Reversible Flow
      Helps eliminate sugar sand build up. Learn More.
    • Handcrafted in Hilbert, Wisc.

CUSTOMIZE THIS PAN

Description

Smoky Make Maple Products is the Midwest’s leader in premium maple syrup production equipment. We offer the highest quality, most efficient flat pans in the world.

FAQINSTRUCTION GUIDE

FEATURES & BENEFITS

  • Level Assist: The end panels of this pan are marked 2″ from the floor of the pan. These lines will help you level your pan/evaporator before boiling without the need for any other tools. You can also use the 2″ lines to easily determine the appropriate sap depth before you start boiling. This is a unique feature available only from Smoky Lake.
  • Reverse Flow: This divided pan has two draw off ports and thermometer ports. Each is located in opposite corners of the pan which allows the pan to be reversible.
  • Full Length Handles: The sides are hemmed and contoured offering superior strength and full length handles.
  • Efficiency: The material used to construct these pans is 22 ga mirror finish stainless steel. Many competitors use thicker stainless which is a poor conductor of heat and requires more time to get up to boiling temperature.
  • Continuous Flow: The dividers on this pan are formed right into the pan body. NO SOLDERING. This makes the pan incredibly strong and helps eliminate possibility of leaking underneath the dividers. Ask competitors to show pictures of how they install dividers.
  • Every shipment is guaranteed and INSURED. We have custom, double reinforced, foam lined, cardboard crates made for each of our pans. We treat these pans during transit as the works of art that they are.

MANY ADD-ON ACCESSORIES AVAILABLE

  • Feed Pan with Clips Close Up

    Feed Pans

    $215.00$265.00
  • Sight Glass Connected to Draw-Off Port

    Deluxe Sight Glass for Draw-Off Port (3/4″ fittings)

    $175.00

Additional information

Width x Length x Height

16" x 30" x 7.5" (AKA StarCat), 2' x 2' x 8.5", 2' x 3' x 8.5", 2' x 33" x 8.5" (fits Leader Half Pint Arch), 20" x 4' x 8.5" (AKA Dauntless), 2' x 4' x 8.5", 2' x 5' x 8.5", 2' x 6' x 8.5"

5 reviews for Divided Pan – Customize It!

  1. Adam

    Our new 2’ x 6’ divided pan arrived yesterday. Had to wait a while for it to arrive but the wait was well worth it! The quality and craftsmanship is astounding. Can’t wait to fire up the arch and get boiling with the new pan in the coming days. Thanks to everyone at Smoky Lake – Responsive and kind customer service.

  2. Adam

    Beautiful craftsmanship, not a flaw anywhere. Very happy with it so far. Will likely buy another Smoky Lake pan next year if we scale up.

  3. Dylan Chagnon

    Great pan! Beautiful mirror finish and As described in there videos have no welds inside the pan gives it a smooth boiling surface and very easy to keep clean. I have the 2×5 divided pan and found when boiling the dividers have a tendency to bow inward a little at the very top and when cooled down they go right back to straight, probably because of my fire placement in the box. The reverse flow work well and the pan is light enough to move by yourself if needed. It helps to purchase the sight glass I found that out during the test boil and much easier to prevent your pan from burning or scorching the sweet. The feed pan is very convenient and nicely made worth the extra dollars so go for it! Being in vt i have access to 4 major vendors ans none compared to the friendly staff and there ability to make high quality equipment at affordable prices for the backyard sugar makers. Well worth the money I plan on purchasing a bigger setup in the near future.

  4. Jon Lipstreuer

    Smoky Lake provided me with a divided pan, feeder pan and float box. Angela went beyond the call of duty in helping me determine the proper set up. She and Jim, along with the team they’ve put together are extremely knowledgeable and provide an excellent product line. Craftsman ship is impeccable.

    As a hobbyist, I highly recommend Smoky Lake.

    • Angela

      Thank you so much!

  5. hope4thepride

    So glad I spent the little bit extra and got this divided pan – drawing off finished syrup while being able to add fresh sap at the same time is nothing short of magic! A wonderful upgrade from a flat pan, but a great price point for anyone that does not require the maximum output that would otherwise require a flu-pan. The quality of craftsmanship is unsurprising for a Smoky Lake product, but truly next-level when compared with (most of) the alternatives. Beautiful product that makes beautiful syrup!

    • Angela

      Thank you very much for the feedback. Yes, I agree that it’s so nice to be able to draw off finished syrup.
