14/20 Concentric Exhaust System (14" Smoke Pipe)

PRICE $2,390.00

5

14/20 Concentric Exhaust System (14" Smoke Pipe)

SKU: SL-CES1420

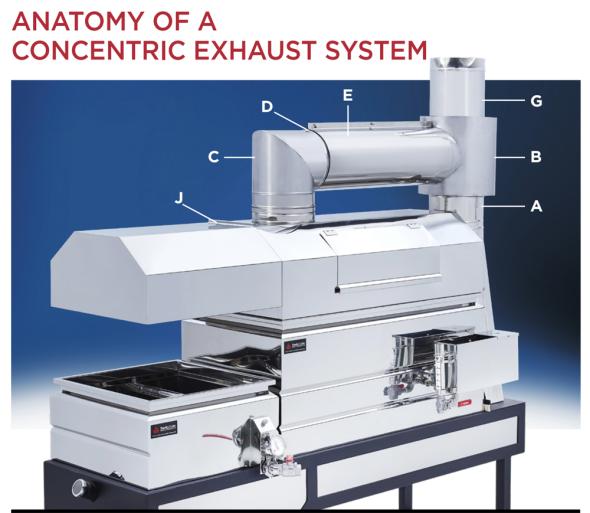

anatomy of a Concentric Exhaust System SL-CES

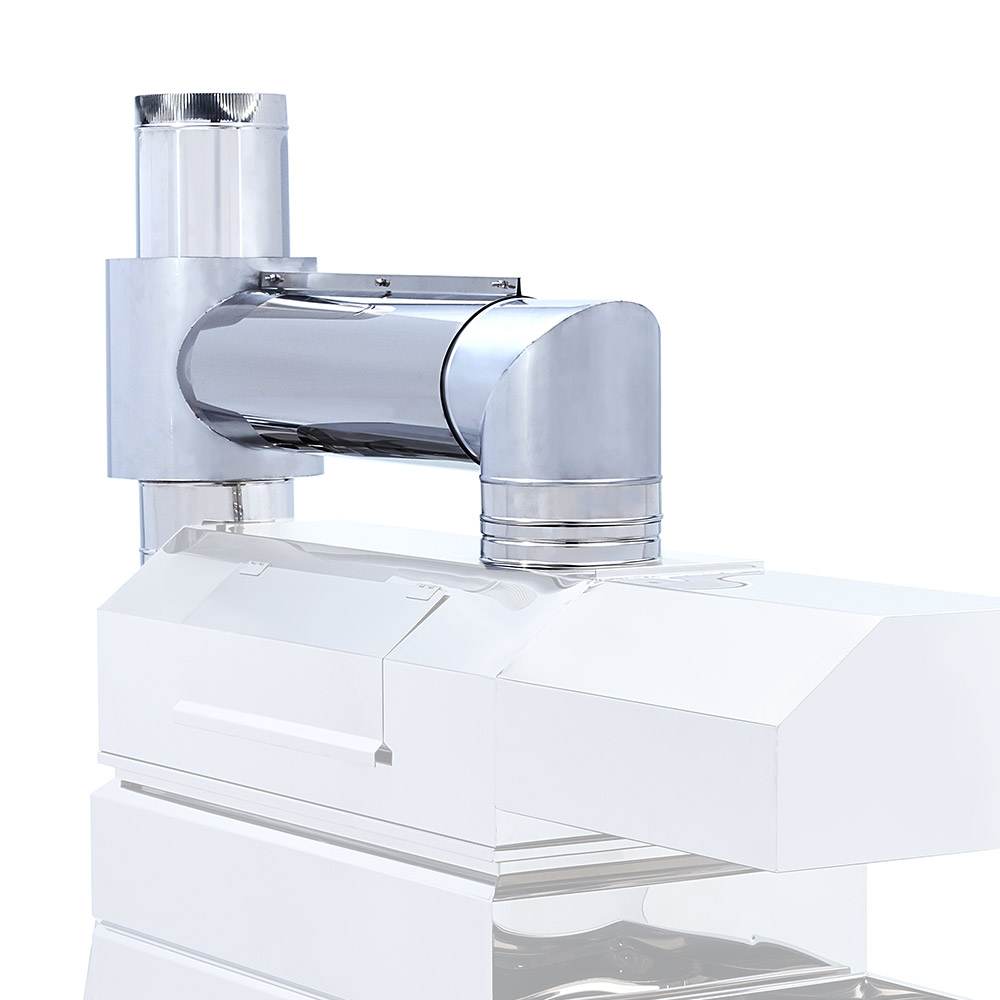

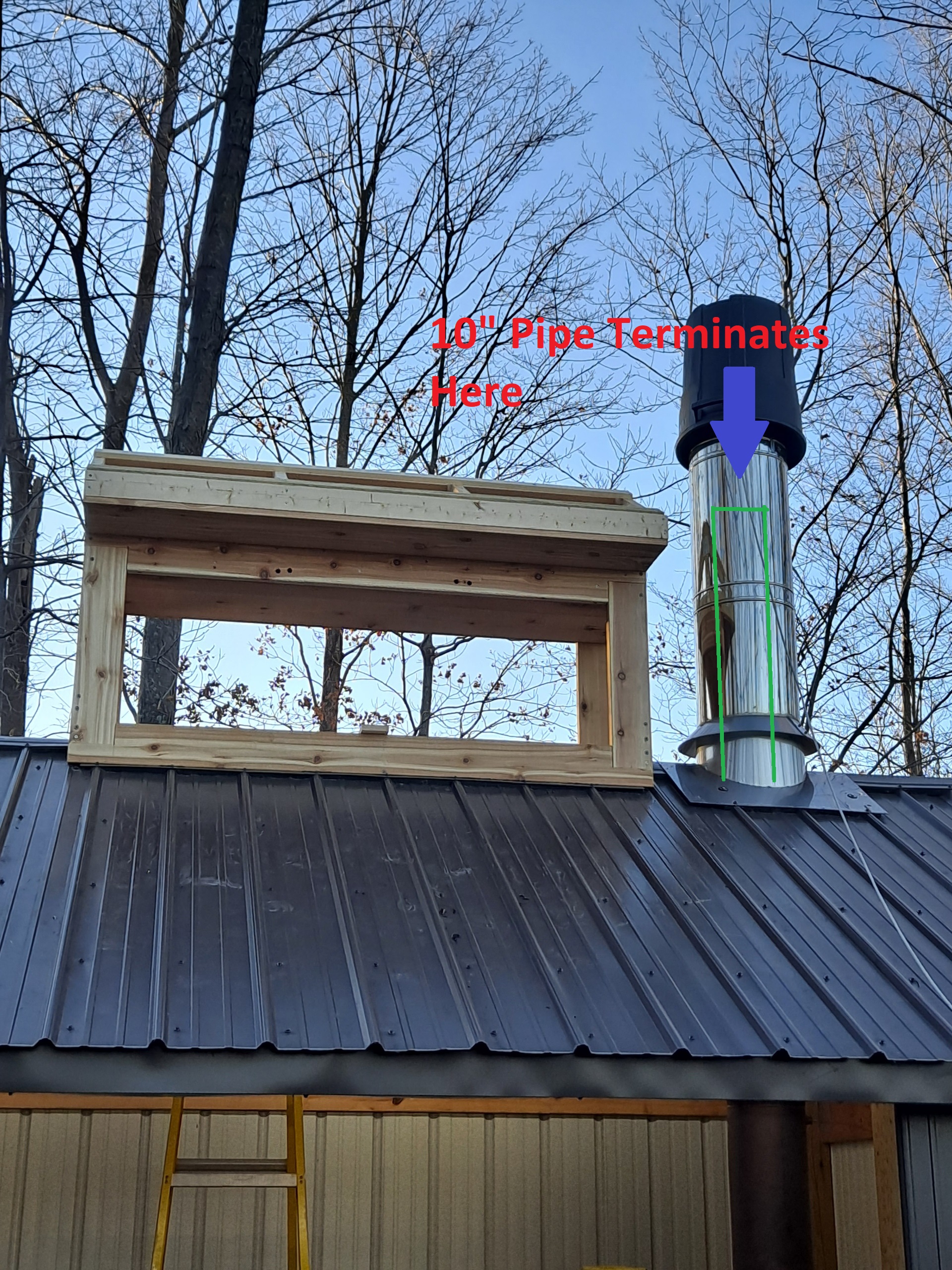

Category - Concentric Exhaust Systems Concentric Exhaust System, Customer Photo Concentric or Double Wall Exhaust. Leave room for mixing.
STARTING AT

From: $2,390.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Free Shipping

In Continental USA

Limited Lifetime Warranty

On TIG Welds

icon1.svg

Handcrafted

In the USA

Description

CONCENTRIC SYSTEM ANATOMY

  • Riser
  • Tee with Drain Port
  • Stainless Steel 90º Elbow (attaches to hood)
  • O-Ring Gaskets, Qty 2
  • Strap Stack w/Hardware (connects the “Tee” and the 90º Elbow)
  • Concentric Fins (Keeps the smoke stack centered within the steam stack. Not visible in the feature photo.)
  • Smoke Pipe (Available a la carte.)
  • Steam Pipe (Not shown in feature photo. Orders placed after 8/30/23 will automatically include one 2-foot long starter piece. Additional pipe is available a la carte.)
  • Stainless Steel Roof Jack w/Collar (Sold Separately. Not visible in feature photo.)
  • Smoky Lake Fitted Hood (Sold separately. The Concentric Exhaust is not compatible with suspended hoods nor competitor hoods.)

BENEFITS
  • Steam Pipe insulates the Smoke Pipe and allows for 3" clearance from combustibles
  • Dramatically increased natural draw in Steam Pipe
  • Hot embers are extinguished by the steam when they reach open air
  • Requires only ONE roof penetration
    • Reduces risk of roof leaks
    • Reduces potential roof jams
  • Cost is comparable to other systems
  • Easier hood removal on your evaporator
  • Condensation drain
    • Evacuates both condensation and rain
    • Prevents rust from developing in your arch

Tutorials and Tips

5

14/20 Concentric Exhaust System (14" Smoke Pipe)

SKU: SL-CES1420
STARTING AT

From: $2,390.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Part List

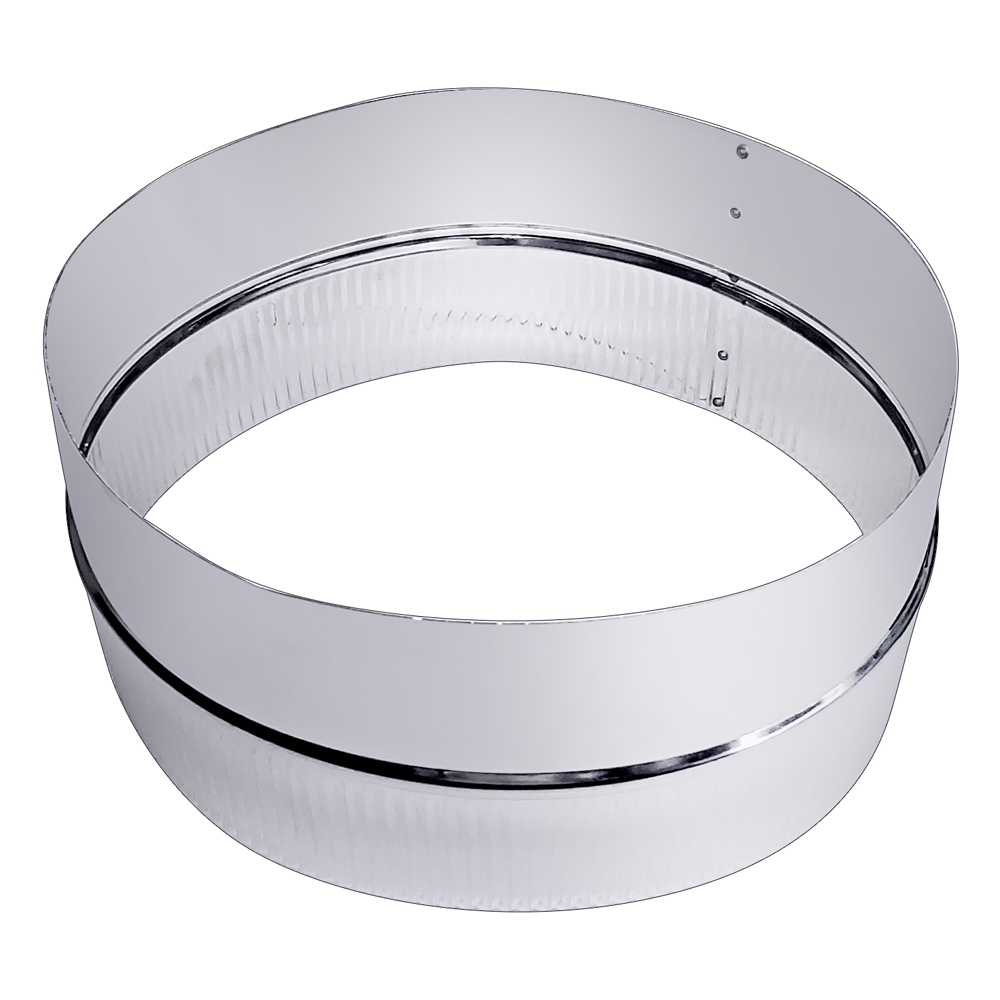

Riser

This part is installed on the Base Stack when using a Raised Flue Pan Set. In contrast, this part would be installed on the top of the Hood Hub when using a Drop Flue Pan Set, Hybrid Pan or Divided Pan. NOTE: Some legacy models of Smoky Lake Hoods do not require a Riser.

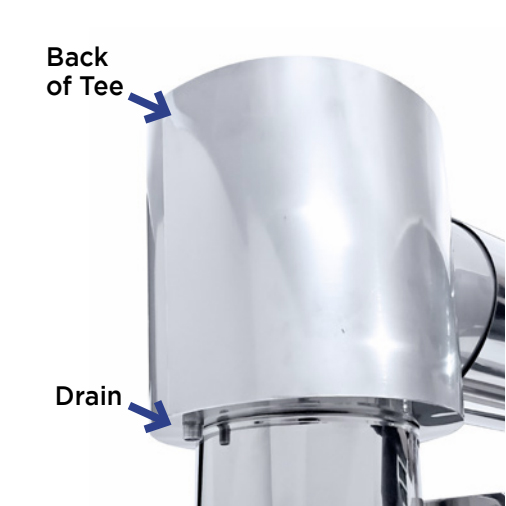

Tee with Drain Port

Connects the base stack, strap stack and vertical pipes.

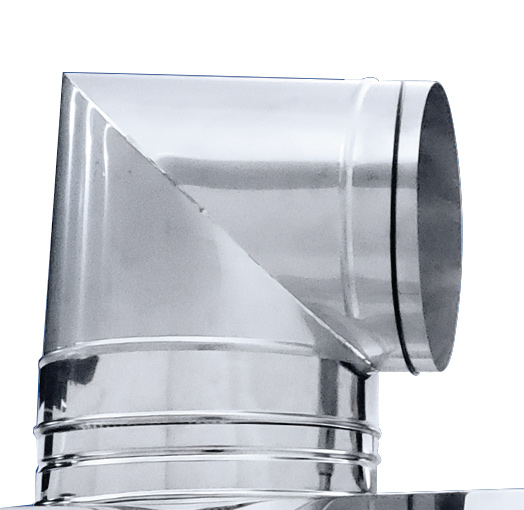

90º Elbow

Connects to the hub on top of your Smoky Lake Hood

O-Ring Gaskets, Set of Two

Strap Stack with Fastening Hardware

Sized to span the distance between the 90º Elbow and the Tee.

Concentric Spacer Fins, 14/20 × 4

Keeps the smoke stack centered within the steam stack

Stainless Steel Steam Pipe, STARTER PIECE w/Extra Knurling (20" x 2')

This package includes a starter piece of Steam Pipe with extra knurling. This will enhance the ease of installation into the Tee.

Instruction Guide

More information also available in our Knowledge Base.

Stainless Steel Steam Pipe (20" x 2')

This will be the outer Steam Pipe of the Concentric System.

Each Pipe is approx. 2' length. Starting at 8' above the floor, we recommend that you add enough Steam Pipe to extend 6+ feet beyond your Smoke Pipe (ABOVE THE ROOFLINE). This gives the embers opportunity to mix with the steam before exiting.

PLEASE SPECIFY QUANTITY

Stainless Steel Smoke Pipe (14" x 2')

This will be the inner Smoke Pipe of the Concentric System.

Each Pipe is approx. 2' length. The first Pipe is positioned about 6' above the floor. You will need to add enough pipe to extend 18" (minimum) beyond your roofline.

PLEASE SPECIFY QUANTITY

Please Verify Pan Type *

What is the model of the Smoky Lake pan that will be used with this system? (ie. Hybrid Pan vs Drop Flue Pan Set vs Raised Flue Pan Set)

Please Verify Overall Size of Your Pan(s) *

Please confirm the overall footprint of your pan(s). For example, if you have a 2×2 Front Pan with a 2×4 Flue Pan, your total footprint would be 2×6.

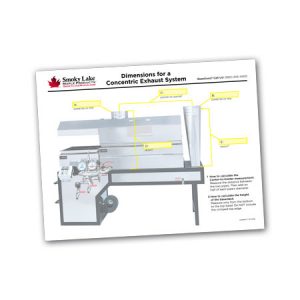

Dimensions Worksheet

To ensure perfect fit-up with an existing evaporator, let’s double check critical dimensions using this worksheet.

If applicable, you may share your dimensions here now, OR circle back with us later. But please note: We may not be able to start production on your Concentric Exhaust System until these dimensions are verified. We only want the best outcome for you!
