2' x 6' Oil-Fired Liberator with Raised Flue Pan Set, Standard Config – Bundle

SKU: SL-LIBOILRF2472-BUNDLE

PRICE	Bundle Discount! Original price was: $9,448.00.Current price is: $9,118.00.
AVG. LEAD TIME This is the estimated/average time required to get this product ready and/or shipped. Please note that timing may be faster when picked up at our Hilbert showroom.

Raised Flue Pan Set - 2' x 6'

- Estimated Evaporation Rate = 40 – 70+ GPH
- Flues = Qty 11, 7" tall
- Front Pan = approx 24"w x 24"l
- Volume of 2" Depth = Approximately 39 gallons

Insulated Liberator Arch with Peep Window

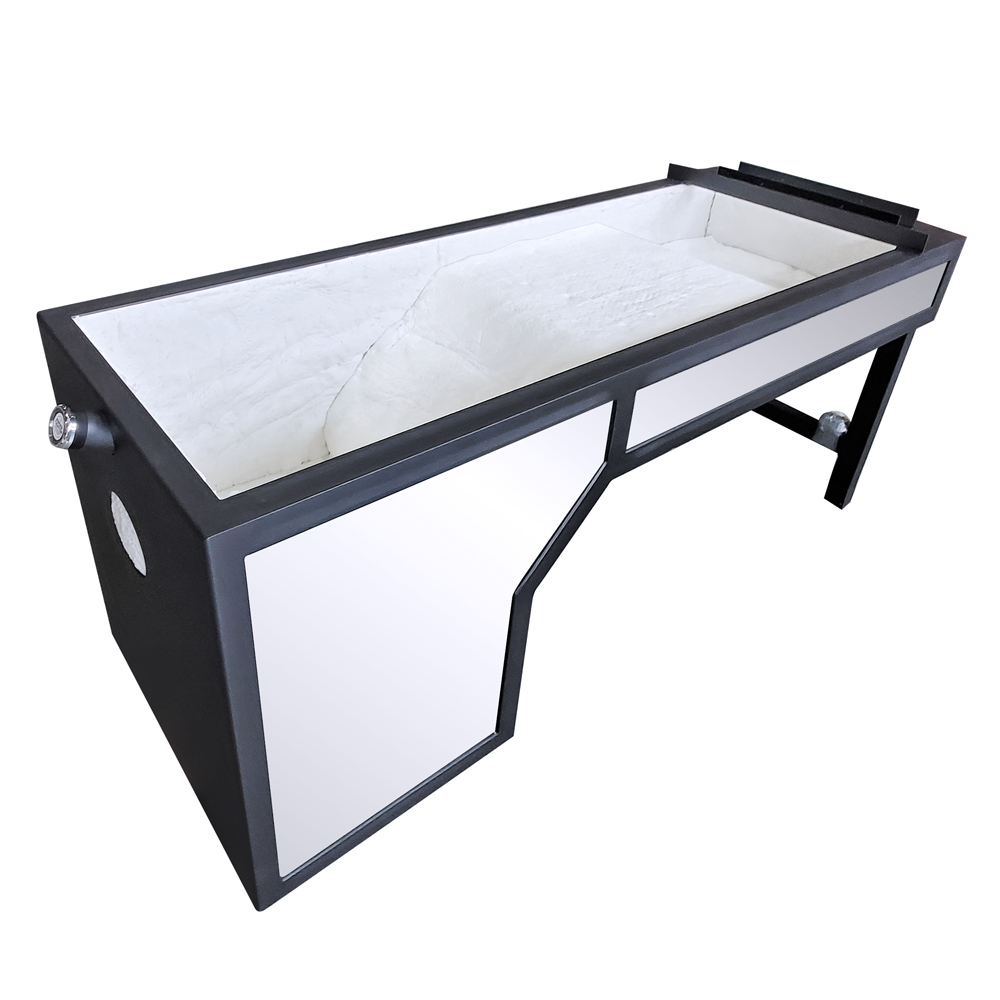

2' x 6' Liberator Arch, Oil-Fired

This strong, fully steel framed evaporator comes fitted with a digitally-controlled Carlin® Commercial Grade Burner. The Liberator Arch geometry is optimized to direct the heat into your sap, resulting in an incredible boil.

Liberator Arch Standard Features

Peep Window
Leg Leveling Bolts
Fully Insulated, Double Thick
Stainless Steel Sides
Stainless Steel Base Stack
Stainless Steel Stack Pipe

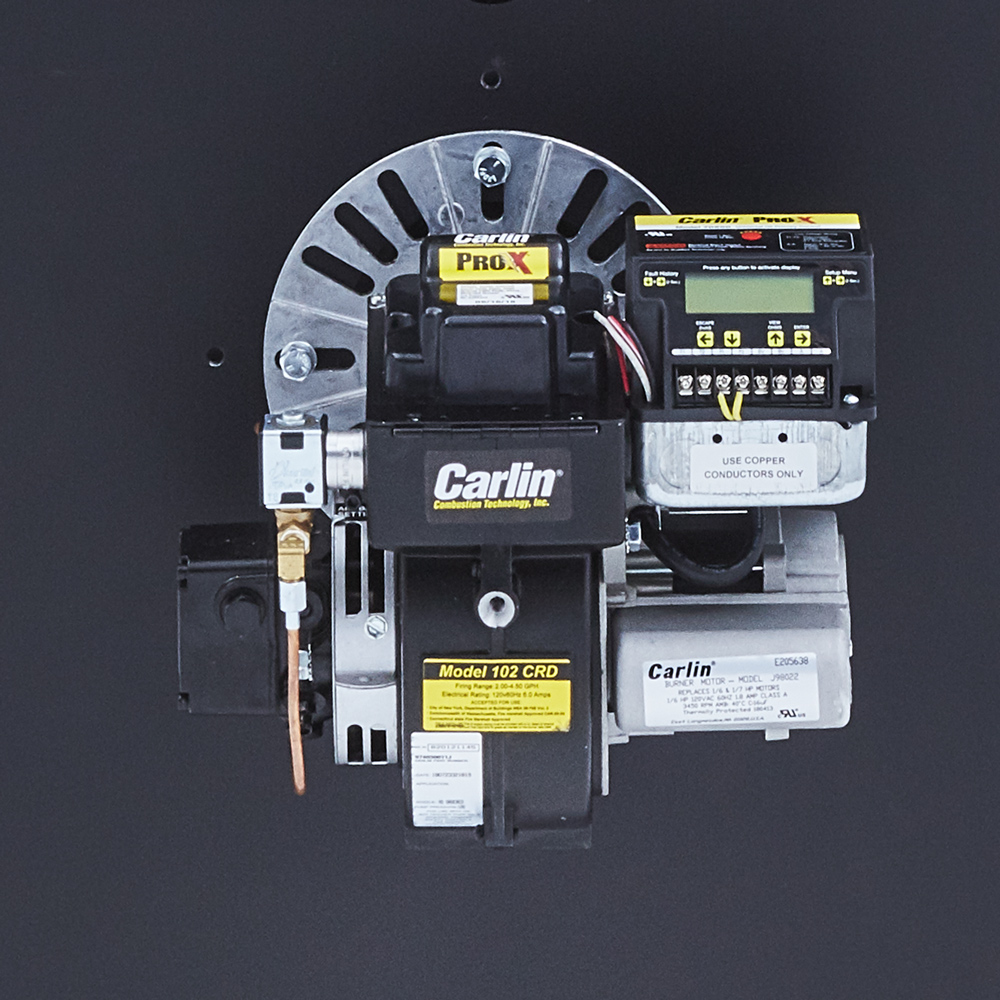

Carlin® Oil-Fired Burner, Complete System

Model 102CRD Oil Burner, UL Certified
3″ air cone: 3.00 to 4.50 GPH
Mounting Flange and Gasket
Nozzle 4.00 70B Delavan
5/16" Attachment Hardware
- Hex Bolts, 1" length - Qty 4
- Hex Nuts - Qty 4
- Lock Washers - Qty 4
- Flat Washers - Qty 4
Carlin^® Product Guide

Accessory Kit for a Raised Flue Pan Set with Standard Configuration

Pan Kit (Therm, Draw-Off Valve, 7 Clamps, 9 Clamp Gaskets, 3 Plugs, 2 Transfer Pipes)

Included with the Pan Set.

Inlet Float Box for a High Output Pan Set with Standard Configuration

Inlet Float Box (For Standard, 2'-Wide Pan Sets)

Included with every Pan Set.

Regulates sap depth in the Flue Pan.

Select options for the drain port below.

Transfer Float Box for Raised Flue Pan Set with Standard Configuration

Transfer Float Box (For a Raised Flue Pan Set, Standard Config)

Included with every Pan Set.

Regulates sap depth in the Front Pan.

Select options for the drain port below.

Stiffened Gasket, 2 Feet × 2

Included with every Pan Set.

Increases efficiency by sealing any air gap behind each pan.

Stainless Steel Base Stack, 10" Diameter

Included with the Corsair Arch.

Stainless Steel Stack Pipe, 2-Ft Section, Various Diameters

Stack Pipe, Stainless Steel, 2' length, 10" diameter × 5

Included with the Corsair Arch.

Rail Gasket - 50 feet long x 2 inches wide

Precut Rail Gasket Set, 2' x 6'

FREE Bonus Accessory Included with Purchase of the Full Evaporator.

Increases efficiency by sealing any air gap between the top of the Arch and the bottom of the Pan.

Corsair Belly Riser (for 2x6 Raised Flue Pan Set)

Included FREE with purchase of this evaporator.

The Belly Riser optimizes the internal arch geometry for this style of pan.

Average Lead Time

Free Shipping for Continental US
