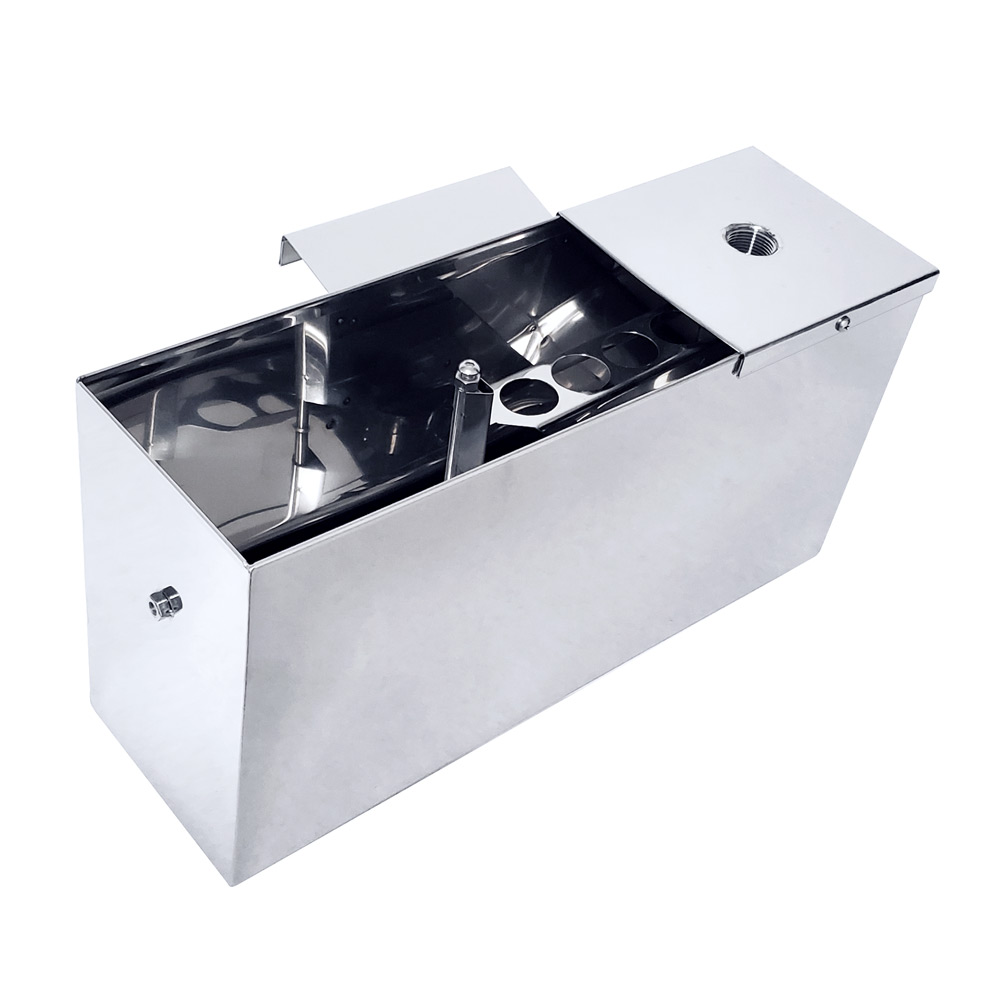

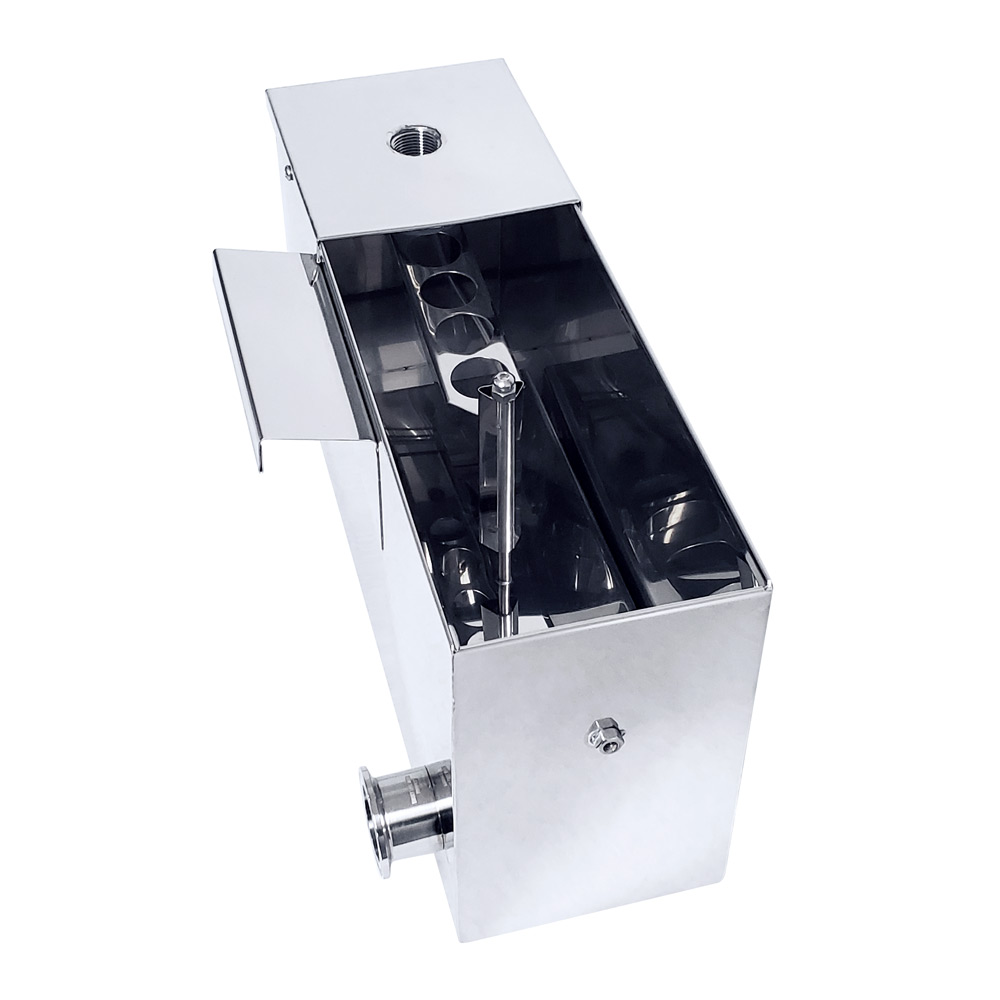

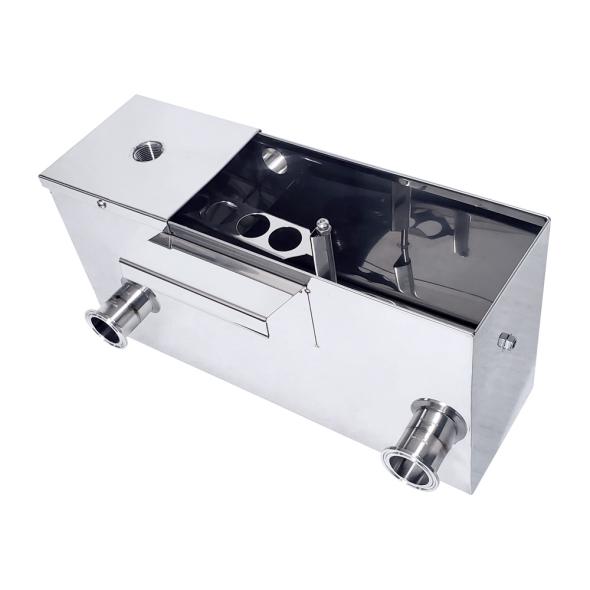

Inlet Float Box (For Standard, 2′-Wide Pan Sets)

$395.00

This style of float box regulates the sap depth in the flue pan of a Smoky Lake Pan Set with standard configuration and right side draw-off. (See diagrams below.) This Float Box is compatible with both the Raised Flue and Drop Flue styles.

Inlet Float Boxes include fittings and drain. Sight Glass and Lids sold separately.

Drop Flue Pan Set with Standard Configuration

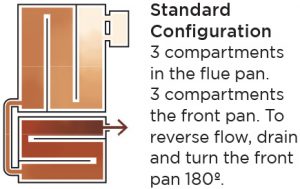

Path of the Sap Through a Standard Drop Flue Pan Set

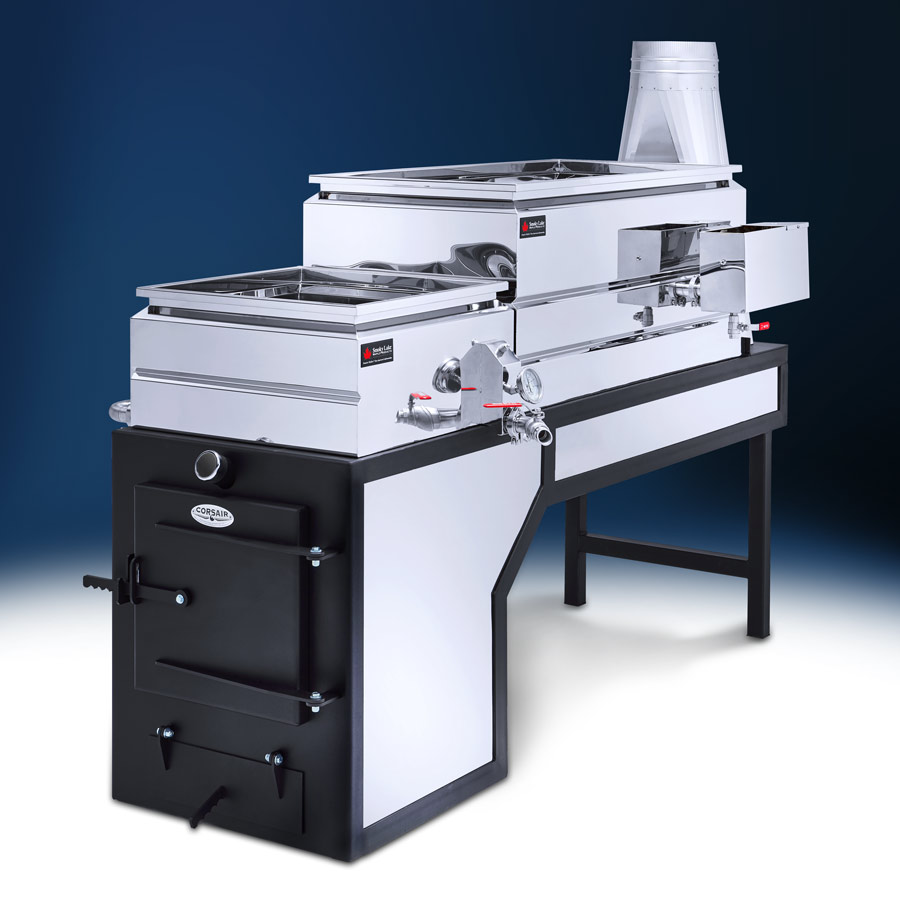

Raised Flue Pan Set with Standard Configuration

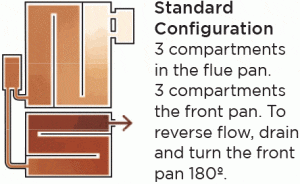

Raised Flue Pan Set with Standard Configuration

Popular Upgrade

Deluxe Sight Glass for Float Box

This Sight Glass configuration is compatible with Smoky Lake Float Boxes.

  • Solid stainless steel base
  • Anti-turbulence orifice to keep the liquid in the sight glass steady even during a rolling boil
  • The glass is fire polished and shatter-resistant
  • The scale can be placed by you to ensure the level is perfectly calibrated
  • Drainable so you don’t have to worry about it freezing overnight



Lid for Inlet Float Box (Compatible with Double Inlet Float Boxes and StarCat Float Boxes)

  • Handcrafted in the USA
  • Food grade, 304 stainless steel, mirror finish
  • 5-1/8" wide x 10-7/8" long x 1/2" high
  • This style lid has a full rim going all the way around 3 sides. On other styles of Float Box Lids, part of this rim has to be notched out to accommodate a different style of float box hanger.
  • Compatibility
    • Float Boxes with double inlets (Found on larger Pan Sets)
    • Float Boxes for StarCat Divided Pans
    • Float Boxes for Badgerland Pans
    • See below for more details/images of compatible Float Boxes

Description

SPECS

  • Body Dimensions: 16″ long x 5″ wide x 8″ high
  • Hanger Length: Holds the Float Box approx 2″ out from the pan
  • Pan Fittings: Two 1-1/2″ sanitary fittings
  • Material: 304 Stainless Steel
  • Drain: 1/2″ male with Stainless Steel Valve
  • Inlet Port: 3/4″ female
  • Install Position: Hangs on the right side of the Flue Pan
  • Compatibility:
    • Smoky Lake Raised Flue Pan Set, Standard Configuration, Right Side Draw Off, 2-Feet Wide
    • Smoky Lake Drop Flue Pan Set, Standard Configuration, Right Side Draw Off, 2-Feet Wide
  • Accessory Options: Deluxe Sight Glass and Float Box Lid
