Handcrafted in USA Handcrafted in USA
| STARTING AT | FROM$11,564.05 |
|---|---|
| AVG. LEAD TIME This is the estimated/average time required to get this product ready and/or shipped. Please note that timing may be faster when picked up at our Hilbert showroom. | |
Description

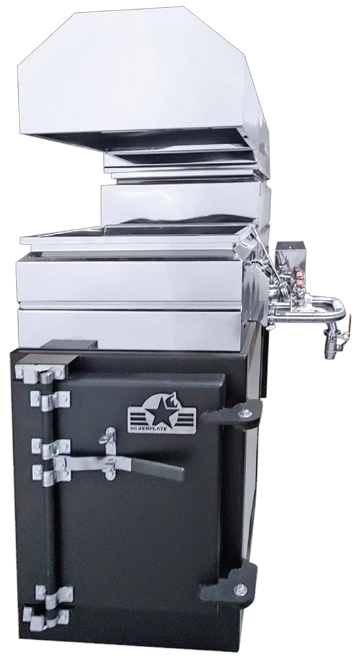

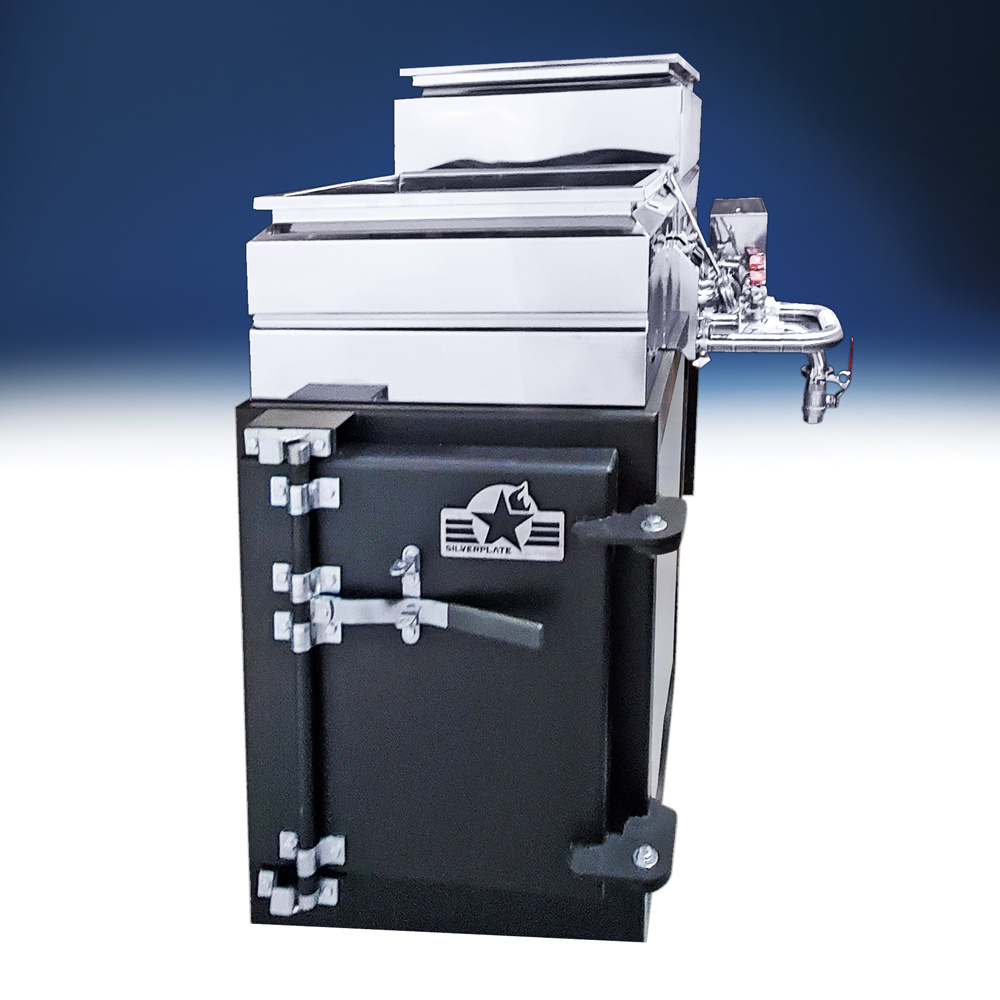

The Silverplate Evaporator is a tested and proven design built by Smoky Lake Maple Products, LLC of Hilbert, Wisconsin. The fully insulated, airtight, stainless steel arch makes good use of the high efficiency pans that Smoky Lake is known for.

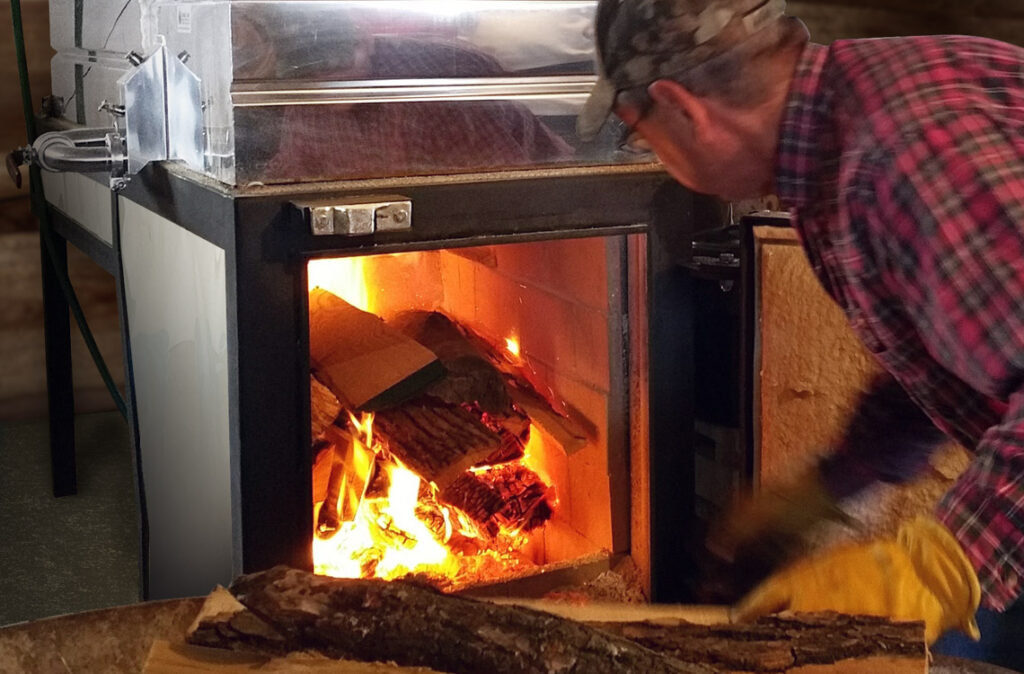

An airtight door with dual-point latch system ensures that no cold air will be pulled into the arch, which would then be pulled across the floor of the pans, negatively affecting evaporation rates. Also, with the amount of air being forced into the combustion chamber from the built-in blowers, the airtight door keeps the operator safe from sparks and embers.
Stainless steel adds both beauty and longevity to your investment. Stainless steel is resistant to rust and can withstand extreme heat far better than any galvanized steel.
All Silverplate evaporators include high performance blowers and therefore they are equipped with specialized cast iron grates to optimize the air flow. Cast iron, as a material, does not have a fiber body. Therefore when heated it has no tendency to warp. The perforations are placed in a way to create the most turbulence within the firebox. Remember the 3 “T”s of combustion: Time, Temperature and TURBULENCE.
| Popular Sizes | Actual Footprint | Size of Firebox |
| 2′ x 6′ | 25-1/2″ x 7′ 5″ | 2′ x 30″ |
| 2′ x 8′ | 25-1/2″ x 9′ 5″ | 2′ x 30″ |
| 30″ x 8′ | 31-1/2″ x 9′ 5″ | 30″ x 36″ |
| 30″ x 10′ | 31-1/2″ x 11′ 5″ | 30″ x 36″ |
NOTE: The “Popular Sizes” listed above refer to the pan size that each arch is designed for. For example, our 2′ x 6′ Silverplate Arch accommodates a 2′ x 6′ pan, but its actual width x length (footprint) is 25-1/2″ x 7’5″. All Silverplate arches stand 34″ tall.
Bundle Discounts
By bundling a Silverplate Arch with a Pan to create a “Full Evaporator”, you receive 3% OFF the Silverplate Arch price.
Every Full Silverplate Evaporator will also receive a Free Rail Gasket and Stiffened Gasket(s) at no extra charge.
Bundling discounts on accessories are available as advertised on this page.
Value-Added Details
When you compare our equipment to our competitors, you are not comparing apples to apples.
Premium High Output Evaporator Pans
Silverplate Evaporator Arch
Handcrafted by Artisans in Wisconsin
Free Shipping Details
Free Shipping in the Continental USA.
This product will be handcrafted and shipped from our headquarters in Hilbert, Wisconsin.
This is a freight item. Most often this will travel with a white glove carrier.
More information:
Tutorials and Tips
| STARTING AT | FROM$11,564.05 |
|---|---|
| AVG. LEAD TIME This is the estimated/average time required to get this product ready and/or shipped. Please note that timing may be faster when picked up at our Hilbert showroom. | |

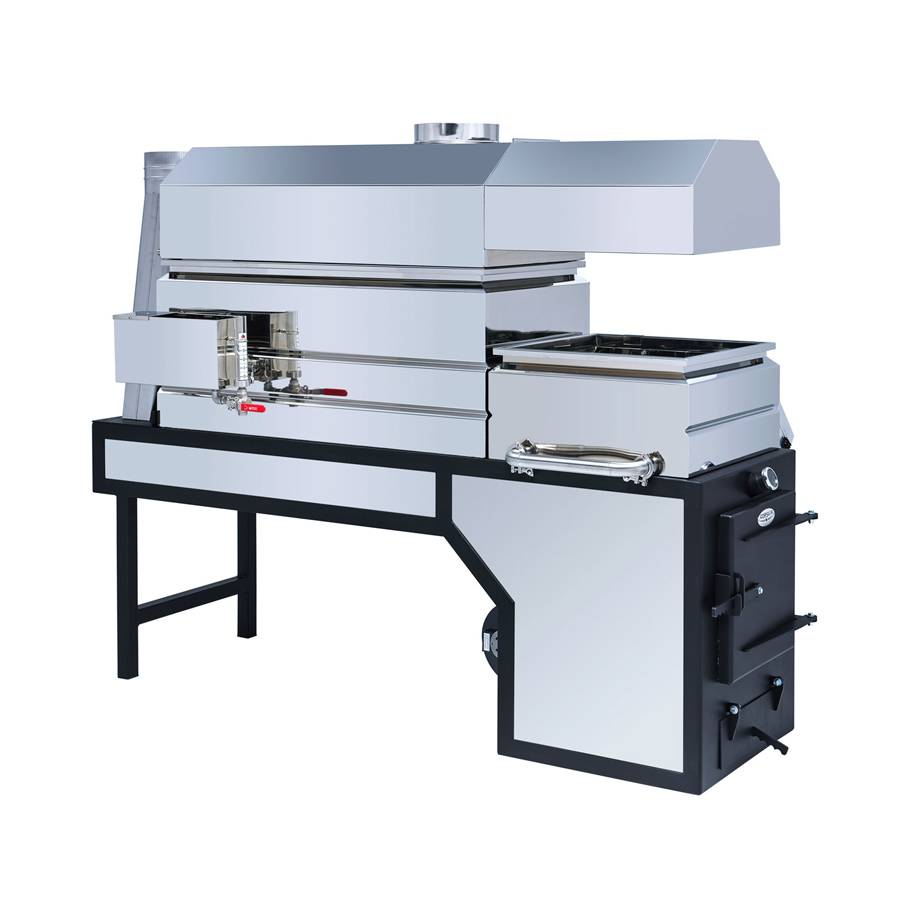

This beautiful, mirror finish evaporator boasts superior fuel efficiency and unrivaled evaporation rates. Handcrafted by the Smoky Lake team in Northeastern Wisconsin.
Please Note: Photos are intended to represent all Silverplates. We will craft your Silverplate according to the selections you make below.
Description
The Silverplate Evaporator is a tested and proven design built by Smoky Lake Maple Products, LLC of Hilbert, Wisconsin. The fully insulated, airtight, stainless steel arch makes good use of the high efficiency pans that Smoky Lake is known for.
An airtight door with dual-point latch system ensures that no cold air will be pulled into the arch, which would then be pulled across the floor of the pans, negatively affecting evaporation rates. Also, with the amount of air being forced into the combustion chamber from the built-in blowers, the airtight door keeps the operator safe from sparks and embers.
Stainless steel adds both beauty and longevity to your investment. Stainless steel is resistant to rust and can withstand extreme heat far better than any galvanized steel.
All Silverplate evaporators include high performance blowers and therefore they are equipped with specialized cast iron grates to optimize the air flow. Cast iron, as a material, does not have a fiber body. Therefore when heated it has no tendency to warp. The perforations are placed in a way to create the most turbulence within the firebox. Remember the 3 “T”s of combustion: Time, Temperature and TURBULENCE.
| Popular Sizes | Actual Footprint | Size of Firebox |
| 2′ x 6′ | 25-1/2″ x 7′ 5″ | 2′ x 30″ |
| 2′ x 8′ | 25-1/2″ x 9′ 5″ | 2′ x 30″ |
| 30″ x 8′ | 31-1/2″ x 9′ 5″ | 30″ x 36″ |
| 30″ x 10′ | 31-1/2″ x 11′ 5″ | 30″ x 36″ |
NOTE: The “Popular Sizes” listed above refer to the pan size that each arch is designed for. For example, our 2′ x 6′ Silverplate Arch accommodates a 2′ x 6′ pan, but its actual width x length (footprint) is 25-1/2″ x 7’5″. All Silverplate arches stand 34″ tall.
Bundle Discounts
By bundling a Silverplate Arch with a Pan to create a “Full Evaporator”, you receive 3% OFF the Silverplate Arch price.
Every Full Silverplate Evaporator will also receive a Free Rail Gasket and Stiffened Gasket(s) at no extra charge.
Bundling discounts on accessories are available as advertised on this page.
Value-Added Details
When you compare our equipment to our competitors, you are not comparing apples to apples.
Premium High Output Evaporator Pans
Silverplate Evaporator Arch
Handcrafted by Artisans in Wisconsin
Free Shipping Details
Free Shipping in the Continental USA.
This product will be handcrafted and shipped from our headquarters in Hilbert, Wisconsin.
This is a freight item. Most often this will travel with a white glove carrier.
More information:
Tutorials and Tips
Take advantage of our online resource library, 24/7. You’ll find illustrated instruction guides, videos, and a full range of maple topics!
