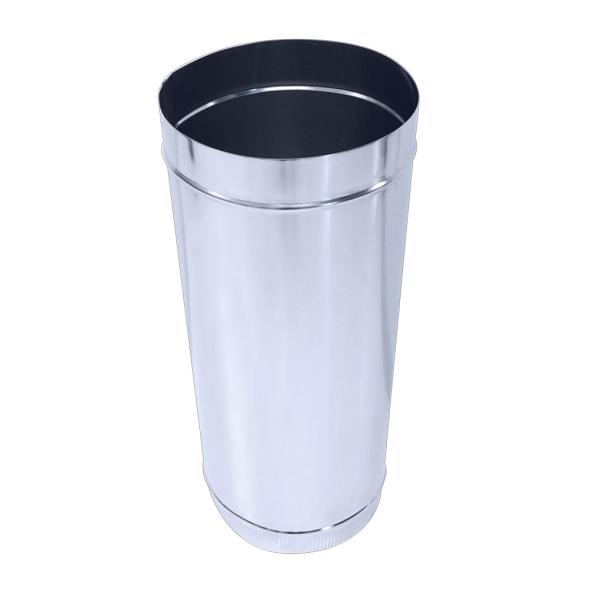

Stainless Steel Stack Pipe, 2-Ft Section, Various Diameters
Stainless Steel Stack Pipe, 2-Ft Section, Various Diameters Stainless Stack Pipe Seam Detail

Stainless Steel Stack Pipe, 2′ length, 8″ diameter


Stainless steel stack pipe, grade 304. This pipe offers superior service life compared to a galvanized smoke stack and it meets the food grade requirements for steam stack.

Sold in 2′ sections.

These pipes come standard as male on one end, female on the other for ease in connecting as many as you need.

SKU: SL-PIPE-8X2 Category:


General Guidelines for Determining Smoke Stack Diameter Size:

  • 8″ Stack Pipe – Compatible with 2′ x 3′ and 2′ x 33″ Corsair evaporators
  • 10″ Stack Pipe – Compatible with all Smoky Lake 2′-wide evaporators, 4 feet pan length or longer
  • 12″ Stack Pipe – Compatible with all Smoky Lake 30″-wide evaporators
  • 14″ Stack Pipe – Compatible with Smoky Lake Silverplate 3′-wide evaporators

Calculating Total Height:

Each time you join two sections together, keep in mind that you will loose 2″ of total height because of the way the sections inter-lock together. For example, after joining two 2-foot sections, the total height ends up being 3’10” (4 feet – 2 inches).

Removing the Protective Vinyl From the Stack Pipe:

If your stainless stack pipe is shipped with a protective vinyl and/or a caution sticker on it, you MUST remove them BEFORE use. Failing to do so will result in the vinyl/sticker charring to the stainless steel, resulting in a loss of the metal’s inherent beauty.

It is easiest to remove the protective vinyl in a warm room. It will not peel off as easily in very cold temperatures.


Stainless steel will naturally discolor after it has been subjected to the intense heat of your evaporator. Hence, it is not possible for any stack pipe on a working evaporator to identically match the mirror finish of your Smoky Lake evaporator pans.

Additional information

Dimensions 24 × 8 × 8 in
