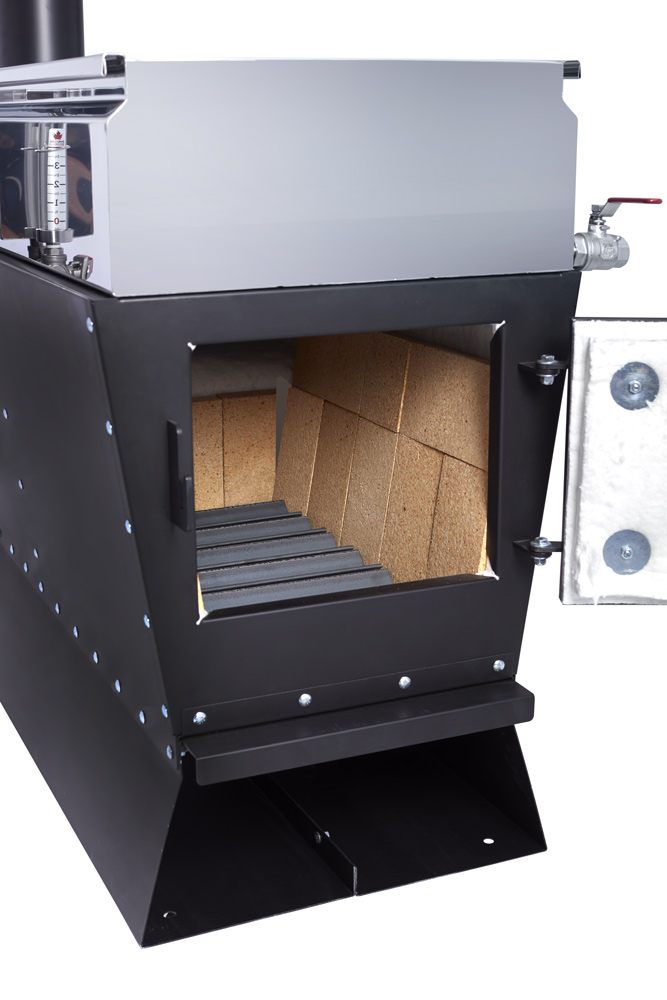

Standard Grates in a Corsair Arch
Standard Grates in a Corsair Arch grates

Steel Grates

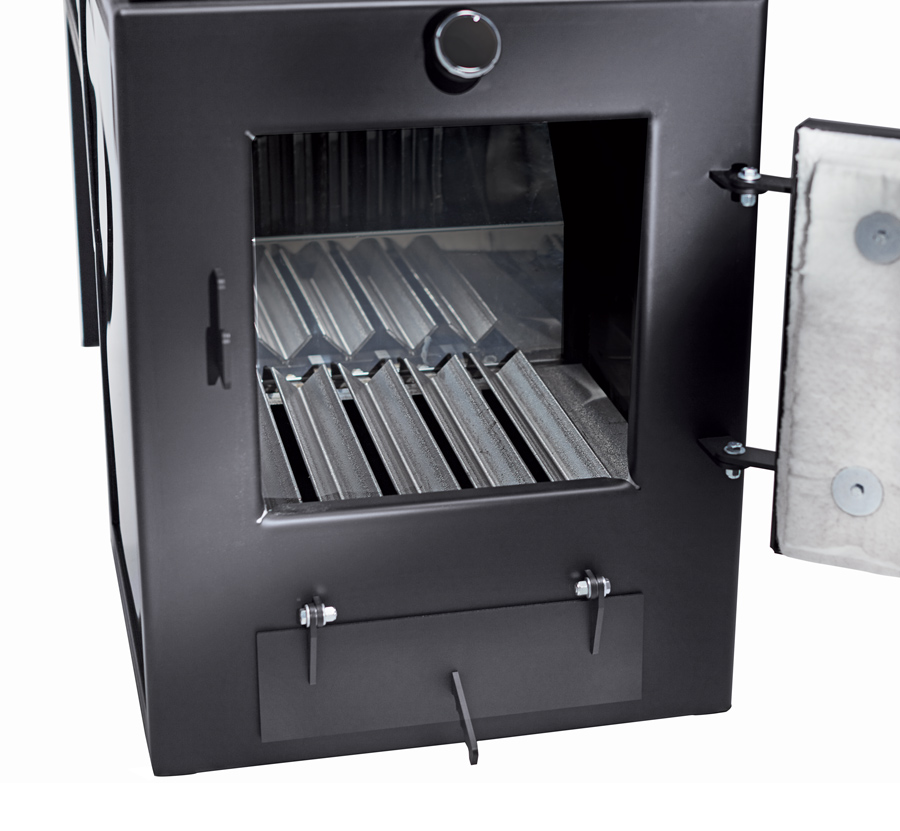

We have added more V’s to the top of this grate and have placed the V’s closer together. This helps prevent coals from slipping through the grates and actually extends the lifespan of the product. This is because the grates are not enduring heat from underneath.

This style of grate comes standard with all Smoky Lake wood-fired evaporators (except for the Silverplate Evaporator which comes with the Domed Grates). If you are using a Forced Draft System, the Domed Grates will offer best results for that application.



SKU: SL-GRAT Categories: ,



For Corsair, first make sure the angle iron ledges are installed inside the firebox. Insulation and firebrick should also be installed before grates. Place the grates in the center of the firebox as shown in the photos. Note that the orientation of the grates is different in StarCat/Dauntless compared to Corsair. Optional: You may fill the V’s with sand. This can help increase the lifespan of the product.

Additional information

Which Evaporator Should These Grates Fit?

StarCat, Dauntless, Corsair with 2 ft x 2 ft Firebox, Corsair with 2 ft x 30 in Firebox, Corsair with 30 in x 30 in Firebox, Other. Ask Me.
