Description

Pan Instructions Bricking a Corsair Arch

Flat and Furious.

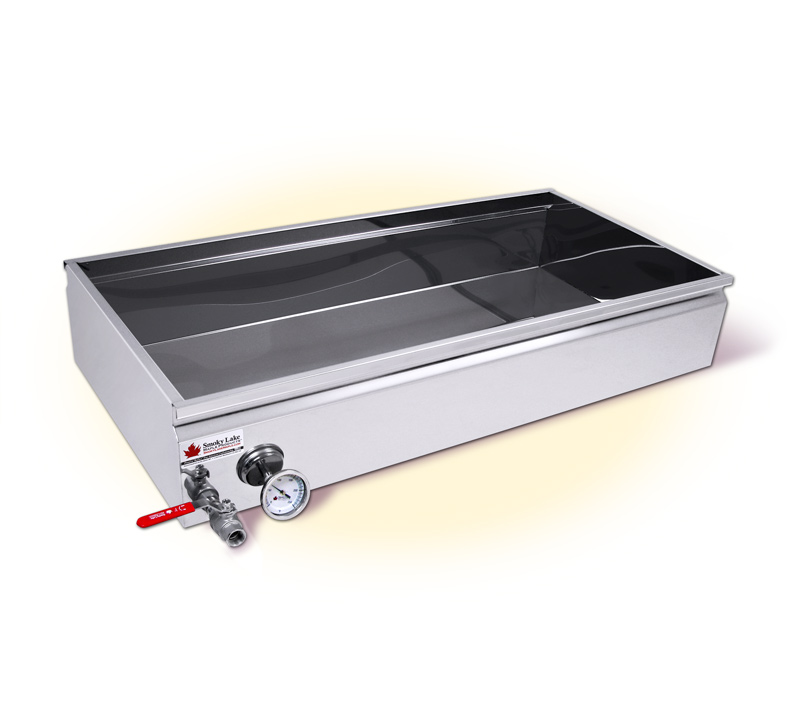

Premium Flat Pans by Smoky Lake are crafted with 22 gauge, mirror finish stainless steel — which has superior heat transfer compared to our competitors’ thicker gauges. They come standard with a thermometer port, draw-off port and stainless steel Ball Valve. They also feature full length, built-in handles. We confidently back every pan with a lifetime limited warranty on all TIG welds. Every pan is American made at our headquarters in Hilbert, Wisconsin.

Flat Pan with Call Outs

Every Smoky Lake Flat Pan Includes

  • 22 Gauge, Mirror Finish Stainless Steel Pan
  • Stainless Steel Ball Valve w/Nipple
  • Angled Thermometer Port
  • 3″ Dial Maple Thermometer
  • Built-in, Full Length Handles
    Smooth, Hemmed Edges
  • Level Assist Feature
    Available exclusively from Smoky Lake Maple Products. This 2″ fill line helps you level the pan before boiling.
  • Instruction guide for using a Flat Evaporator Pan
  • Lifetime Limited Warranty on TIG Welds
  • Handcrafted in Hilbert, Wisc.

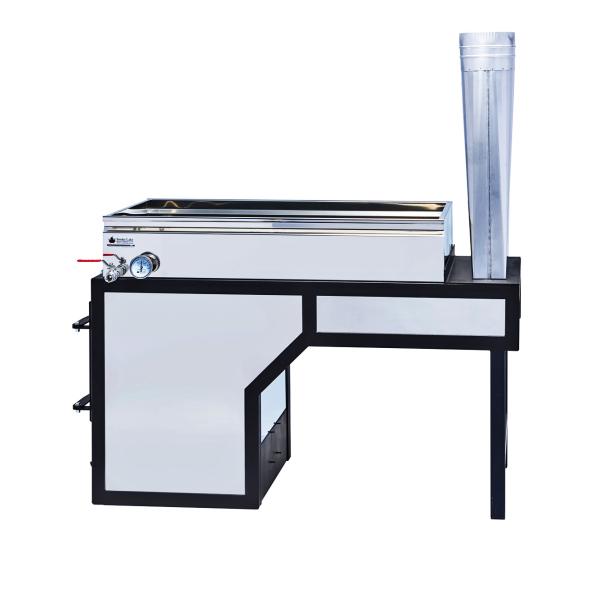

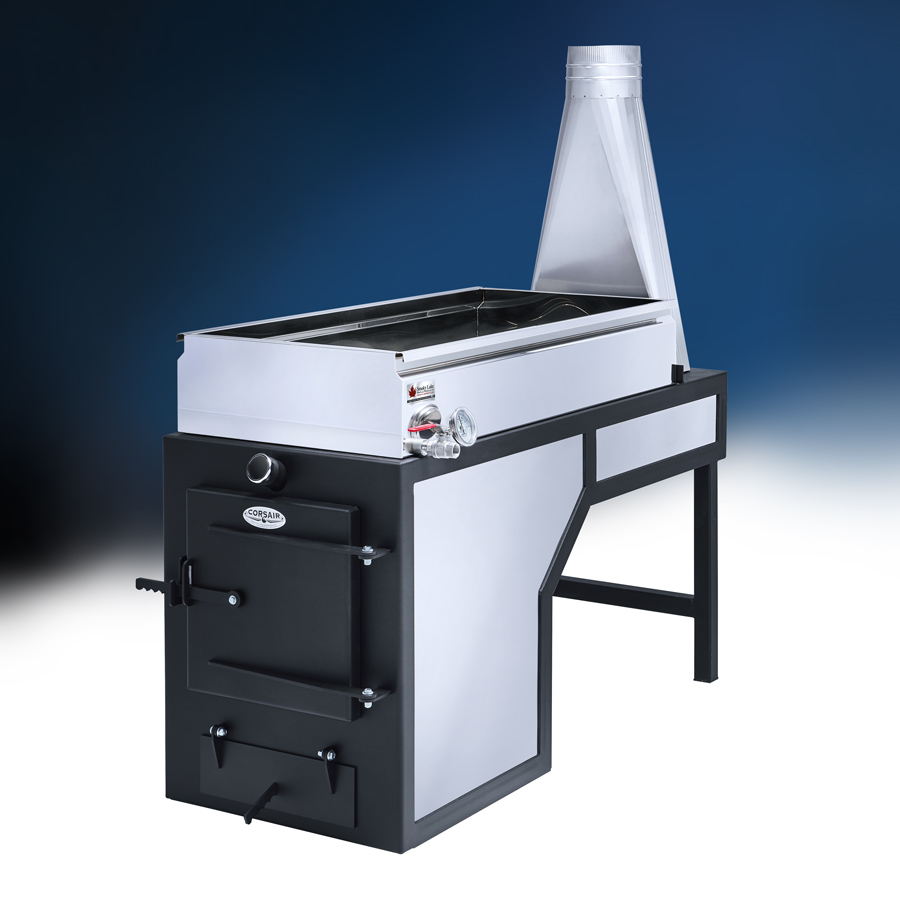

Corsair Arch

This revolutionary evaporator design is fully convertible from conventional draft to forced draft in an instant. The airtight front gives you a critical advantage in efficiency and performance whether you’re running the forced air kit or if you choose to keep things simple with natural aspiration.

The large loading door nicely compliments the large combustion chamber. This air-tight door will help prevent cold air from being pulled along the bottom of pan, negatively effecting evaporation rate and efficiency.

The Corsair arch is fully steel framed. The entire perimeter is built as strong as possible, giving you confidence when filling the pans above it with your precious liquid and igniting an intense fire inside it. Additionally, the arch fits the geometry of whatever pan set you plan to use on it, forcing the pan to take full advantage of the heat created within.

As of May 2, 2022, we are transitioning all of our Corsair Arches to include the Stainless Steel Upgrade. This feature is loved not only for its aesthetic beauty, but most important for its durability. Stainless steel resists rust and is extremely resilient in intense heat. It is guaranteed to outlive galvanized steel.

The Stainless Steel upgrade applies to the Corsair Arch Sides, Base Stack and Stack Pipe as called out in the photo below.

Insulating the Arch

See our Brick and Insulation support pages for more information about brick configurations. We also offer a support guide for Brick Batter (High Temp Mortar).

Please note: The Corsair air-tight firebox door will come pre-insulated for you. The ceramic blanket, firebrick and mortar which required to insulate/protect the remainder of the arch is sold separately.


Four Reasons the Door Design is Critical

1Competitor doors/fireboxes are often much too small. In contrast, the 16″ x 16″ Corsair doorway makes it easier to load wood, and generate more heat.

2If you ever want to upgrade to Forced Draft — either now or in the future — you need an airtight door. With Corsair, you’re all set.

Regardless whether you have Forced Draft or Natural Draft, an airtight door increases efficiency. A leaky door works against you by allowing cold air to enter the firebox and cool your pans.

4Our competitors’ cast iron door fronts have been cracking since the 1800s. The Smoky Lake Corsair door will not. We guarantee it.

Compare the Durability


Forced Draft Kit Option

Forced Draft Kit includes domed gratesBENEFITS:

  • Much higher evaporation rate compared to natural draft.
  • Easier to burn larger/unseasoned wood. This means you won’t have to cut your firewood as fine and you can burn wood that is less perfect.
  • Increased agility. You will be able to shut down your evaporator much faster because it allows firewood to burn quicker and more completely.

KIT INCLUDES:

The forced draft option includes upgraded domed cast iron grates and an electric blower. If ordered at this time, the blower will come pre-mounted to the arch. Otherwise, if you order the arch as conventional draft, the back of the Corsair firebox will include a perforated knock out and mounting studs to accommodate a forced air kit in the future. If the time comes when you need more performance, just remove the knock out, mount the blower and replace the steel grates with the kit’s new perforated, domed cast iron grates.
