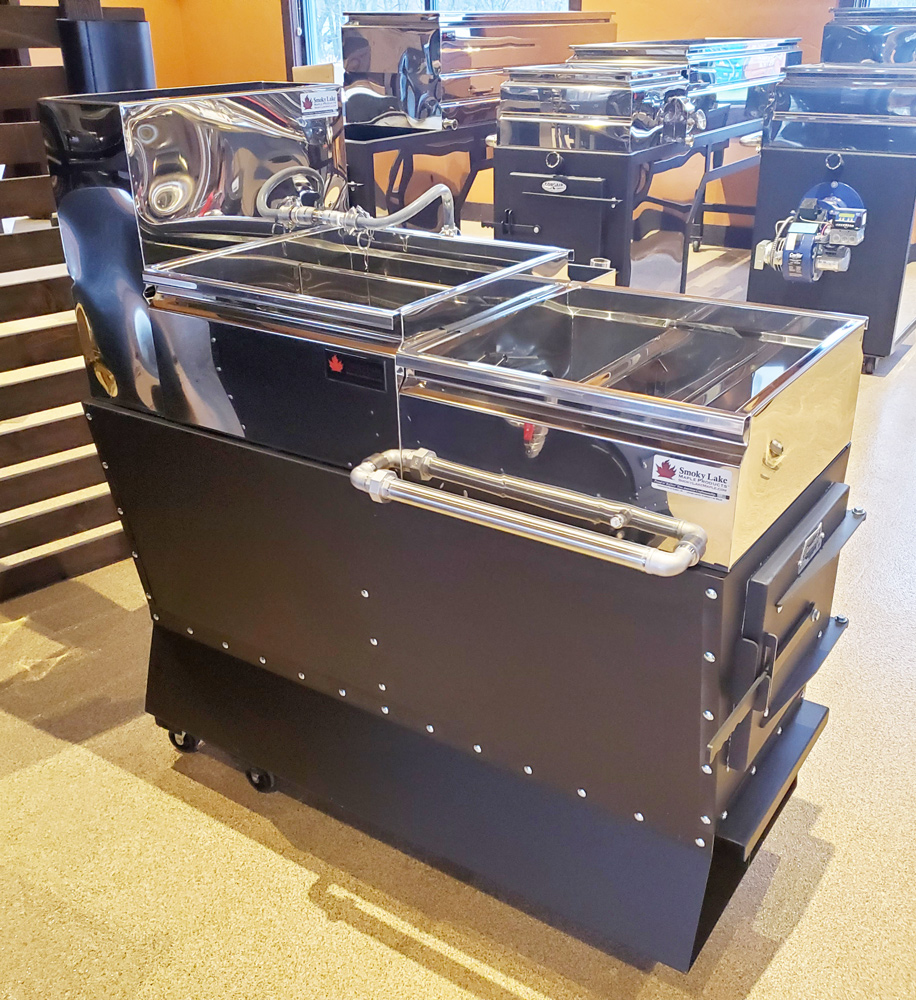

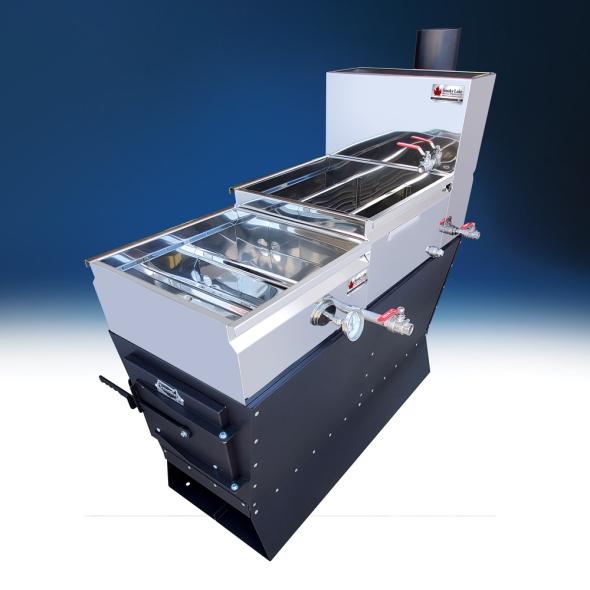

Dauntless Evaporator with Drop Flue Pan Set

(1 customer review)

From: $2,690.00

UPDATED 1-9-2021: DUE TO EXTREME VOLUME OF ORDERS AT THIS TIME, MOST PAN SETS ARE REQUIRING 10+ WEEKS LEAD TIME. Contact us and we can direct you to items that may still be available for this season.

Free ShippingFREE SHIPPING in the continental USA.*
Please contact us for international shipping quotes.

Discounts for Local PickupDISCOUNTS AVAILABLE for local pick up.
See our discounts list or contact us for details.

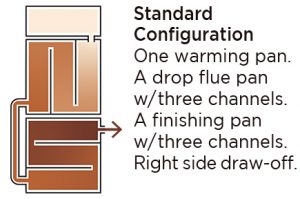

Path of Sap in a Dauntless Drop Flue Pan Set

This evaporator is rated for 30 – 95 taps.
Estimated evaporation rate is 15 – 20+ gallons per hour.



Premium Drop Flue Pan Set

  • Overall size of the complete pan set is 20″w x 48″ long
    • 20″ x 8″ Warming Pan
    • 20″ x 20″ Drop Flue Pan w/two dividers
    • 20″ x 20″ reversible Finishing Pan w/two formed-in dividers
  • 22 gauge, mirror finish stainless steel (more efficient than competitors’ thicker gauges)
  • TIG welded (NEVER Soldered)
  • Limited lifetime guarantee against leaks
  • Full length handles
  • One 3/4″ stainless steel ball valve (for the draw-off port)
  • One 3/4″ x 3″ stainless steel nipple (extends the draw-off valve off of the pan)
  • Two 1/2″ stainless steel ball valves (for the Warming Pan)
  • One 3/4″ stainless steel plug (for the sap inlet port)
  • One 1/4″ stainless steel plug (for second thermometer port)
  • One 3″ dial syrup thermometer
  • Stainless steel Transfer Pipe with Fittings (Connects the Drop Flue Pan to the Finishing Pan)
  • Right-side draw-off is positioned the hottest point of the Finishing Pan

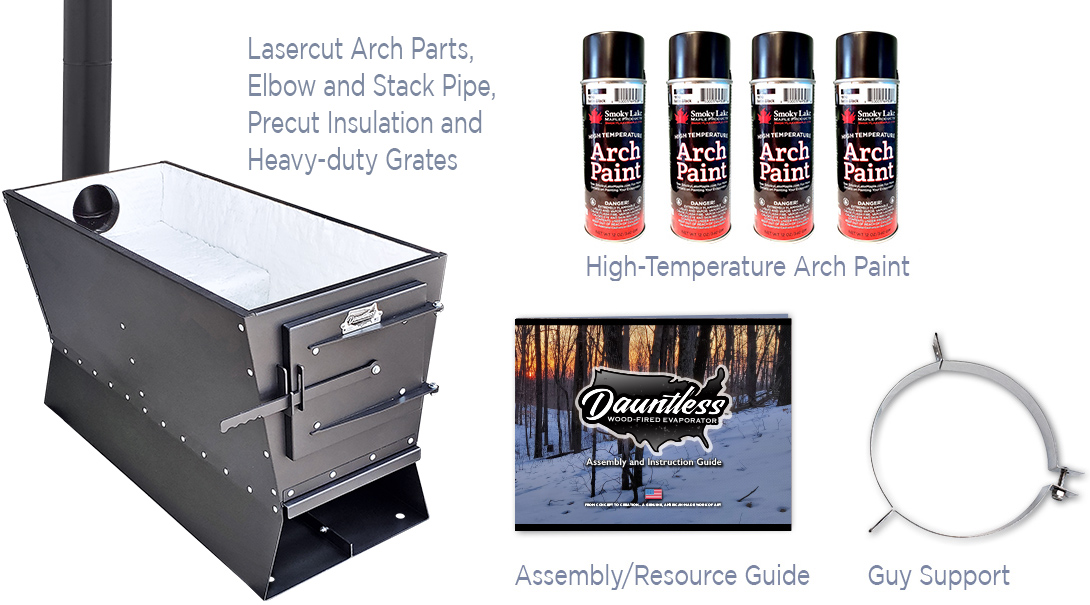

Dauntless Arch

  • Strong, bolt-together steel frame
  • Heavy duty fire grate set
  • Ceramic Insulation: pre-cut, high temp, 1-inch thick
  • High Temperature Arch Paint: professional grade, 4 cans
  • Air-tight loading door (increases efficiency): 13-1/2″ wide  x 11″ high
  • Combustion chamber: 22″ deep x 14″ wide x 16″ tall
  • Dauntless emblem w/hardware: metal
  • Natural draft *18 firebricks are NOT included (available as an add-on or from your local hardware store)

Base Stack and Stack Pipe

  • Elbow: 6″-diameter, steel, pre-painted
  • Stack Pipe: four 2-foot sections (8 feet total), 6-inch diameter, steel, pre-painted
  • Guy Support: handcrafted, stainless steel (used to secure the stack pipe when boiling outdoors)

Optional Add-Ons: Float Box, Lids, Sight Glass, Hose Kit, 90º Elbow for Draw-Off and/or 45º Cut Spout for Draw-Off, Wheels


SKU: SL-DNTDFPS Categories: ,


Now the supreme quality and performance of American-made evaporators from Smoky Lake Maple Products can be enjoyed by the smallest hobby level maple syrup producer on the most modest of budgets. We’ve achieved this feat through large scale mass production of a proven, bolt-together design. Assembly is made easy through precision fitment of quality parts. Best of all, the Dauntless is built as an expandable platform, allowing the evaporator’s production rate to be increased as the operator’s tap count increases.

Just like the larger, professional-grade Evaporators offered by Smoky Lake, the Dauntless features an insulated airtight door, forcing combustion air to be drawn through the fire from underneath while keeping cold air from leaking in and cooling the underside of the pans. The Dauntless arch is even 100% insulated with 1″ thick ceramic fiber insulation. This channels the heat into the sap while keeping the sides of the arch at a safe temperature. The combustion chamber is then lined with cut-free firebrick to ensure longevity.

The producer has the option to crown the Dauntless arch with any one of three styles of 20″ wide x 4′ long pan systems. The three pan systems, can be swapped out at any time as the maple producer’s needs change or their tap count grows. The versatility of the Dauntless is unmatched by any other brand. Dauntless allows the producer to buy the arch (firebox) one time, then make smaller investments/upgrades/adjustments as their needs change.

Product Support

1 review for Dauntless Evaporator with Drop Flue Pan Set

  1. Bruce Schepers

    Boils sap like mad. Worth it to go with the drop flue pan. This thing makes making syup fun. Great service from Jim and his crew.
