Inlet Float Box for Dauntless Pan Sets

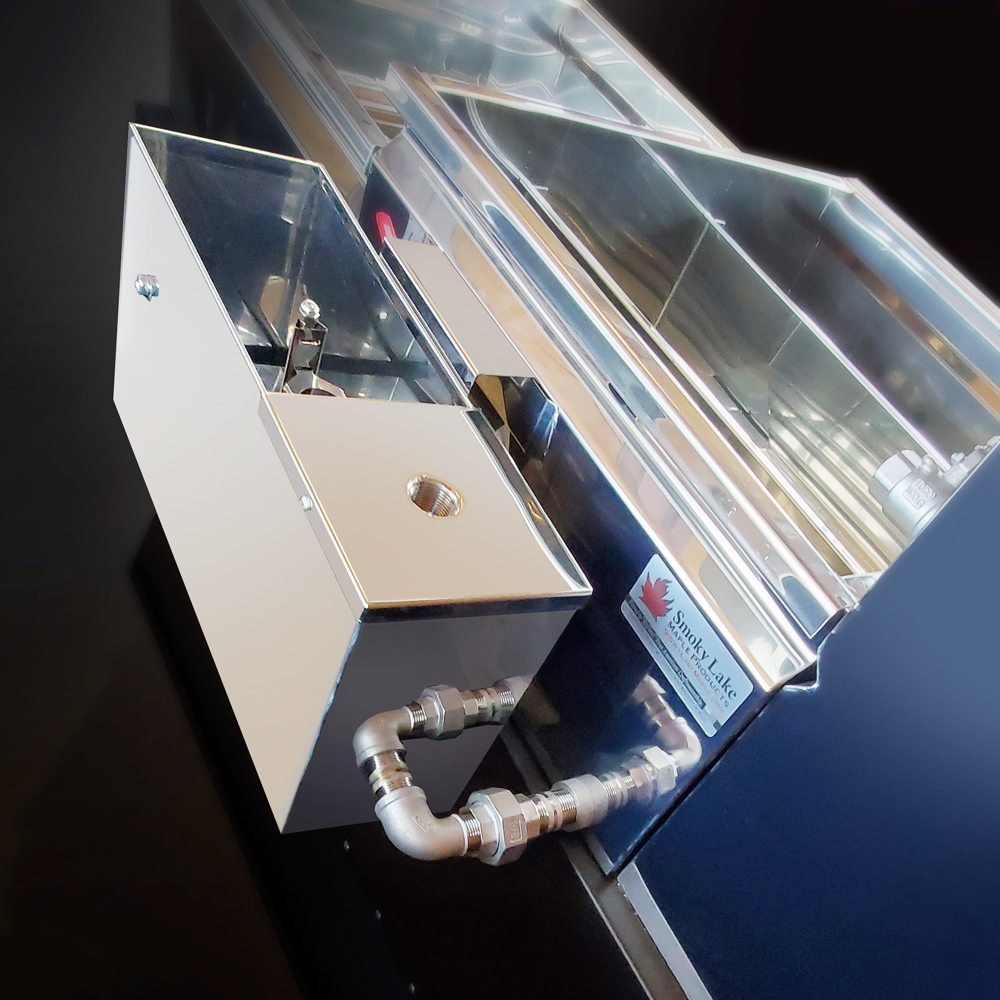

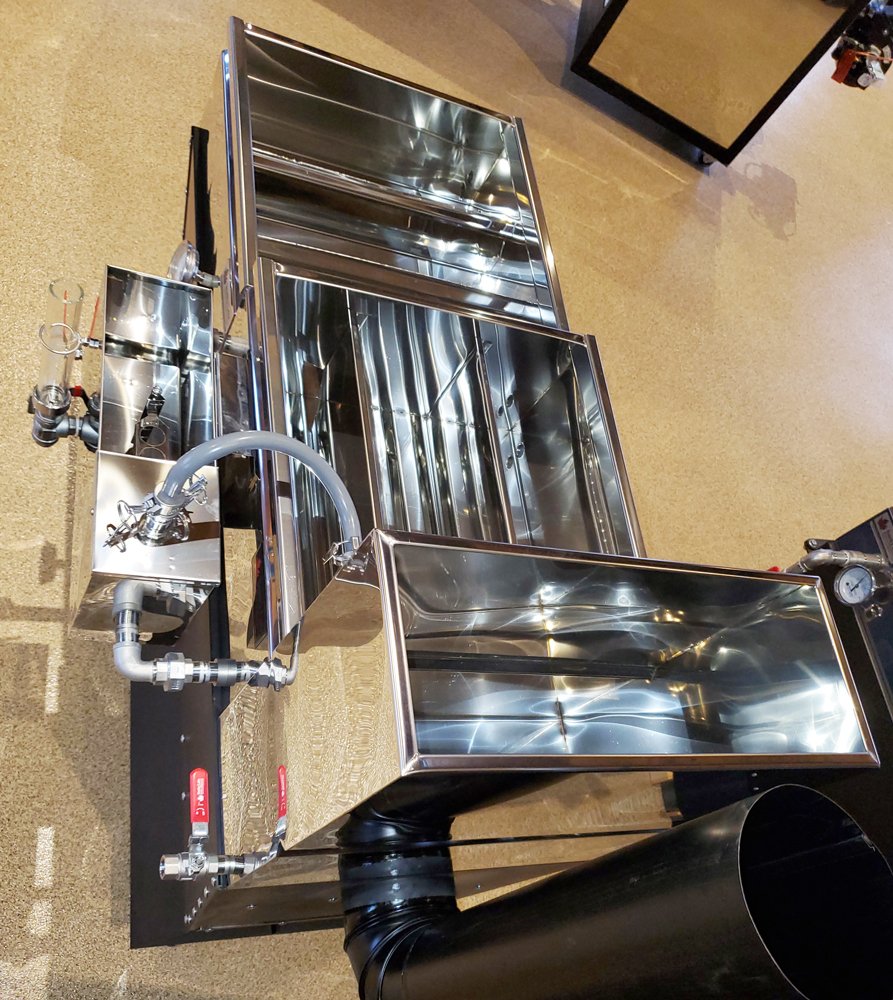

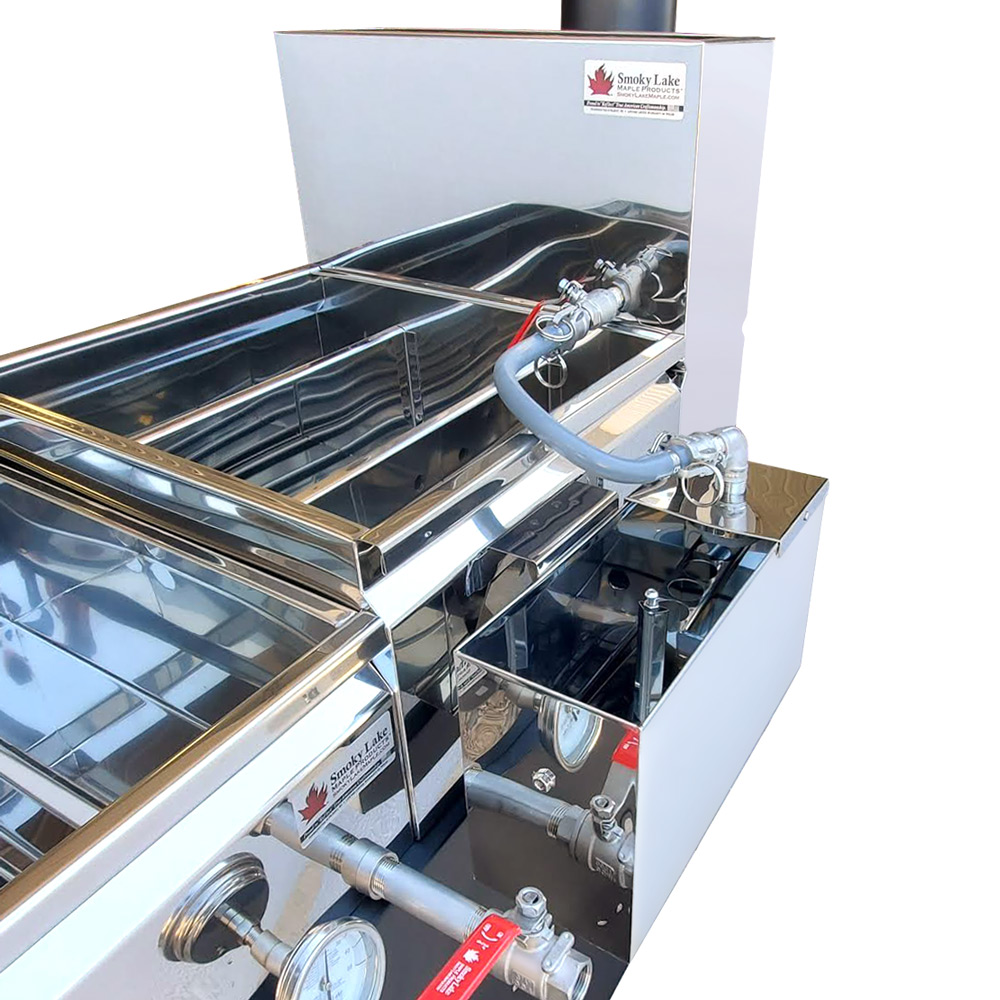

Inlet Float Box for Dauntless Pan Sets Float Box on Dauntless Pan Set Float Box with Hose Kit Hose Kit Connecting Float Box and Warming Pan on a Dauntless Evaporator

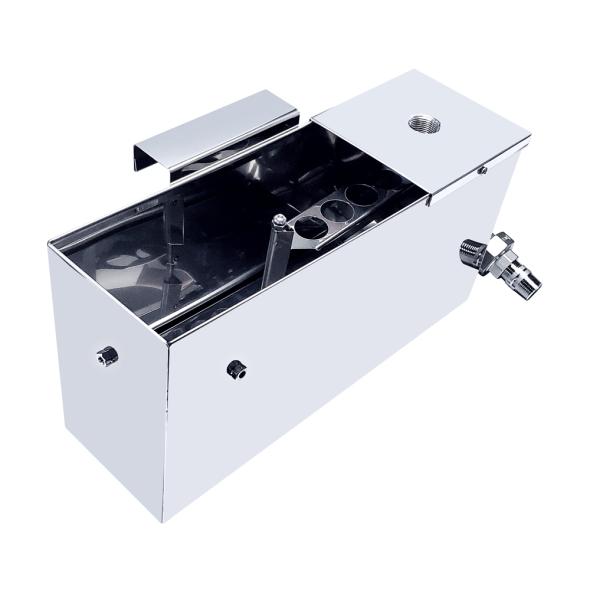

Inlet Float Box (For Dauntless Pan Sets)

$375.00

NOTE: At this time, some of our handcrafted equipment is experiencing extended lead times due to global shortages of some raw materials. Please feel free to contact us regarding questions of current inventory/availability (920-202-4500). Otherwise, the most efficient way to reserve your position in our fulfillment queue is to place your order here on the website and we’ll make sure you are able to hit the ground running next maple season. Thank you!

This style of float box regulates the sap depth in a standard Smoky Lake Dauntless Drop Flue Pan Set with right side draw-off.

Inlet Float Boxes include fittings and drain. Sight Glass, Hose Kit and Lid available separately.

Dauntless Drop Flue Pan Set

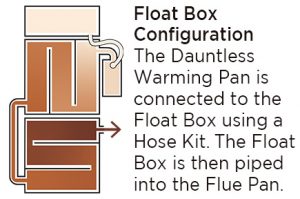

Path of Sap of a Dauntless Drop Flue Pan Set with Float Box

Float box Accessories

Deluxe Sight Glass for Float Box

This Sight Glass configuration is compatible with Smoky Lake Float Boxes.

  • Solid stainless steel base
  • Anti-turbulence orifice to keep the liquid in the sight glass steady even during a rolling boil
  • The glass is fire polished and shatter-resistant
  • The scale can be placed by you to ensure the level is perfectly calibrated
  • Drainable so you don’t have to worry about it freezing overnight



Lid for Inlet Float Box (Compatible w/Dauntless Pan Set)

  • Handcrafted in the USA
  • Food grade, 304 stainless steel, mirror finish
  • 5-1/8" wide x 10-7/8" long x 1/2" high
  • Edge is notched out to accommodate the Float Box hanger.

Temporarily unavailable

Hose Kit (Connects a Feed Pan to a Float Box)

Food Grade Hose

  • Length approximately 13-1/2"
  • Food grade silicone
  • Rated for temperatures up to 550ºF
  • Very flexible
  • Non-collapsing
  • NOTE: Please note that hose color may vary

Two Cam Lock Fittings

  • 304 stainless steel
  • 1/2" size
  • Easy on and off

90º Elbow Adaptor (1/2" to 3/4")

  • 304 stainless steel
  • The end that connects to your Cam Lock is 1/2" female
  • The end that connects to your Float Box is 3/4" male
  • This adaptor – if received before Feb 1, 2020 – may vary slightly in appearance compared to current kits

Description

SPECS

  • Body Dimensions: 16″ long x 5″ wide x 8″ high
  • Hanger Length: Hangs out 1-1/2″ from the pan
  • Pan Fittings: One 3/4″ NPT Fitting.
    (NOTE: The nipple required to connect to a Dauntless Drop Flue Pan Set is longer than what is used on a hybrid pan.)
  • Material: 304 Stainless Steel
  • Drain: 1/2″ male with Stainless Steel Valve
  • Inlet Port: 3/4″ female, Located on the top of the box
  • Install Position: Hanger on the left side of the pan
  • Compatibility:
    • Smoky Lake Dauntless Drop Flue Pan Set, Standard Configuration, Right Side Draw-Off
    • Custom Smoky Lake Hybrid Pro Pan with Left Side Draw-Off (The Float Box itself would be identical BUT the attachment nipple is shorter. Please contact us!)
  • Accessory Options: Deluxe Sight Glass, Hose Kit, Lid
