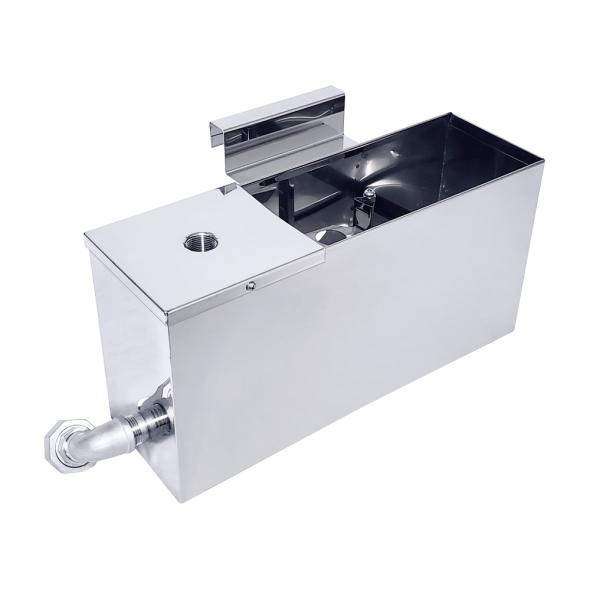

Inlet Float Box (For Divided Pans)

(2 customer reviews)


This style of float box regulates the sap depth in a standard Smoky Lake Divided Pan with right side draw-off. (See diagram below)

Path of Sap Flow in a Divided Pan

Inlet Float Boxes include fittings and drain.

Sight Glasses sold separately.

Which Type of Inlet Port is on Your Pan? *

The divided pan’s sap inlet port is going to be a stainless steel, female fitting. Depending on when your pan was made, this fitting could be one of two lengths. Please measure it as shown in the image below so we can guarantee your Float Box fits up perfectly.
Inlet Port on Flat and Hybrid Pans

Optional Upgrade

Deluxe Sight Glass for Float Box (Left)

This Sight Glass configuration is compatible with Smoky Lake Float Boxes.

  • Solid stainless steel base
  • Anti-turbulence orifice to keep the liquid in the sight glass steady even during a rolling boil
  • The glass is fire polished and shatter-resistant
  • The scale can be placed by you to ensure the level is perfectly calibrated
  • Drainable so you don’t have to worry about it freezing overnight


Hose Kit (Connects a Feed Pan to a Float Box)

Food Grade Hose

  • Length approximately 13-1/2"
  • Food grade silicone
  • Rated for temperatures up to 550ºF
  • Very flexible
  • Non-collapsing
  • NOTE: Please note that hose color may vary

Two Cam Lock Fittings

  • 304 stainless steel
  • 1/2" size
  • Easy on and off

90º Elbow Adaptor (1/2" to 3/4")

  • 304 stainless steel
  • The end that connects to your Cam Lock is 1/2" female
  • The end that connects to your Float Box is 3/4" male
  • This adaptor – if received before Feb 1, 2020 – may vary slightly in appearance compared to current kits


If you are seeking a Float Box for a StarCat Divided Pan (16″ x 30″), please see Float Box Model SL-INFBXSTAR.


  • Body Dimensions: 16″ long x 5″ wide x 8″ tall
  • Hanger Length: Holds the Float Box 1-1/4″ off the side of the pan
  • Pan Fittings: One 3/4″ NPT Fitting
  • Material: 304 Stainless Steel
  • Drain: 1/2″ male with Stainless Steel Valve
  • Inlet Port: 3/4″ female, Located on the top of the box
  • Install Position: Hangs on the left rim of the pan
  • Compatibility:
    • Smoky Lake Divided Pan with Right Side Draw-Off (standard configuration)
    • NOT compatible with StarCat Divided Pans. (See Model SL-INFBXSTAR)
    • NOT compatible with Badgerland Divided Pans.
  • Accessory Option: Deluxe Sight Glass
