ADO Attachment Hardware Bundle, Branched Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

$40.82

5

ADO Attachment Hardware Bundle, Branched Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

SKU: SL-ADOVADNT34

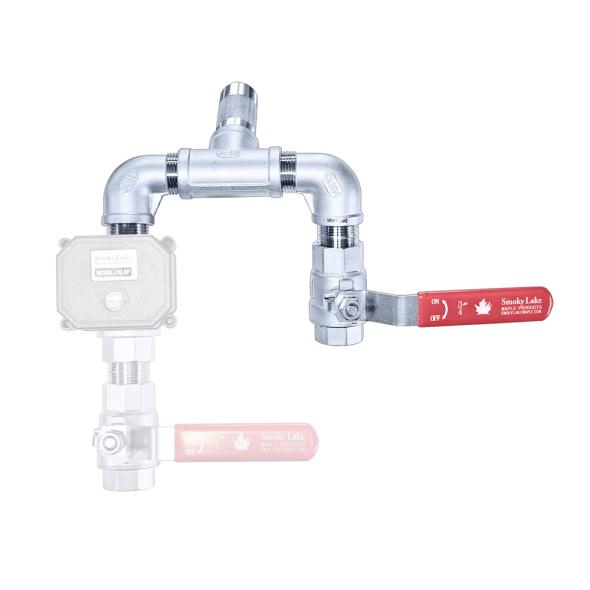

Branched Valve Assembly - Connecting 3/4 Pan Fitting to 3/4 ADO Valve
STARTING AT Bundle Discount!

$40.82
AVG, SHIPPING TIME

Timing is based on our current production timeline.

Unparalleled Support

See our Knowledge Base

Distributed by Smoky Lake

Your Partner in Maple

Tested and Approved

Premium Maple Equipment

Description

INSTRUCTIONS

  1. Attach the 3/4″ Close Nipple to your evaporator pan’s 3/4″ NPT female draw off port.

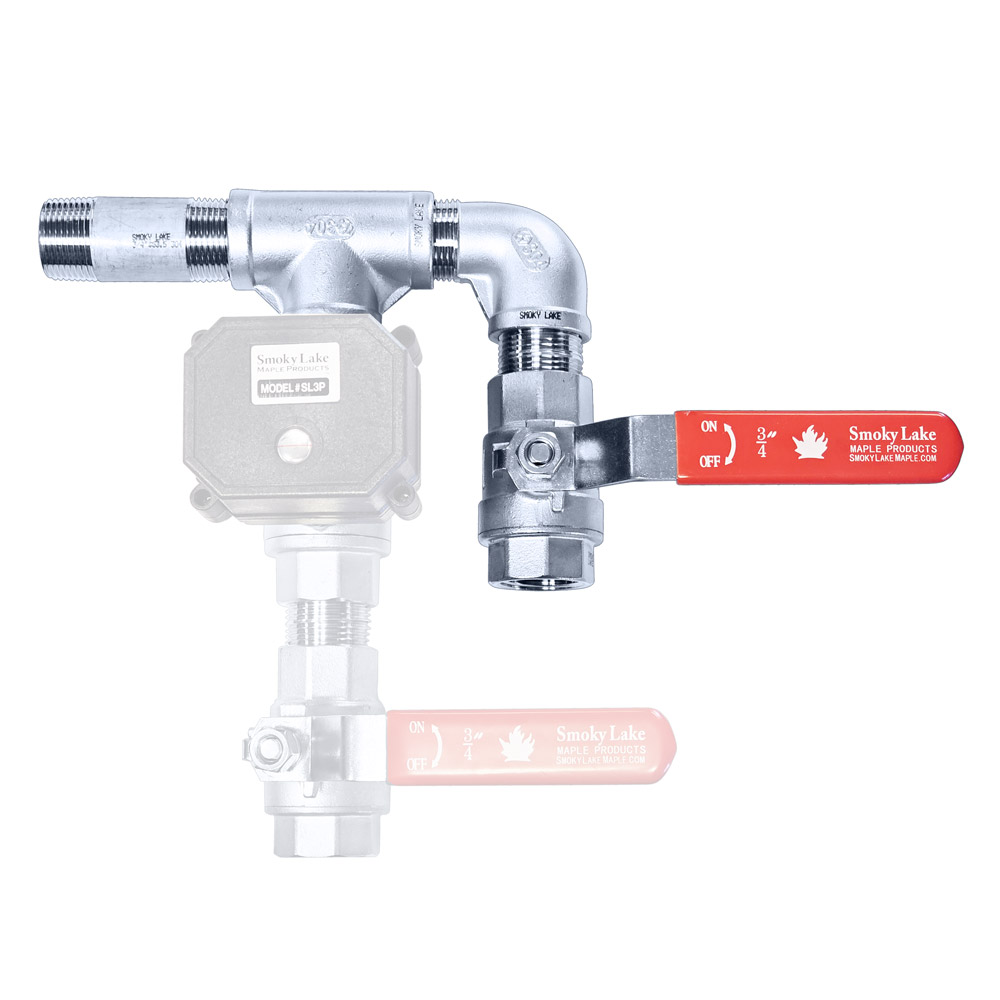

  2. Attach the Tee to the Nipple as shown in the photo.
  3. Attach the Street Elbow to the opposite end of the Tee. Below the Street Elbow, you will connect your Automated Valve, using the second Nipple.
  4. On the remaining branch of the Tee, connect the Nipple and Draw Off Valve from your evaporator pan. The valves should be pointing downward.

Tutorials and Tips
5

ADO Attachment Hardware Bundle, Branched Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

SKU: SL-ADOVADNT34
STARTING AT Bundle Discount!

$40.82
AVG, SHIPPING TIME

Timing is based on our current production timeline.

This combination of hardware is used to attach a 3/4″ Automated Valve (from a Smoky Lake Auto Draw-Off System) to a 3/4″ NPT female fitting on an evaporator pan.

This branched configuration allows you to manually draw off syrup from your pan while the Automated Valve remains closed. This is helpful for doing hydrometer density tests.



Street Elbow, 3/4" NPT

Street Elbow, 3/4" NPT

  • 90º Elbow
  • 304 Stainless Steel
  • 3/4" NPT (female threads on one end and male on the other end)
  • Class 150
Stainless Steel Nipple - 3/4" NPT

Nipple – 3/4" NPT, Close × 2

Made out of 304 stainless steel. This piece of hardware is used to connect two fittings that have female threads. The size of this nipple is 3/4" NPT.

Tee, 1" NPT

Tee, 3/4" NPT

  • 304 Stainless Steel
  • 1″ NPT (female threads on three ends)
  • Class 150
