ADO Attachment Hardware Bundle, Linear Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

$19.93

5

ADO Attachment Hardware Bundle, Linear Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

SKU: SL-ADOELBNIP34
Hardware for Attaching an ADO Valve to a 3/4" Pan Fitting
STARTING AT Bundle Discount!

$19.93
AVG, SHIPPING TIME

Timing is based on our current production timeline.

Unparalleled Support

See our Knowledge Base

Distributed by Smoky Lake

Your Partner in Maple

Tested and Approved

Premium Maple Equipment

Description

INSTRUCTIONS

  1. Attach the 3/4″ Street Elbow to your evaporator pan’s draw off port.
  2. Connect your evaporator pan’s Draw Off Valve and Nipple under the Street Elbow. This valve will be used to throttle back the flow of the syrup so that you can create a slow, controlled stream.
  3. Under the Draw-Off Valve, you will attach a Nipple, which has 3/4″ threads both ends.
  4. Attach your Auto Draw-Off System’s 3/4″ NPT Automated Valve to the 3/4″ Nipple. Make sure to remove the Automated Valve and clean it after each use.

Tutorials and Tips
5

ADO Attachment Hardware Bundle, Linear Style, Connects a 3/4" Pan Fitting to a 3/4" Valve

SKU: SL-ADOELBNIP34
STARTING AT Bundle Discount!

$19.93
AVG, SHIPPING TIME

Timing is based on our current production timeline.

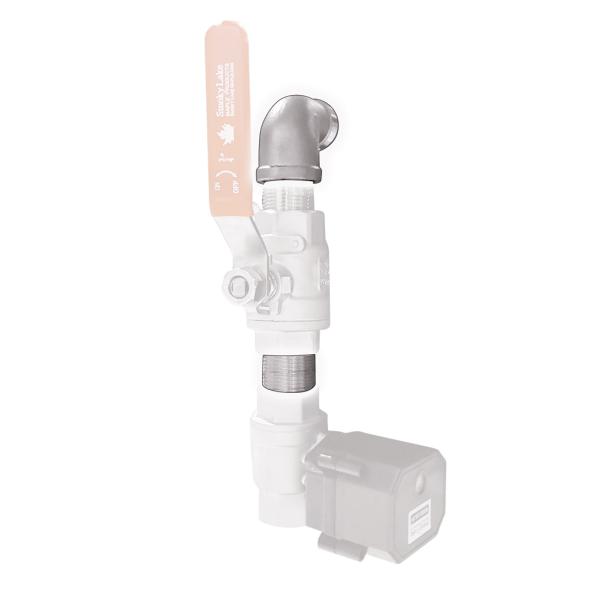

These two hardware pieces are used to attach a 3/4″ Automated Valve (from a Smoky Lake Auto Draw-Off System) to a 3/4″ NPT female fitting on an evaporator pan.

*Photo is similar.

Average Shipping time
car
Free Shipping for Continental US

Description

INSTRUCTIONS

  1. Attach the 3/4″ Street Elbow to your evaporator pan’s draw off port.
  2. Connect your evaporator pan’s Draw Off Valve and Nipple under the Street Elbow. This valve will be used to throttle back the flow of the syrup so that you can create a slow, controlled stream.
  3. Under the Draw-Off Valve, you will attach a Nipple, which has 3/4″ threads both ends.
  4. Attach your Auto Draw-Off System’s 3/4″ NPT Automated Valve to the 3/4″ Nipple. Make sure to remove the Automated Valve and clean it after each use.

Tutorials and Tips
