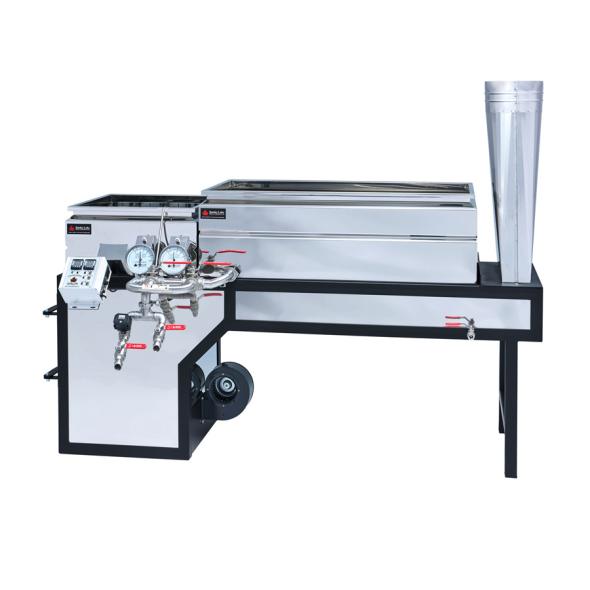

Corsair with Drop Flue Pan Set, SSR Configuration

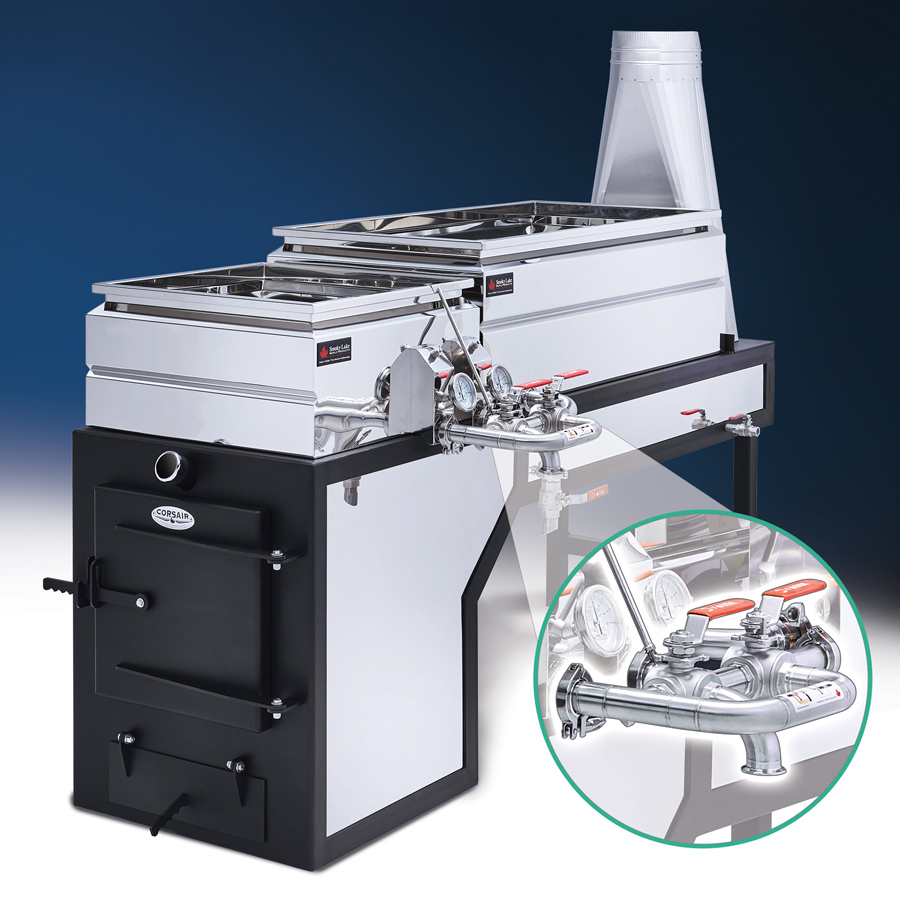

360 Corsair with Drop Flue Pan Set, SSR Configuration Path of Sap in a Drop Flue Pan Set + Same Side Reverse System Close Up of an SSR System. Running a second thermometer is optional. Draft Door on a Corsair Arch Standard Grates in a Corsair Arch It's easy to add a blower to the Corsair Arch Airtight Corsair Firebox Door video

Corsair Evaporator w/Drop Flue Pan Set, Same Side Reverse – Customize It!

Free ShippingFREE SHIPPING in the continental USA.*
*Please contact us for international shipping quotes.

Discounts for Local PickupDISCOUNTS AVAILABLE for local pick up.
See our discounts list or contact us for details.

Discounts for Local PickupLEAD TIMES & ORDERING FAQ.
This is a handcrafted product, made just for you!


SKU: SL-CRSDFSSR Category:

Description

Pan Instructions Bricking a Corsair Arch

Drop Flue Pan Set SSR

SSR DROP FLUE PAN SET FEATURES

  • High Output Flue Pan
    • Flues = 7″ Deep
    • Wall Height = 14″ above the flues
    • Contoured Walls
      (Adds strength to the pan)
    • 360º Built-In Handles
    • Stainless steel divider
      (Promotes steady, continuous flow and more regular draw-offs)
    • Float Box w/Fittings & Drain
    • Drain Manifold
      (Completely drains all of the flues)
  • Cross Flow Front Pan
    • Positive Draw-Off Boxes with Angled Accessory Ports
    • Built-in 360º Handles
    • Optimal Rear Syrup Draw-Off
      (Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
    • Same Side Reverse System
      (Swing two handles to reverse flow. Learn more.)
    • Structurally Formed-in Syrup Pan Dividers
  • Free Accessory Pack Included!
    (Learn more as you configure your pan below.)
  • Additional Features and Benefits
    • 22 ga. Mirror Finish Stainless Steel
    • Smooth, Hemmed Edges
    • Lifetime Limited Warranty on TIG Welds
    • Handcrafted in USA
    • Quick Start Guide

Corsair Arch

This revolutionary evaporator design is fully convertible from conventional draft to forced draft in an instant. The airtight front gives you a critical advantage in efficiency and performance whether you’re running the forced air kit or if you choose to keep things simple with natural aspiration.

The large loading door nicely compliments the large combustion chamber. This air-tight door will help prevent cold air from being pulled along the bottom of pan, negatively effecting evaporation rate and efficiency.

The Corsair arch is fully steel framed. The entire perimeter is built as strong as possible, giving you confidence when filling the pans above it with your precious liquid and igniting an intense fire inside it. Additionally, the arch fits the geometry of whatever pan set you plan to use on it, forcing the pan to take full advantage of the heat created within.

As of May 2, 2022, we are transitioning all of our Corsair Arches to include the Stainless Steel Upgrade. This feature is loved not only for its aesthetic beauty, but most important for its durability. Stainless steel resists rust and is extremely resilient in intense heat. It is guaranteed to outlive galvanized steel.

The Stainless Steel upgrade applies to the Corsair Arch Sides, Base Stack and Stack Pipe as called out in the photo below.

Insulating the Arch

See our Brick and Insulation support pages for more information about brick configurations. We also offer a support guide for Brick Batter (High Temp Mortar).

Please note: The Corsair air-tight firebox door will come pre-insulated for you. The ceramic blanket, firebrick and mortar which required to insulate/protect the remainder of the arch is sold separately.

Four Reasons the Door Design is Critical

1Competitor doors/fireboxes are often much too small. In contrast, the 16″ x 16″ Corsair doorway makes it easier to load wood, and generate more heat.

2If you ever want to upgrade to Forced Draft — either now or in the future — you need an airtight door. With Corsair, you’re all set.

Regardless whether you have Forced Draft or Natural Draft, an airtight door increases efficiency. A leaky door works against you by allowing cold air to enter the firebox and cool your pans.

4Our competitors’ cast iron door fronts have been cracking since the 1800s. The Smoky Lake Corsair door will not. We guarantee it.

Compare the Durability


Forced Draft Kit Option

Forced Draft Kit includes domed gratesBENEFITS:

  • Much higher evaporation rate compared to natural draft.
  • Easier to burn larger/unseasoned wood. This means you won’t have to cut your firewood as fine and you can burn wood that is less perfect.
  • Increased agility. You will be able to shut down your evaporator much faster because it allows firewood to burn quicker and more completely.

KIT INCLUDES:

The forced draft option includes upgraded domed cast iron grates and an electric blower. If ordered at this time, the blower will come pre-mounted to the arch. Otherwise, if you order the arch as conventional draft, the back of the Corsair firebox will include a perforated knock out and mounting studs to accommodate a forced air kit in the future. If the time comes when you need more performance, just remove the knock out, mount the blower and replace the steel grates with the kit’s new perforated, domed cast iron grates.


Standard Configuration Vs Same Side Reverse System

Drop Flue Configuration Differences




Freight Shipping & Timing

Note that the speed of freight shipping is dependent on our current inventory/work loads, the destination, the weather and also our freight carriers’ current load volumes/routes. Please provide a commercial shipping address if possible. See freight terms for more details.

Smoky Lake was awarded “Exporter of the Year” by the SBA in 2020. Please contact us for an international shipping quote. Smoky Lake ships internationally at a discounted rate.
