- High Output Flue Pan
- Flues = 7″ Deep
- Wall Height = 14″ above the flues
- Contoured Walls
(Adds strength to the pan)
- 360º Built-In Handles
- Stainless steel divider
(Promotes steady, continuous flow and more regular draw-offs)
- Float Box w/Fittings & Drain
- Drain Manifold
(Completely drains all of the flues)
- Cross Flow Front Pan
- Positive Draw-Off Boxes with Angled Accessory Ports
- Built-in 360º Handles
- Optimal Rear Syrup Draw-Off
(Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
(Turn the pan 180º to reverse flow. Learn more.)
- Structurally Formed-in Syrup Pan Dividers

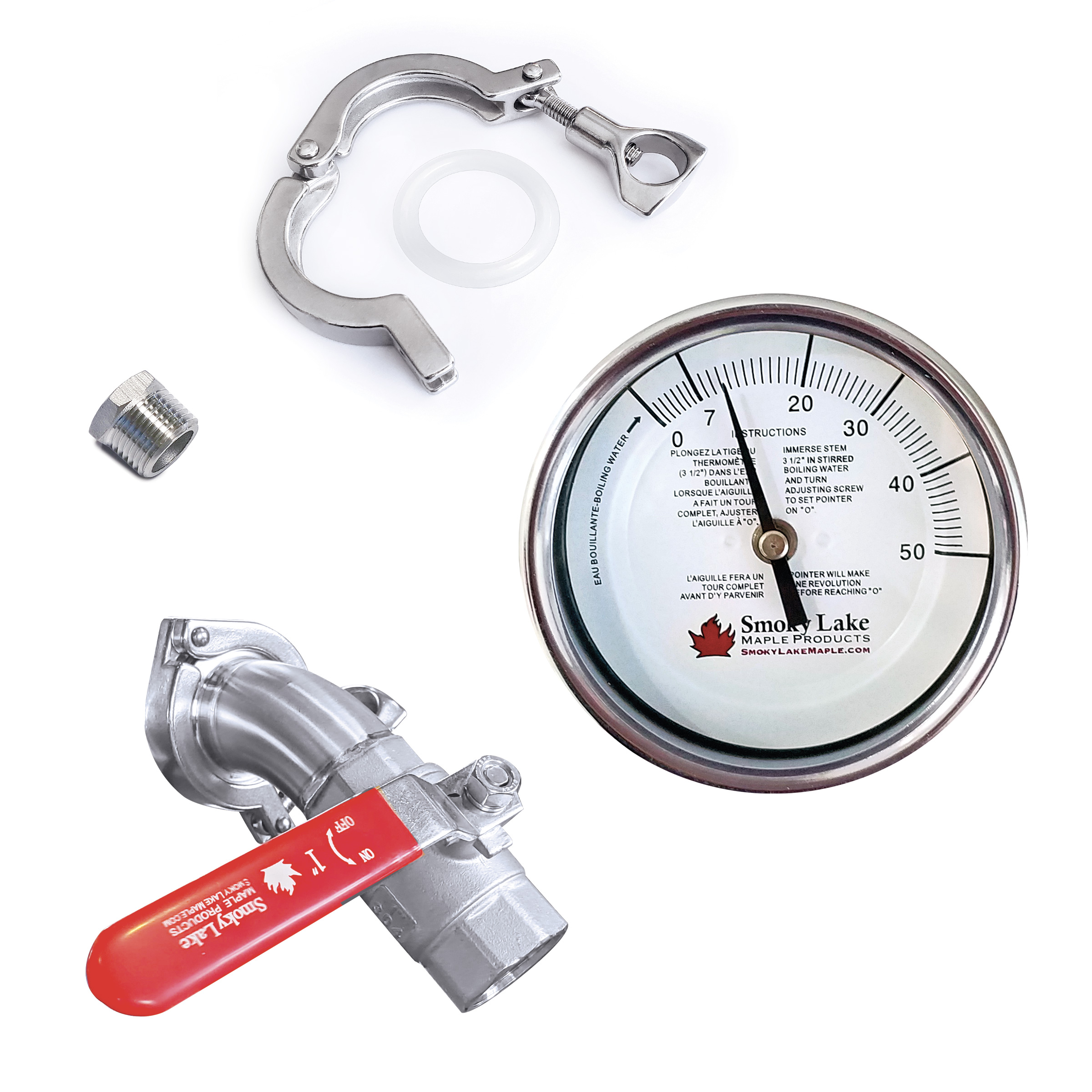

- Free Accessory Pack Included!
(We’ll dress your pan’s ports with premium hardware! More details below.)
- Additional Features and Benefits
- 22 ga. Mirror Finish Stainless Steel
- Smooth, Hemmed Edges
- Lifetime Limited Warranty on TIG Welds
- Handcrafted in USA
- Quick Start Guide

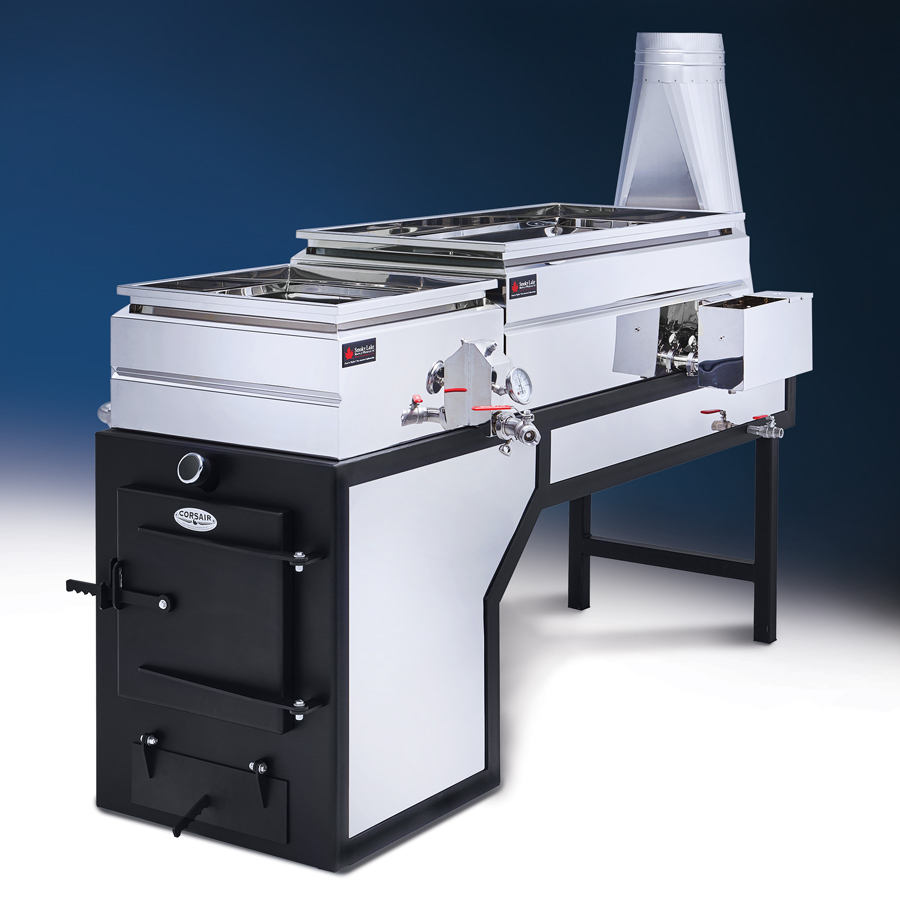

This revolutionary evaporator design is fully convertible from conventional draft to forced draft in an instant. The airtight front gives you a critical advantage in efficiency and performance whether you’re running the forced air kit or if you choose to keep things simple with natural aspiration.
The large loading door nicely compliments the large combustion chamber. This air-tight door will help prevent cold air from being pulled along the bottom of pan, negatively effecting evaporation rate and efficiency.
The Corsair arch is fully steel framed. The entire perimeter is built as strong as possible, giving you confidence when filling the pans above it with your precious liquid and igniting an intense fire inside it. Additionally, the arch fits the geometry of whatever pan set you plan to use on it, forcing the pan to take full advantage of the heat created within.
As of May 2, 2022, we are transitioning all of our Corsair Arches to include the Stainless Steel Upgrade. This feature is loved not only for its aesthetic beauty, but most important for its durability. Stainless steel resists rust and is extremely resilient in intense heat. It is guaranteed to outlive galvanized steel.
The Stainless Steel upgrade applies to the Corsair Arch Sides, Base Stack and Stack Pipe as called out in the photo below.
Insulating the Arch
Please note: The Corsair air-tight firebox door will come pre-insulated for you. The ceramic blanket, firebrick and mortar which required to insulate/protect the remainder of the arch is sold separately.
Four Reasons the Door Design is Critical
Forced Draft Kit Option
- Much higher evaporation rate compared to natural draft.
- Easier to burn larger/unseasoned wood. This means you won’t have to cut your firewood as fine and you can burn wood that is less perfect.
- Increased agility. You will be able to shut down your evaporator much faster because it allows firewood to burn quicker and more completely.
The forced draft option includes upgraded domed cast iron grates and an electric blower. If ordered at this time, the blower will come pre-mounted to the arch. Otherwise, if you order the arch as conventional draft, the back of the Corsair firebox will include a perforated knock out and mounting studs to accommodate a forced air kit in the future. If the time comes when you need more performance, just remove the knock out, mount the blower and replace the steel grates with the kit’s new perforated, domed cast iron grates.

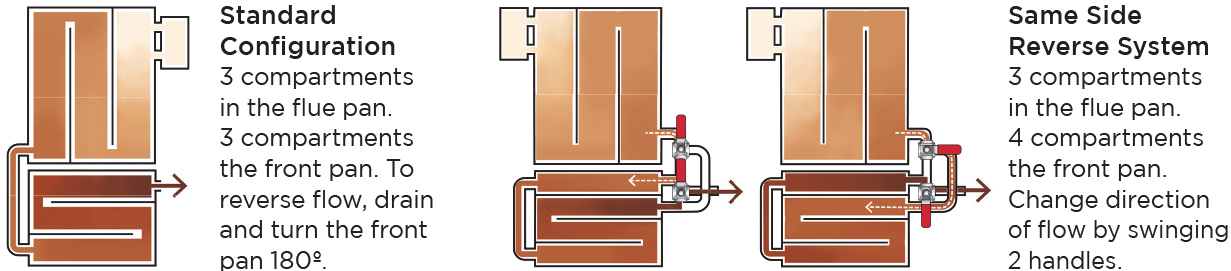

Standard Configuration Vs Same Side Reverse System
Freight Shipping & Timing
Note that the speed of freight shipping is dependent on our current inventory/work loads, the destination, the weather and also our freight carriers’ current load volumes/routes. Please provide a commercial shipping address if possible. See freight terms for more details.
Smoky Lake was awarded “Exporter of the Year” by the SBA in 2020. Please contact us for an international shipping quote. Smoky Lake ships internationally at a discounted rate.
