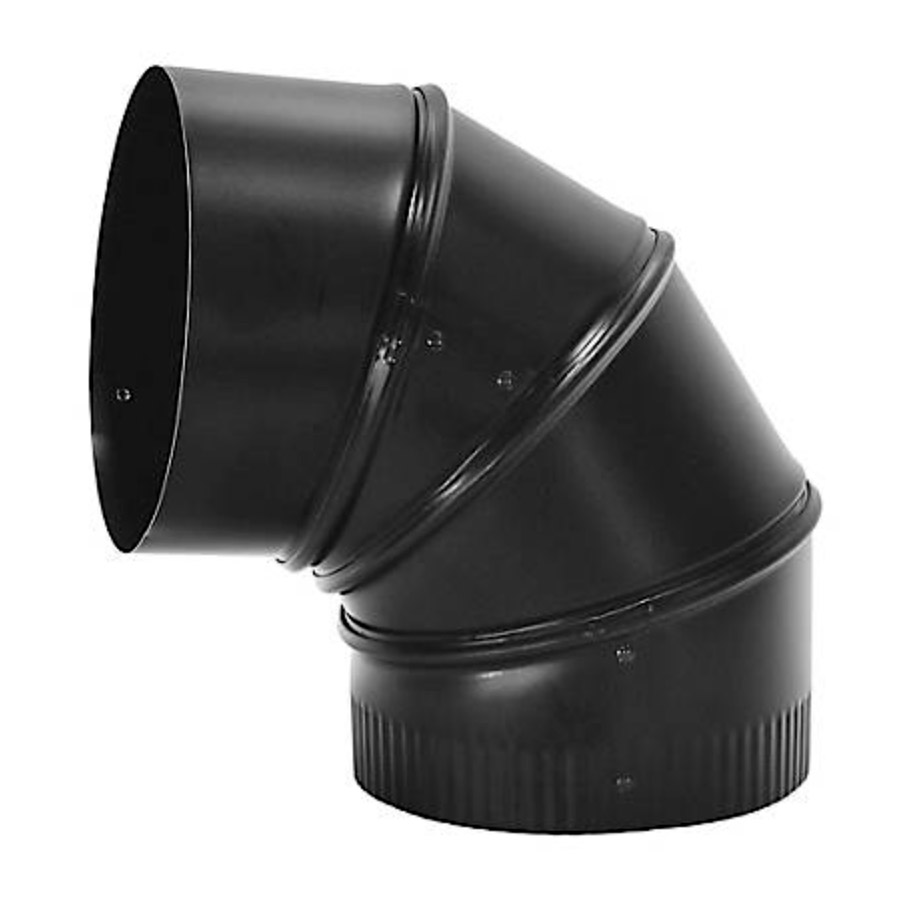

Stove Pipe Elbow, “Break-Away”, 5" Diameter

PRICE$25.00

5

Stove Pipe Elbow, “Break-Away”, 5" Diameter

SKU: IM-BM0013
Elbow for StarCat and Dauntless Evaporators
PRICE

$25.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Unparalleled Support

Distributed by Smoky Lake

Your Partner in Maple

Tested and Approved

Premium Maple Equipment

Description

  • Thickness: 24 gauge
  • Finish: Pre-painted satin black
  • Material: Steel construction
  • Assembly Method: Pre-assembled
  • Brand: Imperial Manufacturing
  • Maximum Temperature: 800ºF
  • Minimum Clearance To Combustible Materials: 18″

INSTALLATION

  • If necessary turn the elbow segments so that it is creating a 90º angle
  • Insert the crimped male end of the elbow into the female hub on the back of the arch
  • Secure with sheet metal screws

WARNINGS

  • Pipe is HOT during and after operation. DON’T TOUCH!
  • The minimum clearance to combustible materials is 18″.
  • Stack pipe should always be supported/secured.

Tutorials and Tips

5

Stove Pipe Elbow, “Break-Away”, 5" Diameter

SKU: IM-BM0013
PRICE

$25.00

AVG, SHIPPING TIME

Timing is based on our current production timeline.

This is the single wall, 5″ diameter Elbow which is used on the 16″ x 30″ Gas-Fired Finisher/Evaporators. It has a durable 24 gauge steel construction, and is pre-painted a satin finish black. The crimped male end fits into the hub on the back of the Gas-Fired Finisher/Evaporator Arches.


Average Shipping time
car
Free Shipping for Continental US

Description

  • Thickness: 24 gauge
  • Finish: Pre-painted satin black
  • Material: Steel construction
  • Assembly Method: Pre-assembled
  • Brand: Imperial Manufacturing
  • Maximum Temperature: 800ºF
  • Minimum Clearance To Combustible Materials: 18″

INSTALLATION

  • If necessary turn the elbow segments so that it is creating a 90º angle
  • Insert the crimped male end of the elbow into the female hub on the back of the arch
  • Secure with sheet metal screws

WARNINGS

  • Pipe is HOT during and after operation. DON’T TOUCH!
  • The minimum clearance to combustible materials is 18″.
  • Stack pipe should always be supported/secured.

Tutorials and Tips
