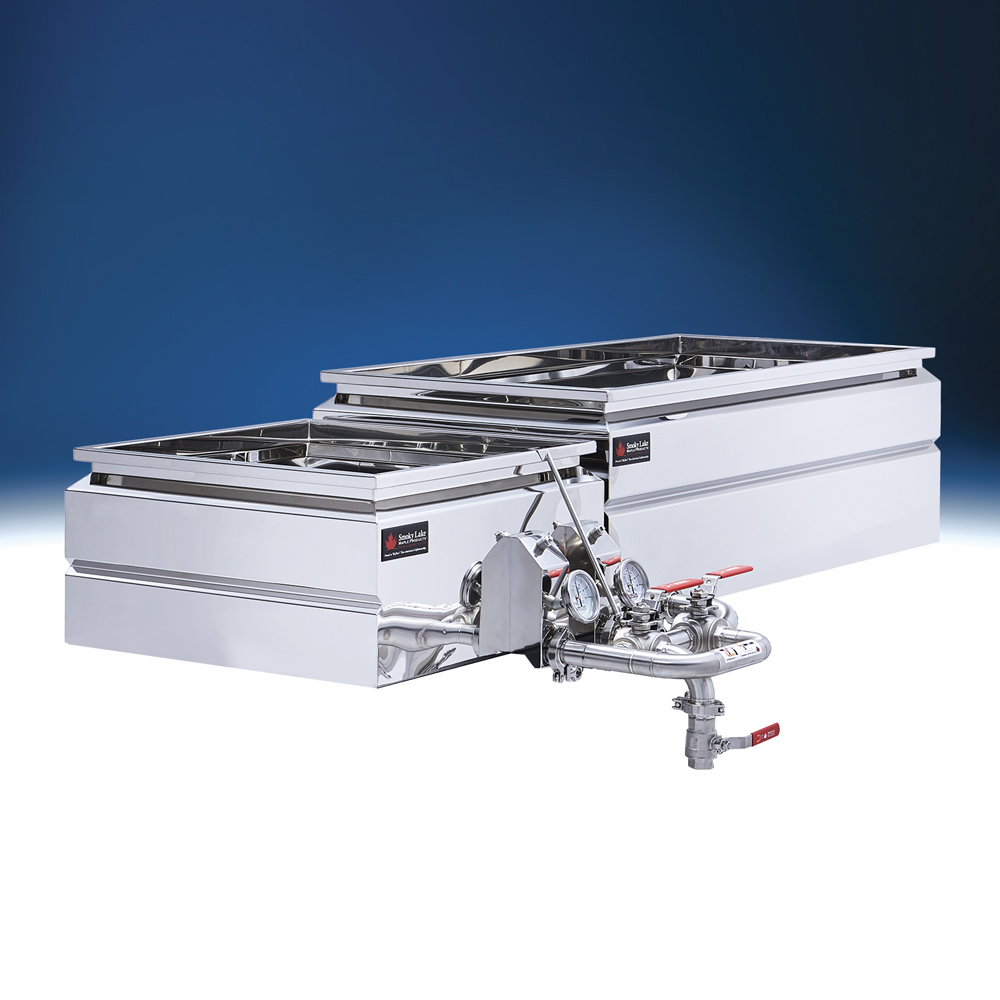

High Output Drop Flue Pan Set, SSR Configuration – Customize It!

FROM Original price was: $4,625.00.Current price is: $4,600.00.

5

High Output Drop Flue Pan Set, SSR Configuration – Customize It!

SKU: SL-HODROPSSR
Drop Flue Pan Set with SSR

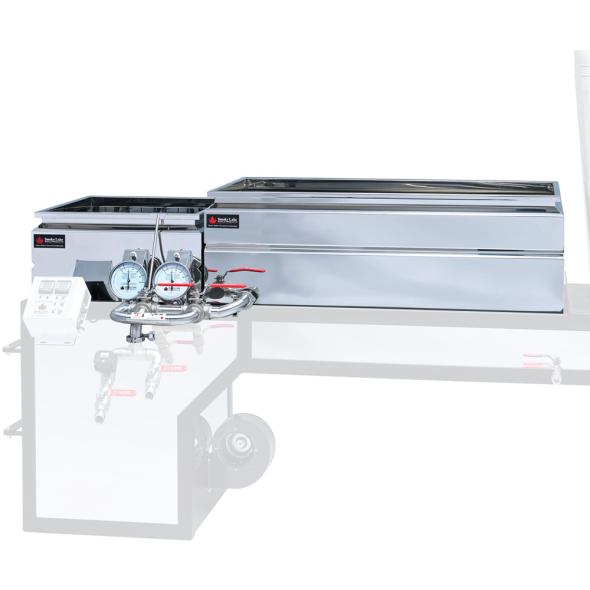

360 Path of Sap in a Drop Flue Pan Set + Same Side Reverse System Corsair with a Drop Flue Pan Set
STARTING AT

From: Original price was: $4,625.00.Current price is: $4,600.00.

AVG, SHIPPING TIME

Timing is based on our current production timeline.

Free Shipping

In Continental USA

Limited Lifetime Warranty

On TIG Welds

Discounts Available

For Bundling & Add-Ons

Description

Drop Flue Pan Set SSR

STANDARD FEATURES

  • High Output Flue Pan
    • Flues = 7″ Deep
    • Wall Height = 14″ above the flues
    • Contoured Walls
      (Adds strength to the pan)
    • 360º Built-In Handles
    • Stainless steel divider
      (Promotes steady, continuous flow and more regular draw-offs)
    • Float Box w/Fittings & Drain
    • Drain Manifold
      (Completely drains all of the flues)
  • Cross Flow Front Pan
    • Positive Draw-Off Boxes with Angled Accessory Ports
    • Built-in 360º Handles
    • Optimal Rear Syrup Draw-Off
      (Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
    • Same Side Reverse System
      (Swing two handles to reverse flow. Learn more.)
    • Structurally Formed-in Syrup Pan Dividers
  • Free Accessory Pack Included!
    (We’ll dress your pan with premium hardware! More details below.)
  • Additional Features and Benefits
    • 22 ga. Mirror Finish Stainless Steel
    • Smooth, Hemmed Edges
    • Lifetime Limited Warranty on TIG Welds
    • Handcrafted in USA
    • Quick Start Guide

Standard Configuration Versus Same Side Reverse System

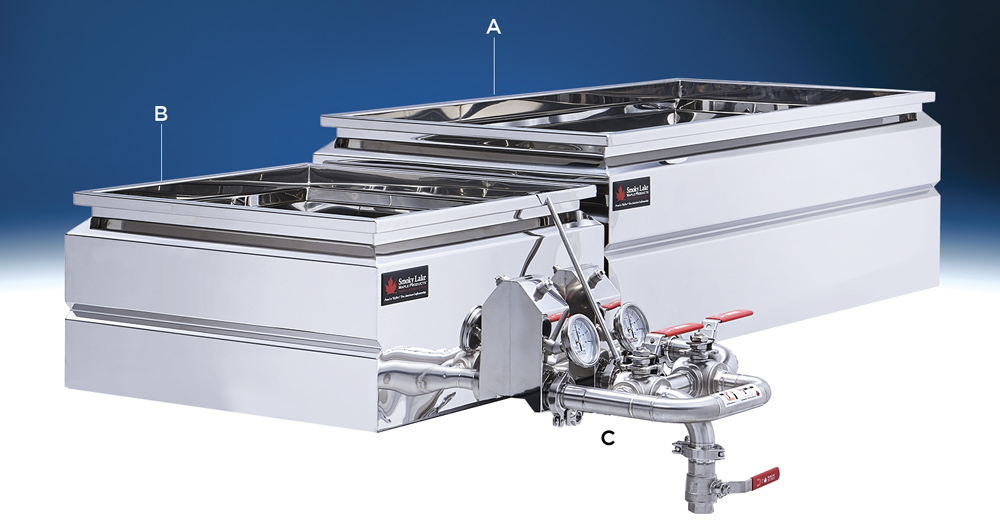

The Drop Flue Pan Set diagrams below illustrate the difference between a Drop Flue Pan Set with and without Same Side Reverse. (Please note that the configuration of the 2′ x 4′ Pan Set with SSR is slightly different, but still follows the same general concept as below.)

On the standard configuration, you can reverse the flow of sap in the front pan by turning it 180º. In contrast, the Same Side Reverse System allows you to change direction of flow without ever moving the pan or dealing with plugs. You would simply swing the handles of two specialized Ball Valves.

The purpose of reversing the flow in the front pan is to eliminate the build-up of sediments on the floor of the pan. The frequency in which you will need to reverse the flow is dependent upon the speed at which sediments are being deposited the floor of the front pan. Typical volume of sediment varies greatly from region to region.

Standard Vs SSR on a Drop Flue Pan Set




Freight Shipping

Note that the speed of freight shipping is dependent on our current inventory, the destination, the weather and also our freight carriers’ current load volumes. Please provide a commercial shipping address if possible. We will let you know if we foresee any problems. See freight terms for more details.

Smoky Lake was awarded “Exporter of the Year” by the SBA in 2020. Please contact us for an international shipping quote. Smoky Lake ships internationally at a discounted rate.



Discounts

All High Output Pans receive a free Pan Accessory Kit with clamps, gaskets, thermometer and plugs for unused ports. A Stiffened Gasket is also included at no additional charge.

Value-Added Details

Handcrafted by Artisans in Wisconsin

Shipping Details

Free Shipping in the Continental USA

This is a freight item. Most often these pans will travel via our white glove carriers.

Tutorials and Tips
