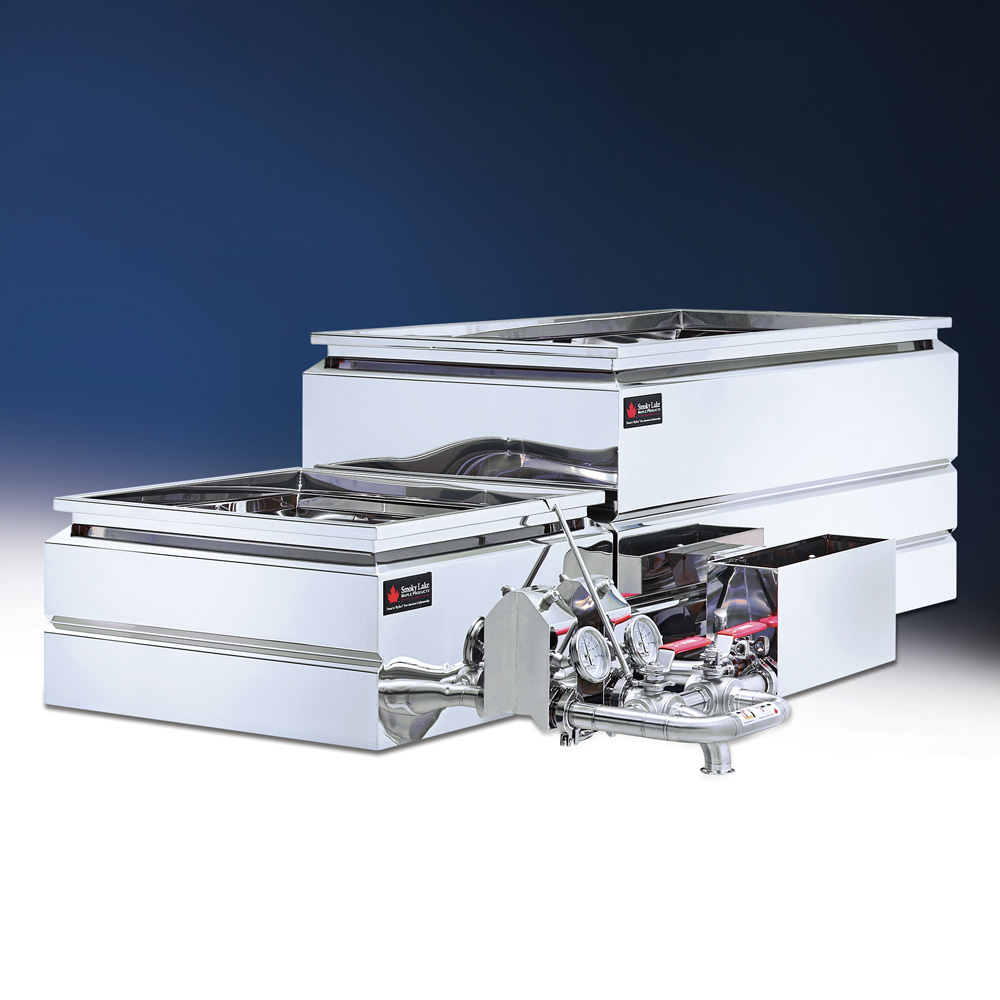

Raised Flue Pan Set with SSR Configuration

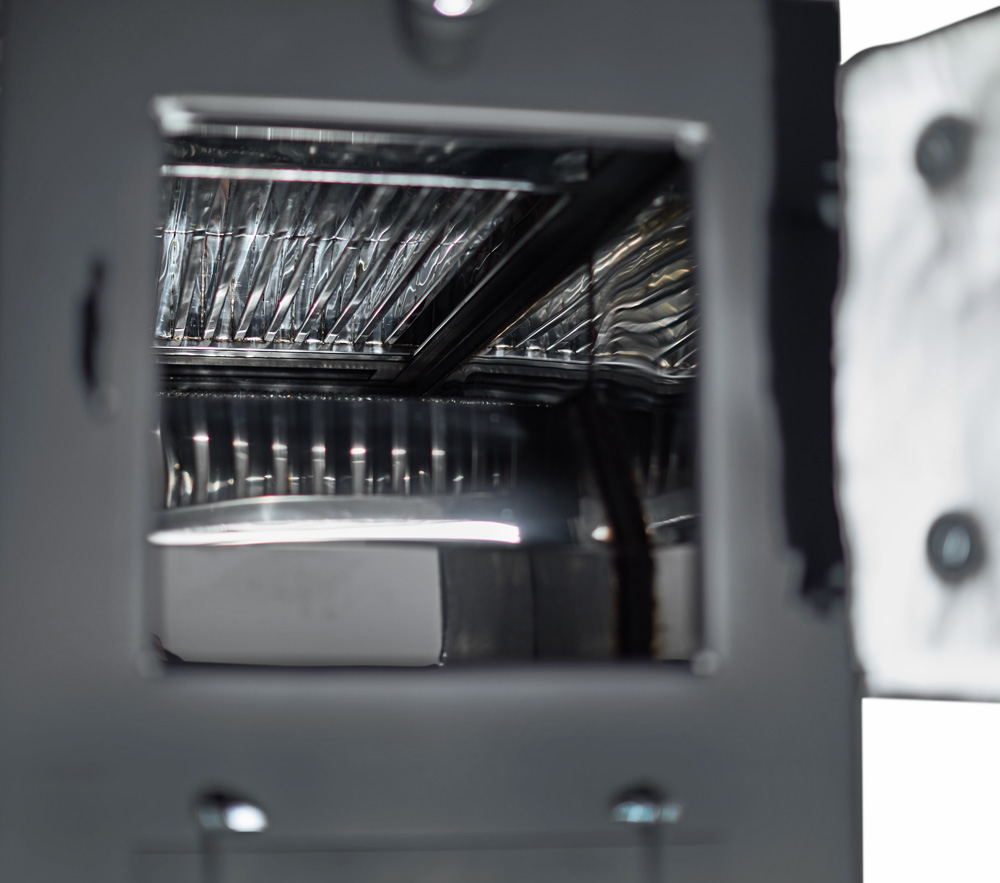

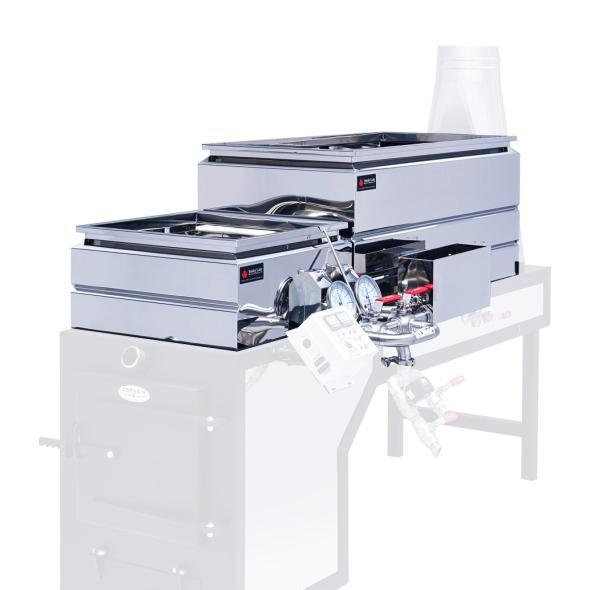

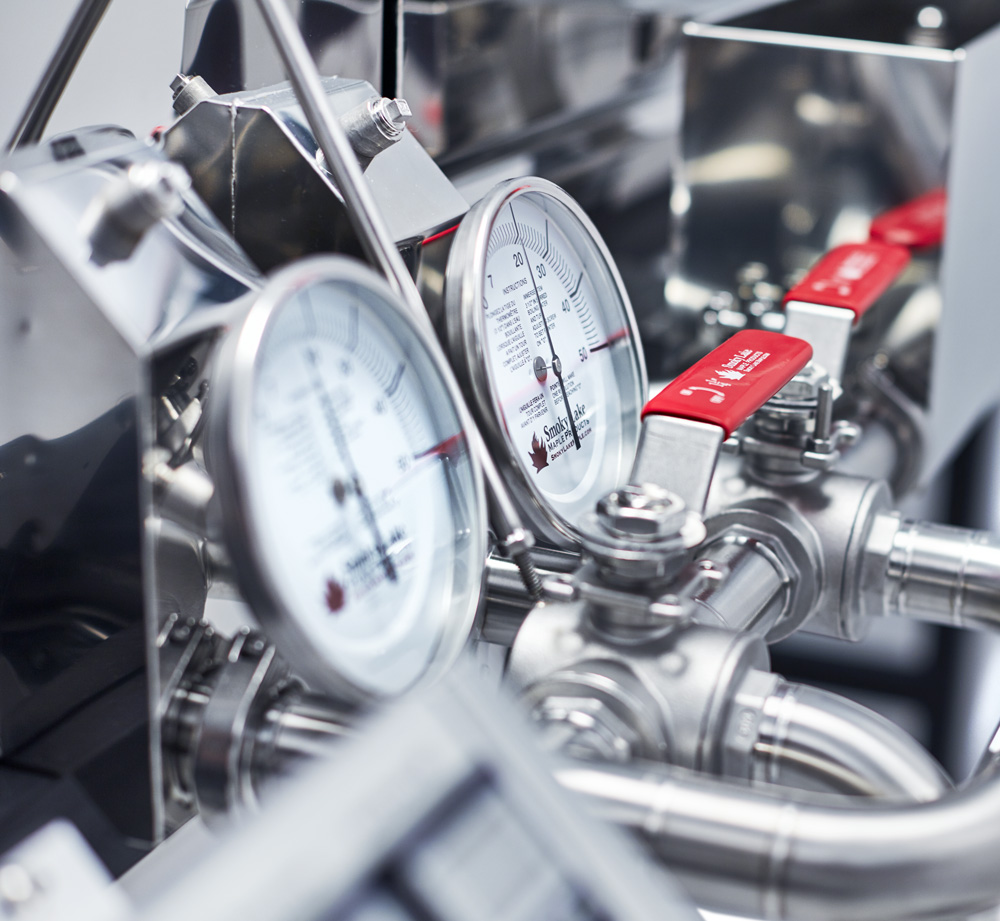

360 Raised Flue Pan Set with SSR Configuration Same Side Reverse System on a Raised Flue Pan Set Underside of a Raised Flue Pan Set - Looking into a Corsair Firebox Close Up of an SSR System. Running a second thermometer is optional.

High Output Raised Flue Pan Set, SSR Configuration – Customize It!

From: $4,550.00

Free ShippingFREE SHIPPING in the continental USA.*
*Please contact us for international shipping quotes.

Discounts for Local PickupDISCOUNTS AVAILABLE for local pick up.
See our discounts list or contact us for details.

*Timing and shipping details.


  • High Output Flue Pan
    • Flues = 7″ Deep
    • Wall Height = 21″
      (Includes a contoured profile for added strength)
    • 360º Built-In Handles
    • Stainless steel divider
      (Promotes steady, continuous flow and more regular draw-offs)
    • Inlet Float Box w/Fittings & Drain
      (Auto-regulates sap depth in the Flue Pan. Customize your drain port accessory in the options below.)
  • Cross Flow Front Pan
    • Same Side Reverse System
      (Reverse the flow simply by flipping two handles. Learn more.)
    • Positive Draw-Off Boxes with Angled Accessory Ports
    • Built-in 360º Handles
    • Optimal Rear Syrup Draw-Off
      (Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
    • Structurally Formed-in Syrup Pan Dividers
    • 12″ wall height
    • Transfer Float Box w/Fittings & Drain
      (Auto-regulates sap depth in the Front Pan. Customize your drain port accessory in the options below.)
  • Free Accessory Pack Included!
    (We’ll dress your pan’s ports with premium hardware! More details below.)
  • Additional Features and Benefits
    • 22 ga. Mirror Finish Stainless Steel
    • Smooth, Hemmed Edges
    • Lifetime Limited Warranty on TIG Welds
    • Handcrafted in USA
    • Quick Start Guide

SKU: SL-HORFSSR Categories: , ,


TIMING: This is a handcrafted item. Our artisans will be working as efficiently as possible without sacrificing any of the quality and craftsmanship we have built our name on. The fastest way to secure your position in line is to place an order here on the website. Pans will be handcrafted in batches in the order in which they are received.

SHIPPING: To ensure that your equipment arrives safely, your freight order will be scheduled with the next available white glove carrier heading to your area (unless you opt to pick up). Orders placed in Summer 2021 are on track to be delivered in plenty of time to hit the ground running in the 2022 maple season. Thank you for your patience. We promise it will be worth the wait.


  • Full Payment: Pay by credit card or check via the website.
  • Partial Payment (Deposit): Select “Pay by Check” on the check out page or call us at (920) 202-4500.
  • Financing by Northstar Leasing

Thank you for supporting American-made products! We are honored to have the opportunity to craft this premium product for you.

Standard Configuration Versus Same Side Reverse System

The Raised Flue Pan Set diagrams below illustrate the difference between a Raised Flue Pan Set with and without Same Side Reverse. On the standard configuration, you can reverse the flow of sap in the front pan by turning it 180º. In contrast, the Same Side Reverse System allows you to change direction of flow without ever moving the pan or dealing with plugs. You would simply swing the handles of two specialized Ball Valves.

The purpose of reversing the flow in the front pan is to eliminate the build-up of sediments on the floor of the pan. The frequency in which you will need to reverse the flow is dependent upon the speed at which sediments are being deposited the floor of the front pan. Typical volume of sediment varies greatly from region to region.

Standard Configuration vs Same Side Reverse System

Freight Shipping

Note that the speed of freight shipping is dependent on our current inventory, the destination, the weather and also our freight carriers’ current load volumes. Please provide a commercial shipping address if possible. We will let you know if we foresee any problems. Contact us if you would like more information.

If shipping internationally, please contact us for a quote.
