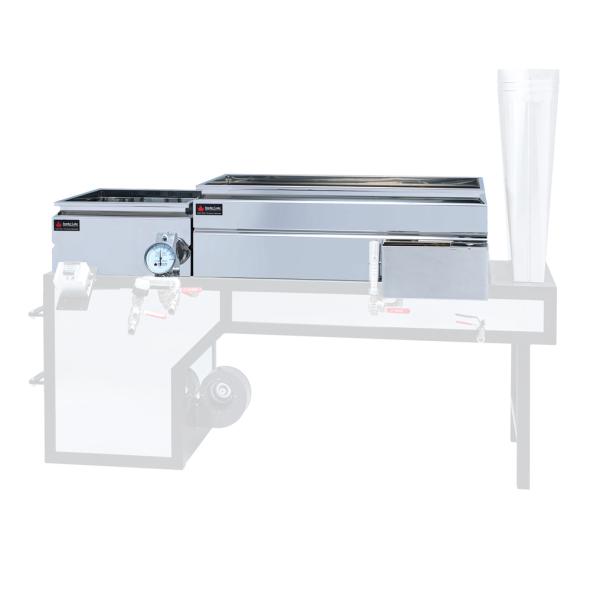

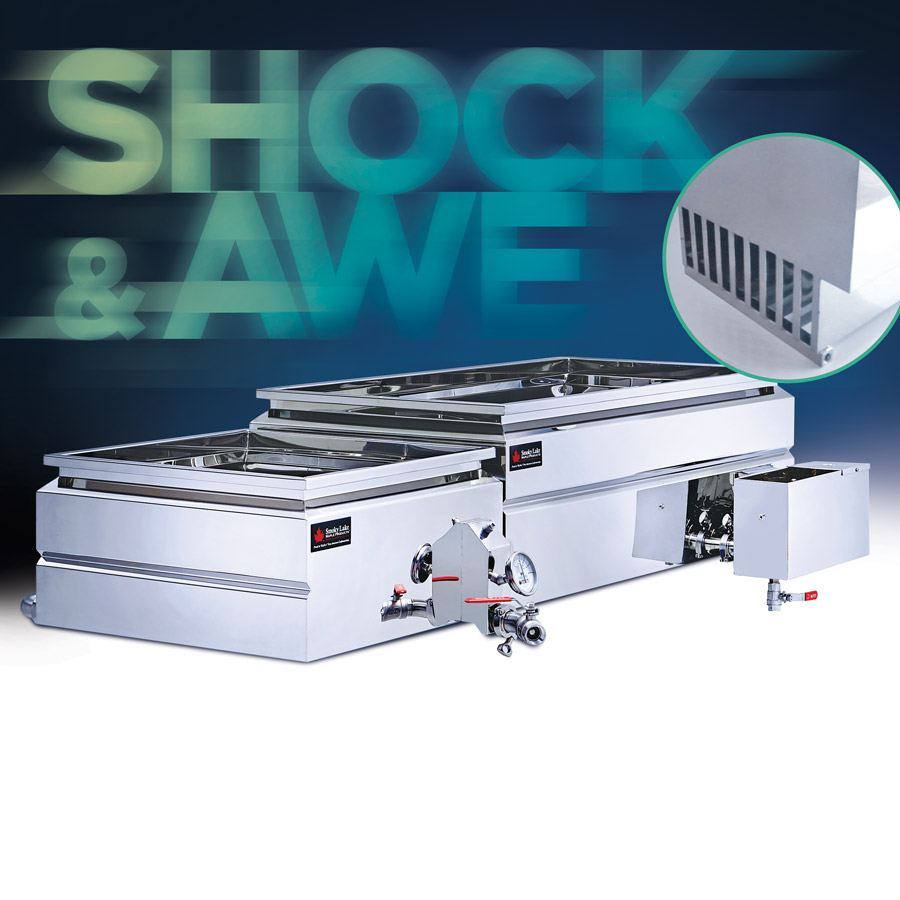

Drop Flue Pan Set
360 Path of the Sap Through a Standard Drop Flue Pan Set Drop Flue Pan Set Corsair with a Drop Flue Pan Set

High Output Drop Flue Pan Set, Standard Configuration – Customize It!

From: $3,750.00

Free Shipping in USA. Contact us for discounted Canada Shipping.

Bundle Pricing Available. See Discounts Below.

This is a handcrafted item made just for you!

SKU: SL-HODROP Category:


Drop Flue Pan Set with Call Outs


  • High Output Flue Pan
    • Flues = 7″ Deep
    • Wall Height = 14″ above the flues
    • Contoured Walls
      (Adds strength to the pan)
    • 360º Built-In Handles
    • Stainless steel divider
      (Promotes steady, continuous flow and more regular draw-offs)
    • Float Box w/Fittings & Drain
    • Drain Manifold
      (Completely drains all of the flues)
  • Cross Flow Front Pan
    • Positive Draw-Off Boxes with Angled Accessory Ports
    • Built-in 360º Handles
    • Optimal Rear Syrup Draw-Off
      (Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
    • Reversible
      (Turn the pan 180º to reverse flow. Learn more.)
    • Structurally Formed-in Syrup Pan Dividers
  • Free Accessory Pack Included!
    (We’ll dress your pan’s ports with premium hardware! More details below.)
  • Additional Features and Benefits
    • 22 ga. Mirror Finish Stainless Steel
    • Smooth, Hemmed Edges
    • Lifetime Limited Warranty on TIG Welds
    • Handcrafted in USA
    • Quick Start Guide

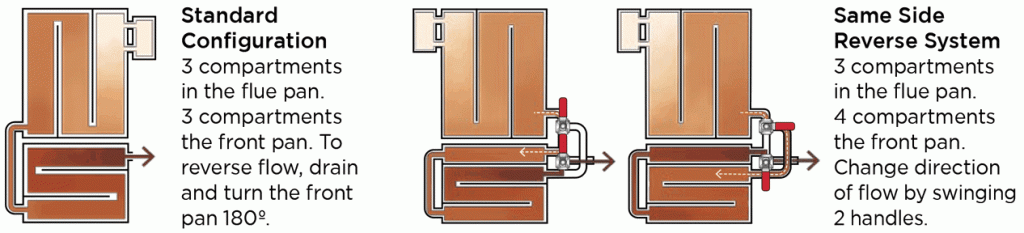

Standard Configuration Versus Same Side Reverse System

The Drop Flue Pan Set diagrams below illustrate the difference between a Drop Flue Pan Set with and without Same Side Reverse. (Please note that the configuration of the 2′ x 4′ Pan Set with SSR is slightly different, but still follows the same general concept as below.)

On the standard configuration, you can reverse the flow of sap in the front pan by turning it 180º. In contrast, the Same Side Reverse System allows you to change direction of flow without ever moving the pan or dealing with plugs. You would simply swing the handles of two specialized Ball Valves.

The purpose of reversing the flow in the front pan is to eliminate the build-up of sediments on the floor of the pan. The frequency in which you will need to reverse the flow is dependent upon the speed at which sediments are being deposited the floor of the front pan. Typical volume of sediment varies greatly from region to region.

Standard Vs SSR on a Drop Flue Pan Set
