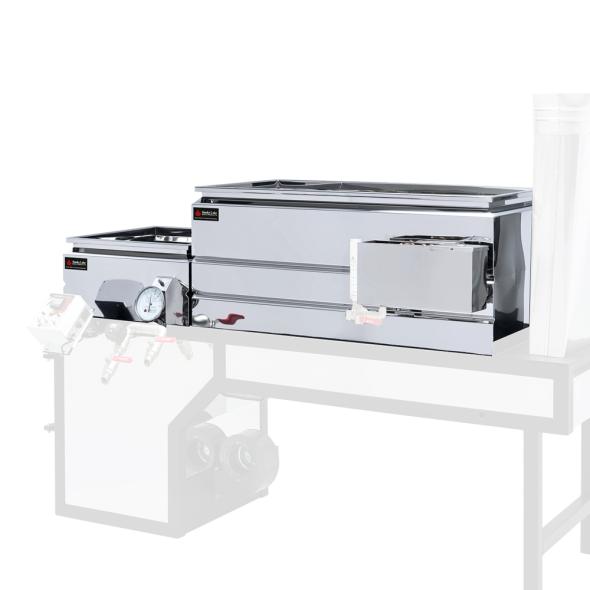

Raised Flue Pan Set
360 Raised Flue Pan Set Path of Sap in a Raised Flue Pan Set with Standard Configuration

High Output Raised Flue Pan Set, Standard Configuration – Customize It!

From: $3,800.00

Free ShippingFREE SHIPPING in the continental USA.*
*Please contact us for international shipping quotes.


Discounts for Local PickupDISCOUNTS AVAILABLE for local pick up.
See our discounts list or contact us for details.


*Timing and shipping details.


STANDARD FEATURES

  • High Output Flue Pan
    • Flues = 7″ Deep
    • Wall Height = 21″
      (Includes a contoured profile for added strength)
    • 360º Built-In Handles
    • Stainless steel divider
      (Promotes steady, continuous flow and more regular draw-offs)
    • Inlet Float Box w/Fittings & Drain
      (Controls sap depth in the Flue Pan. Customize your drain port accessory in the options below.)
  • Cross Flow Front Pan
    • Positive Draw-Off Boxes with Angled Accessory Ports
    • Built-in 360º Handles
    • Optimal Rear Syrup Draw-Off
      (Finished syrup is drawn off at the rear of the Syrup Pan where the heat is most concentrated)
    • Reversible
      (Turn the pan 180º to reverse flow. Learn more.)
    • Structurally Formed-in Syrup Pan Dividers
    • 12″ wall height
    • Transfer Float Box w/Fittings & Drain
      (Controls sap depth in the Front Pan. Customize your drain port accessory in the options below.)
  • Free Accessory Pack Included!
    (We’ll dress your pan’s ports with premium hardware! More details below.)
  • Additional Features and Benefits
    • 22 ga. Mirror Finish Stainless Steel
    • Smooth, Hemmed Edges
    • Lifetime Limited Warranty on TIG Welds
    • Handcrafted in USA
    • Quick Start Guide

SKU: SL-HORF Categories: , ,

Description

Standard Configuration Versus Same Side Reverse System

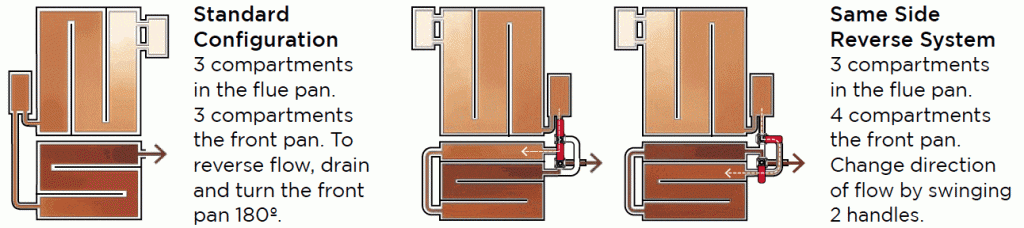

The Raised Flue Pan Set diagrams below illustrate the difference between a Raised Flue Pan Set with and without Same Side Reverse. On the standard configuration, you can reverse the flow of sap in the front pan by turning it 180º. In contrast, the Same Side Reverse System allows you to change direction of flow without ever moving the pan or dealing with plugs. You would simply swing the handles of two specialized Ball Valves.

The purpose of reversing the flow in the front pan is to eliminate the build-up of sediments on the floor of the pan. The frequency in which you will need to reverse the flow is dependent upon the speed at which sediments are being deposited the floor of the front pan. Typical volume of sediment varies greatly from region to region.

Standard Configuration vs Same Side Reverse System


Freight Shipping

Note that the speed of freight shipping is dependent on our current inventory, the destination, the weather and also our freight carriers’ current load volumes. Please provide a commercial shipping address if possible. We will let you know if we foresee any problems. Contact us if you would like more information.

I’m so sorry we cannot ship these pans to Canada for free. Please contact us for a shipping quote.
